7 Text printing
37

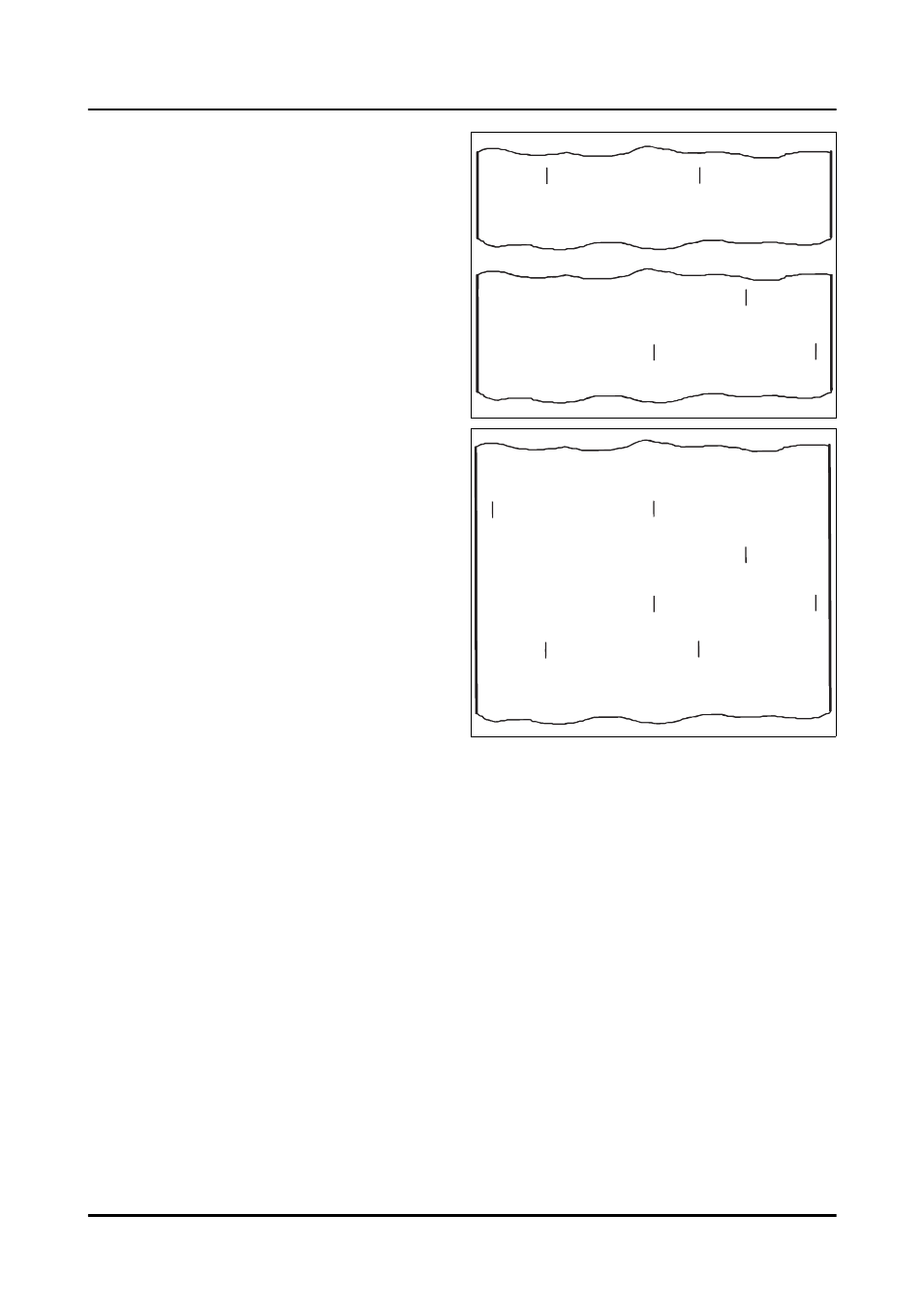

Example:
a) upper chart
- channel 1
- range: 0 — 100 mm
- relay limits at 200 and 500 °C
b) lower chart
- channel 2
- restricted range: 50 — 100 mm
- relay limit at 300V
Triggered scaling print-out
To start the triggered scaling print-out the
key
F
must be held down for at least 4 sec.
Alternatively, the triggered scaling print-out
can be started using a logic input.
The print-out covers the scaling of all chan-
nels whose writing status is switched on.
Print-out follows the same arrangement as
described under “cyclic scaling print-out”.
-200.0 +325.0 +850.0
Ch.1 (blue): Furnace 1 °C
Ch.2 (red): Generator V
+200.0 +400.0
+200.0 +400.0
Ch.2 (red): Generator V
-20.00 +40.00
Ch.3 (green): Outside temp. °C
-200.0 +325.0 +850.0
Ch.1 (blue): Furnace 1 °C
