5 Starting up

19

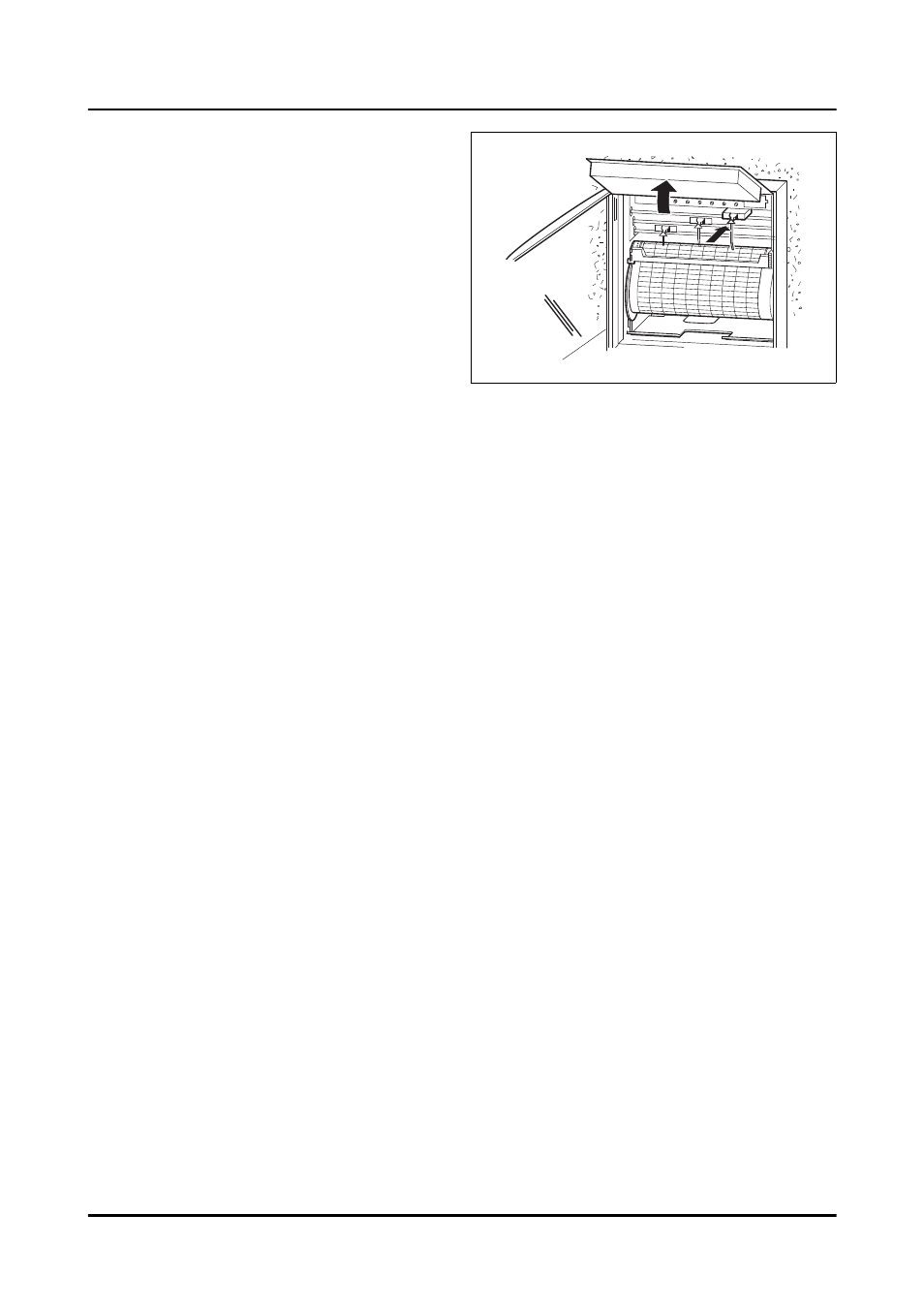

5.4 Fitting the fibre pens

* Open the recorder door

* Stop recording

(e.g. press key

S

)

* Swing display upwards

* Slide the fibre pen into the holder up to

the stop

* Swing display down again until it clicks

home.
