4 Electrical connection
16

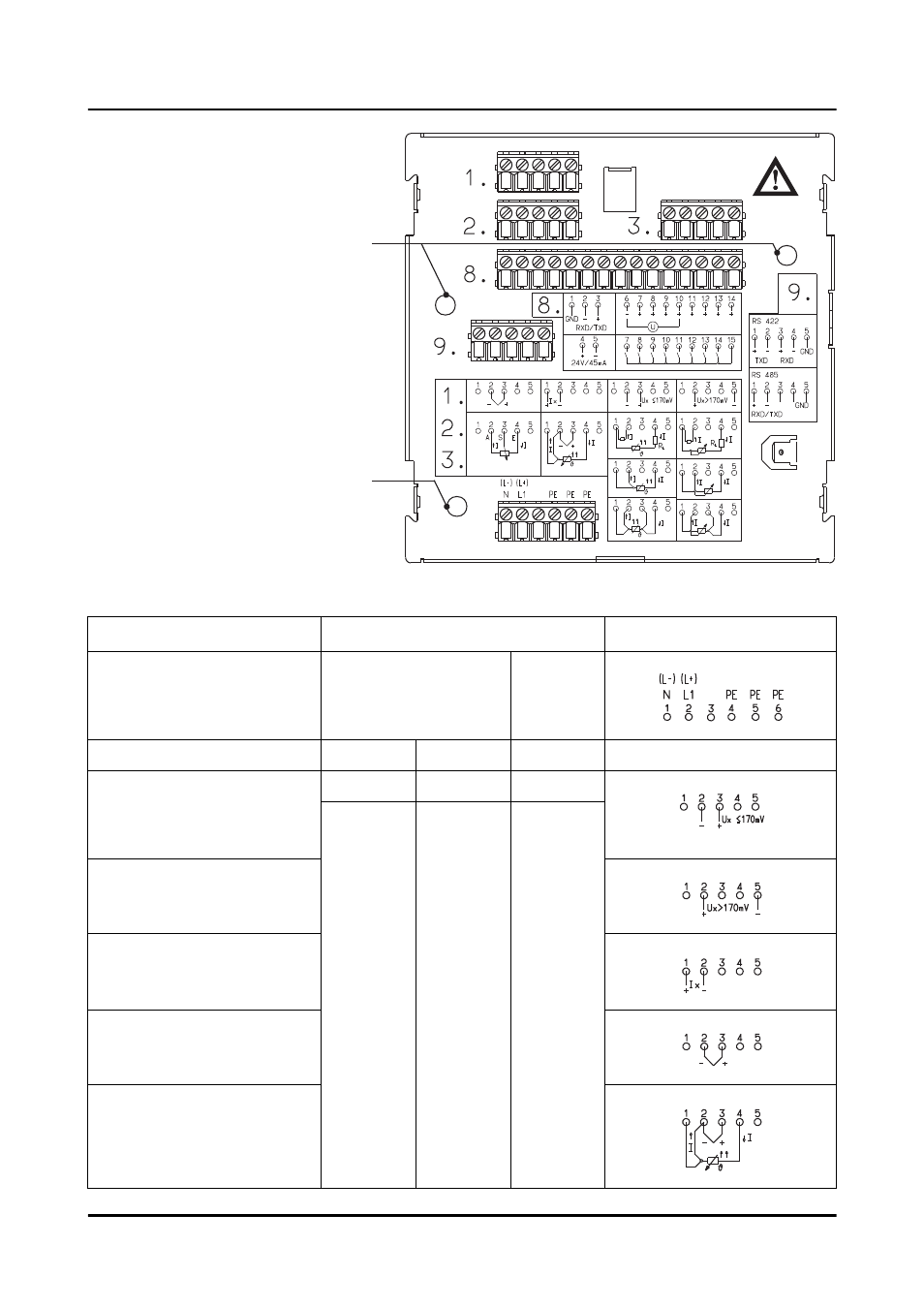

4.2 Connection diagram
Rear view with screw-clamp
connectors
V
The electrical connection
must only be carried out
by properly qualified
personnel.
Terminals
Supply as on label N neutral
L1 line
PE potential earth
N (L-)
L1 (L+)
PE
Analogue inputs Input 1 Input 2 Input 3
Field Field Field
Voltage input
up to 170 mV
1. 2. 3.
Voltage input
above 170 mV
Current input
Thermocouple
Thermocouple with external
Pt 100 cold junction
recesses for cable-tie with foot for tension r
elief
