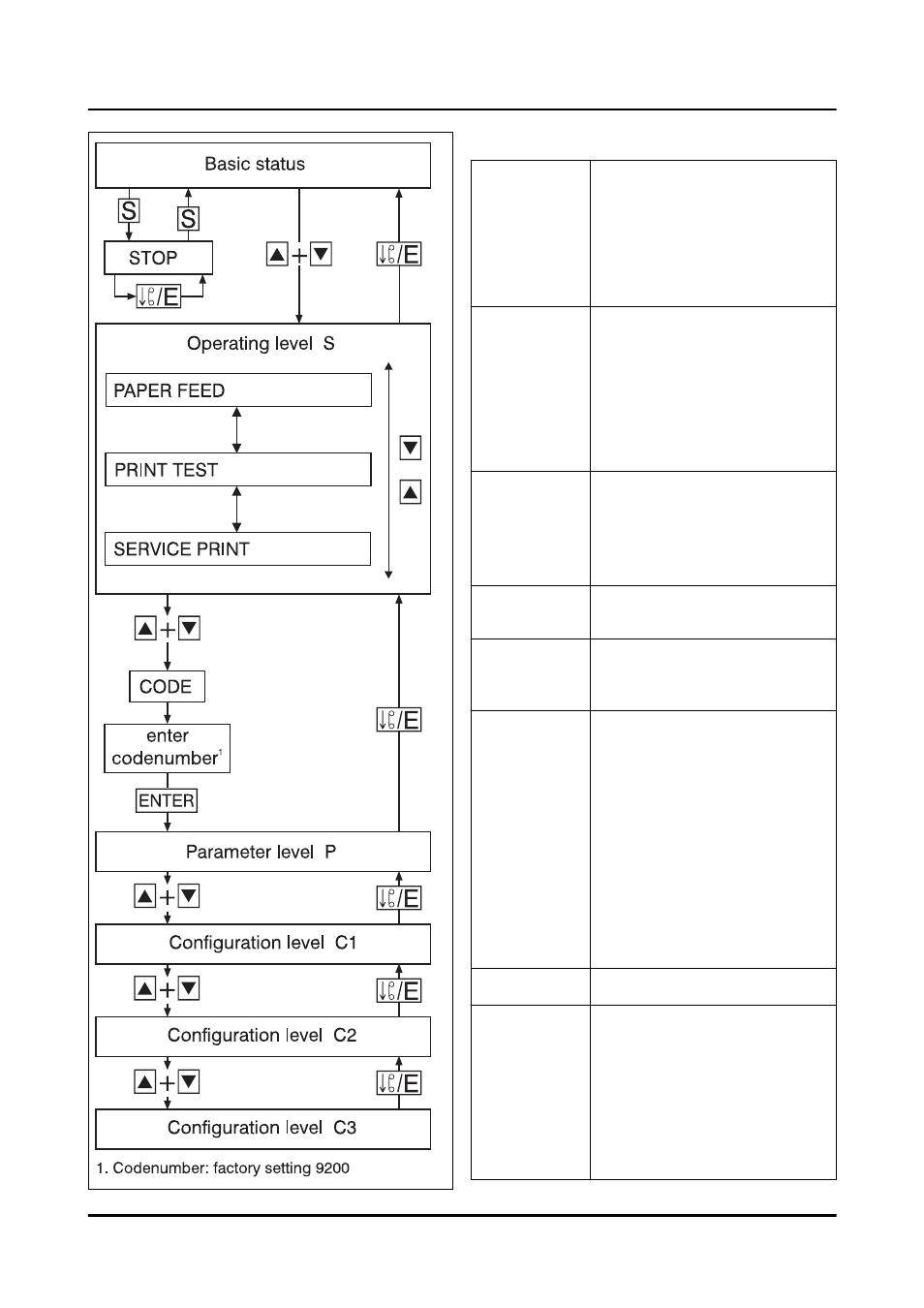

Levels and key functions
Key functions
e
- Chart fast forward when
recording is stopped
(in basic status)
- Aborting parameter input
(Exit)
- Level change backwards
S
- Start/Stop recording
- Decimal place selection
during value input
- For text input:
rapid character selection
(jump to “ ”,“0”,“A”,“a”,
“°”, “²”,“А”,“а”)
F
- Function key
for special function
(hold down at least 4sec)
factory setting:
scale printout
l,r
- Cursor left/right
(select digit)
l+r
- Deactivate/activate
display of status/error
messages
h,R
- Select display:
- date and time
- channel measurements
- bargraph
- system states
- Parameter selection
- Channel selection
- Value selection
from value table
- Increment/decrement
current digit
h
+
R
- Level change forwards
E
- Initiate parameter input
- Enter input
- Acknowledge error
message
- Activate/ deactivate
static display
(in basic status)
