3 Installation
14

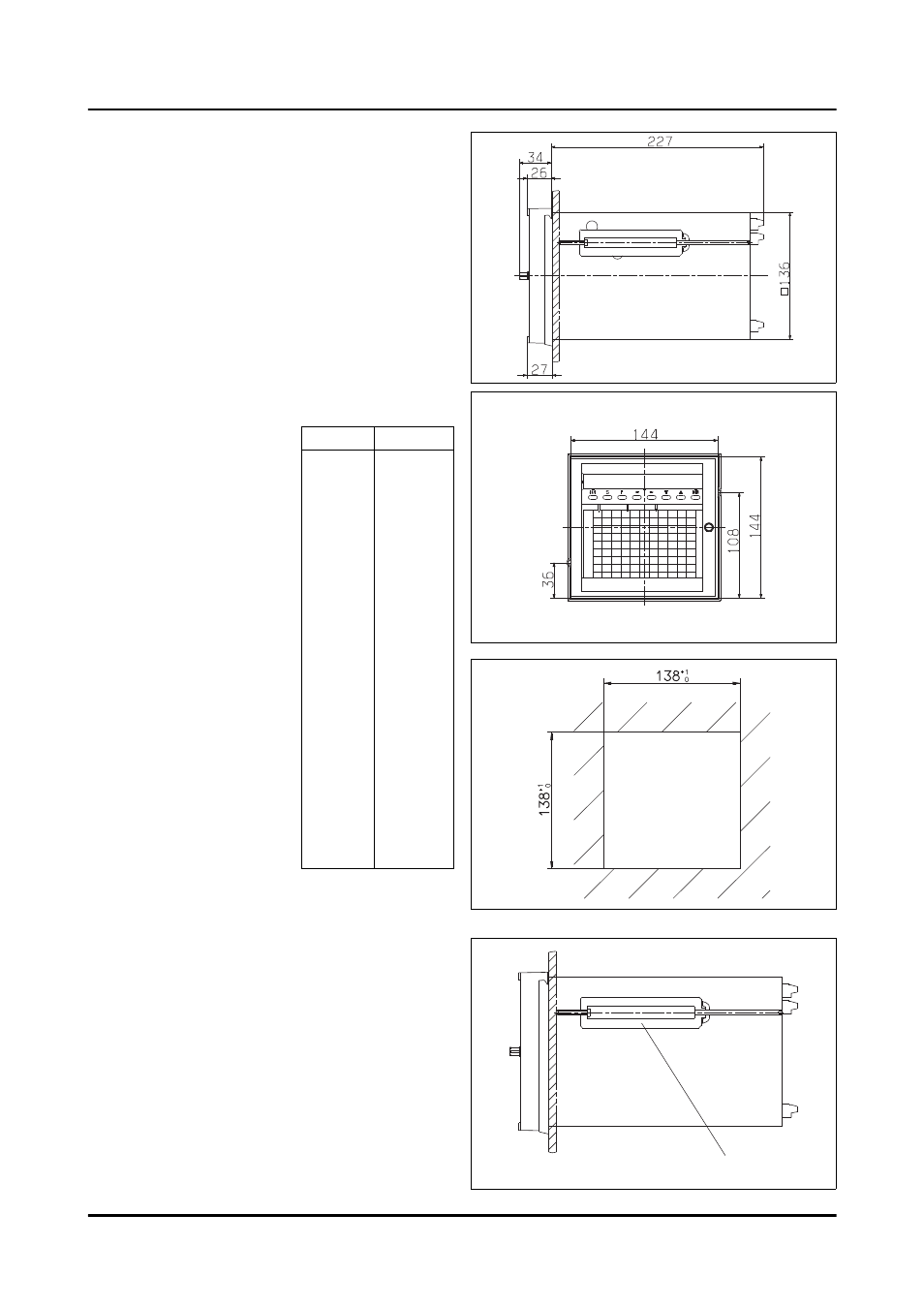

3.2 Fitting in position
Side view
(dimension 26 increased to 27 when using
the IP65 seal)
Front view
Panel cut-out
* Insert the recorder from the front into
the panel cut-out.
* From the back of the panel, hook the
mounting brackets (1) into the cut-outs in
the sides of the housing. The flat bracket
faces must lie against the housing.
* Place the brackets against the rear of the
panel and tighten them evenly.
(1)
mm inch
22.5 0.89
30 1.2
36 1.42
60 2.4
100 3.94
108 4.25
110 4.33
120 4.72
136 5.35
138 +1 5.43 +0.04
144 5.67
227 8.94
16 m 53 ft
32 m 107 ft
1.5 mm
2
0.0025 in
2
2.5 mm
2
0.004 in
2
