4 electrical connection, 1 notes on installation, Electrical connection – JUMO 706021 LOGOLINE 500d Line Recorder Operating Manual User Manual

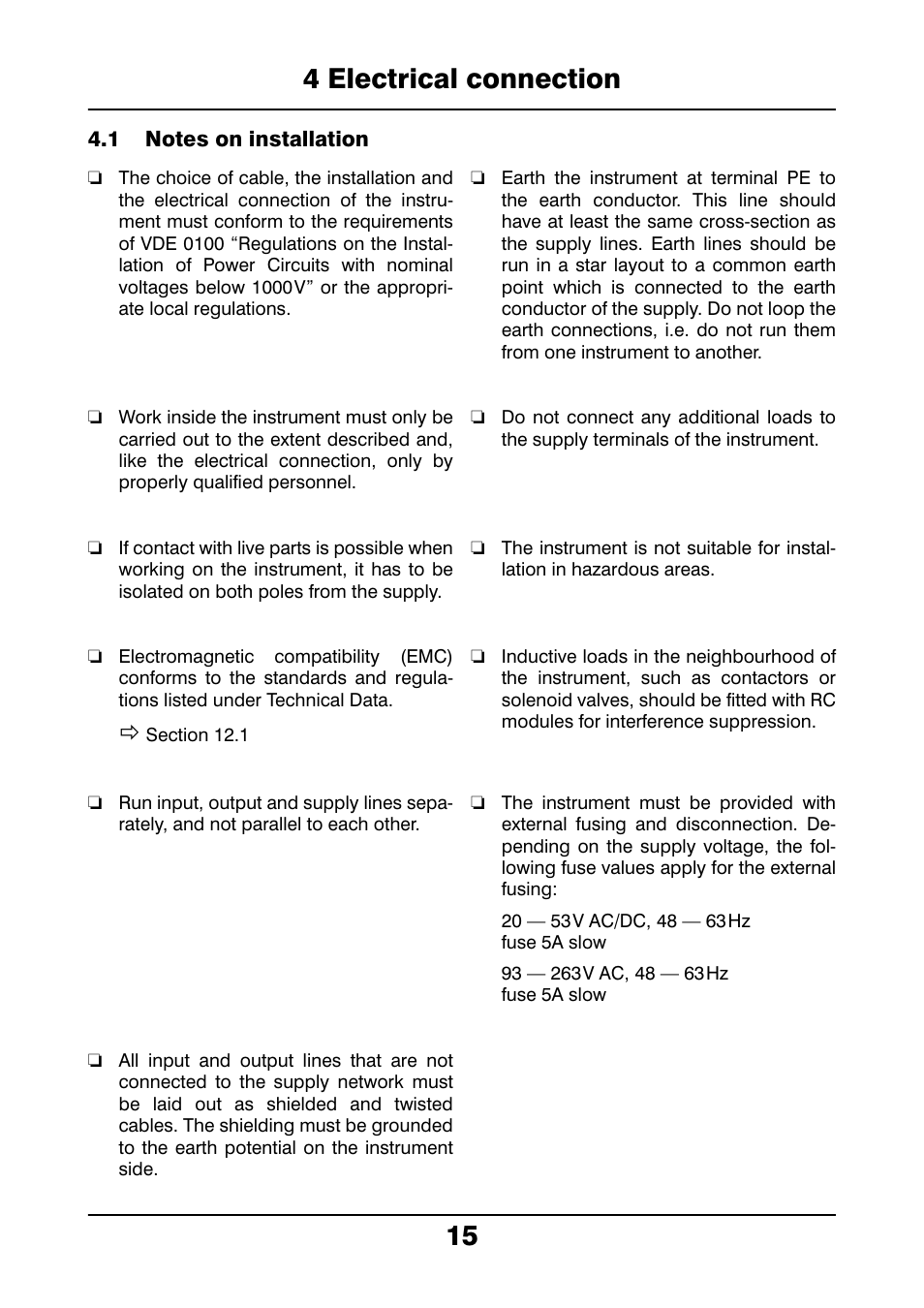

Page 15: Notes on installation, 15 4 electrical connection
