40
• Using V/f Control Mode
Vector control mode is preset at the factory.
Control mode selection (n002): 0: V/f control mode (initial setting)
1: Vector control mode
Adjust motor torque by using “V/f pattern” and “full-range automatic torque boost”.

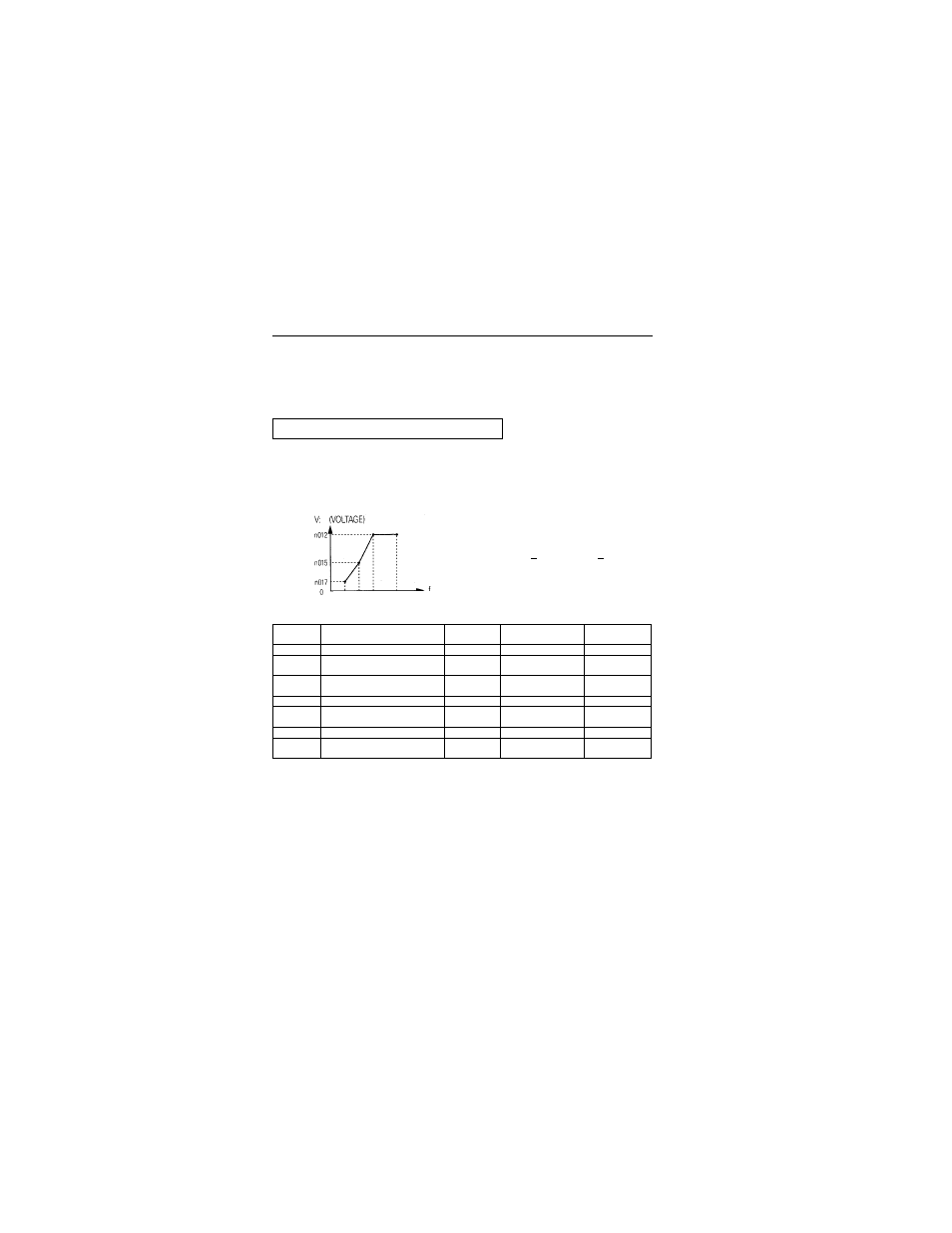

• V/f pattern setting
Set V/f pattern by n011 to n017 as described below. Set each pattern when using a
special motor (high-speed motor, etc.) or when requiring special torque adjustment
of machine.
Be sure to satisfy the following
conditions for the setting of n011
to n017.
n016 < n014 < n013 < n011
If n016 = n014 is set, the set
value of n015 is disabled.
Adjusting torque according to application
Parameters
No.
Name Unit Setting range Initial Setting
n011 Max. output frequency 0.1Hz 50.0 to 400.0Hz 60.0Hz
n012 Max. voltage 1V
1 to 255.0V
(0.1 to 510.0V)
230.0V
(460.0V)
n013
Max. voltage output frequency
(base frequency)
0.1Hz 0.2 to 400.0Hz 60.0Hz
n014 Mid. output frequency 0.1Hz 0.1 to 399.9Hz 1.5Hz
n015 Mid. output frequency voltage 1V
0.1 to 255.0V
(0.1 to 510.0V)
12.0V
(24.0V)
n016 Min. output frequency 0.1Hz 0.1 to 10.0Hz 1.5Hz
n017 Min. output frequency voltage 1V
1 to 50.0V
(0.1 to 100.0V)
4.3V *
(8.6V)
n016 n014 n013 n011 (frequency)
* 10.0V for 200V class 7.5/10hp (5.5/7.5kW)
20.0V for 400V class 7.5/10hp (5.5/7.5kW)
NOTE: Values with parentheses indicate 400V class.
