26
• Wiring the Control Circuit
Only basic insulation is provided for the control circuit terminals.
Additional insulation may be necessary in the end product.

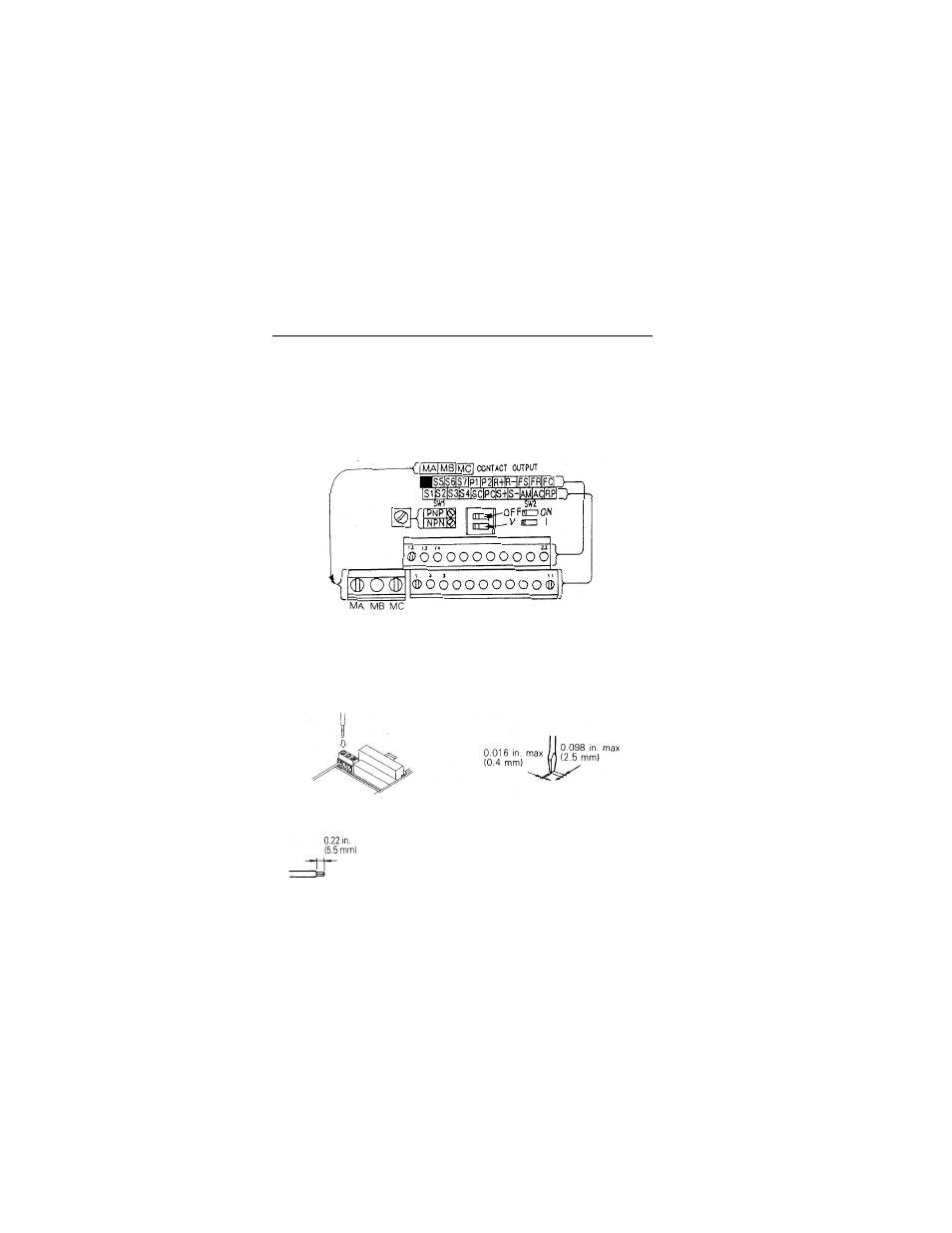

• Control Circuit terminals
Pass the cable through wiring hole and connect. Be sure to mount all the covers on the
original position.
* SW1 can be changed according to sequence input
signal (S1 to S7) polarity.
0V common: NPN side (factory setting)
24 common: PNP side
Refer to pages 67 and 76 for SW2
Wiring the control circuit terminals
Insert the wire into the lower part of the terminal block and connect it tightly with a
screwdriver.
Wire sheath strip length must be 0.22 in. (5.5mm).
Screwdriver blade width
