69 FESTO ELGL-es 0904NH

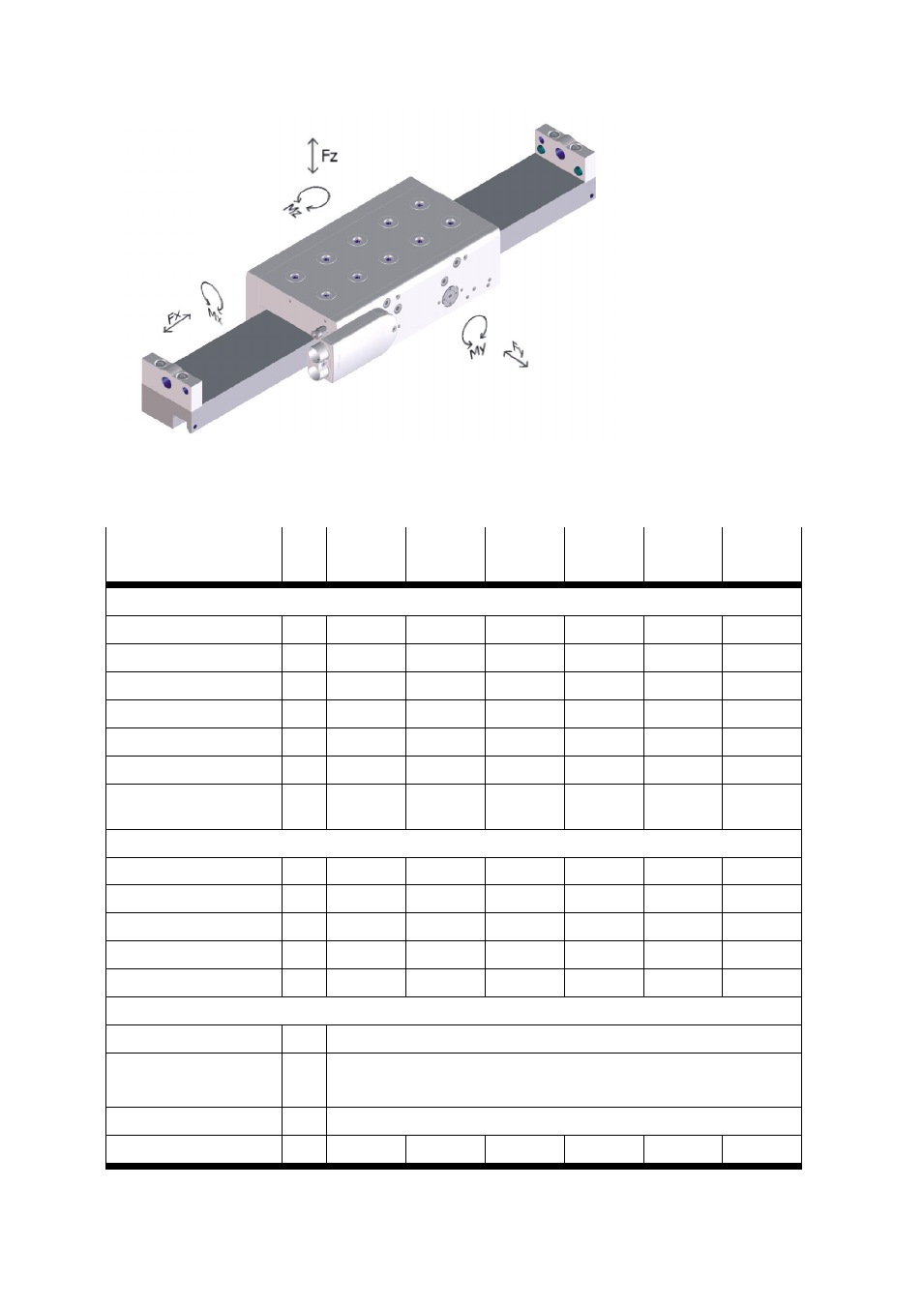

Fig. 32
ELGL-
30-…-S ELGL-
64-…-S ELGL-
64-…-M ELGL-
120-…-S ELGL-
120-…-M ELGL-
120-…-L
Mechanical properties during static load
Load F
B z B
N 160 700 1,000 1,300 1,700 2,500
Tensile force F
B z
B
N 35 140 220 260 300 400
F
y
N 600 600 600 600 600 600
M
x
Nm 1.2 8 10 14 21 28
M
y
Nm 7 20 28 45 60 80
M
z
Nm 20 20 30 20 30 50
Resistance to shifting
with air pressure N 5 12 15 17 25 34
Moving properties
Continuous feed force F
B x B
N 44 110 160 217 282 330
Peak feed force N 44 119 164 240 310 450
Max. speed m/s 4 4 4 3.4 3.2 2
Max. acceleration m/s
P
2
P
15.4 29.4 29.1 47.6 40.4 50.2
Repetition accuracy µm ±10 ±10 ±10 ±10 ±10 ±10
Certification
RoHS Compliant with Directive 2002/95/EC of the European Union
CE Compliant with EU Low-voltage Directive
Compliant with EU EMC Directive
C-TICK Compliant
