53 FESTO ELGL-en 0904NH

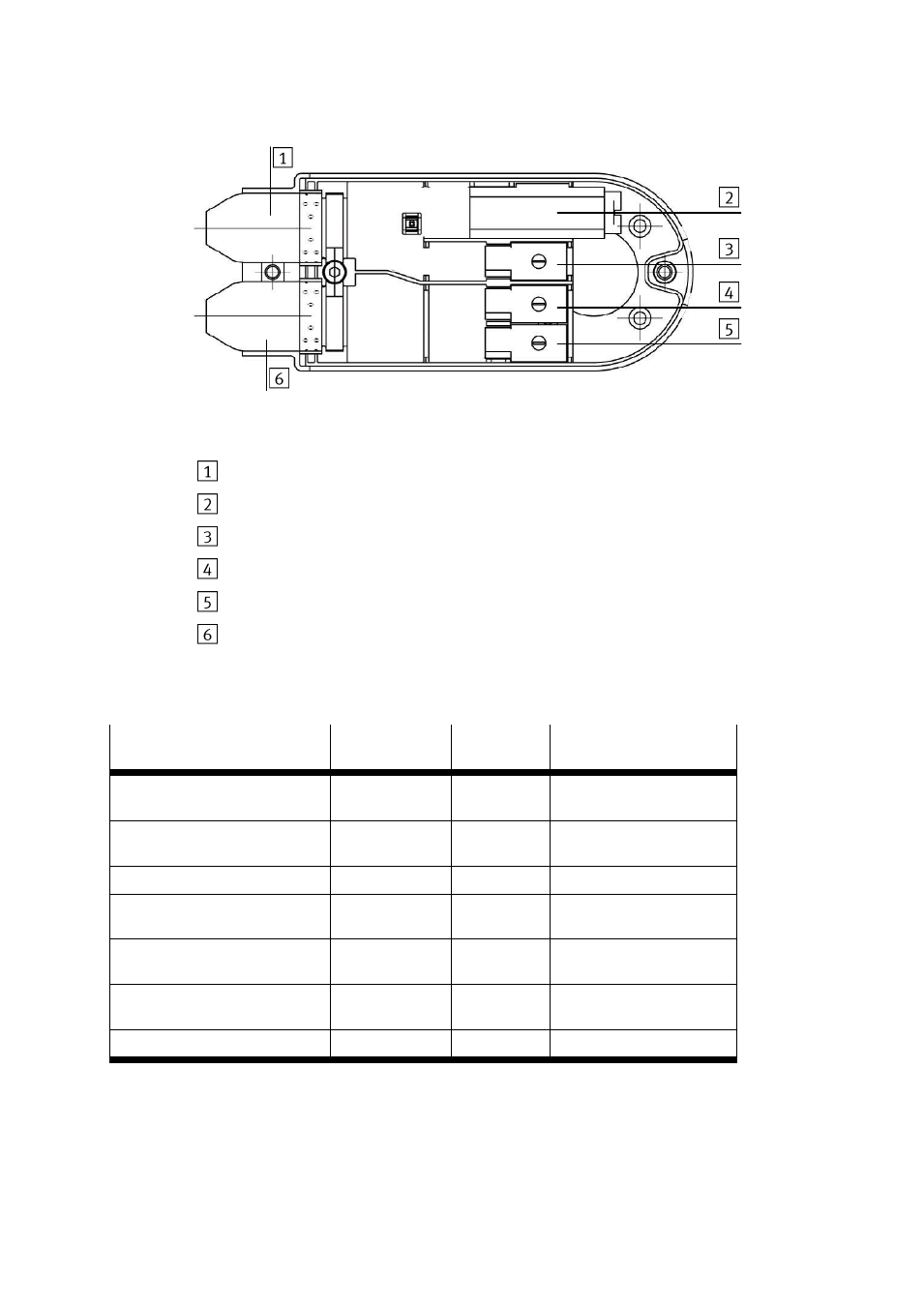

Motor cable NEBM-T1G7-E-…-N-LE7
Motor cable connection (black block)
Motor cable connection (blue block)
Sensor cable connection (red block)
Sensor cable connection (yellow block)
Encoder cable NEBM-T1G8-E-…-N-S1G15
Pin allocation for sensor cable BISS interface (red block)
Designation
Wire colour Plug connector
Data output +
(BISS/RS485) SLO+ Green Red pin 1
Data output -
(BISS/RS485) SLO- Yellow Red pin 2
Displacement encoder GND GND Black Red pin 3
Displacement encoder VCC
(+5VDC±10%) VCC Brown Red pin 4
Pulse input -
(BISS/RS485) MA- Red Red pin 5
Pulse input +
(BISS/RS485) MA+ Orange Red pin 6
Screened Screened Screened Screening contact
Fig. 28
