6.5 Mounting the limit/reference switches

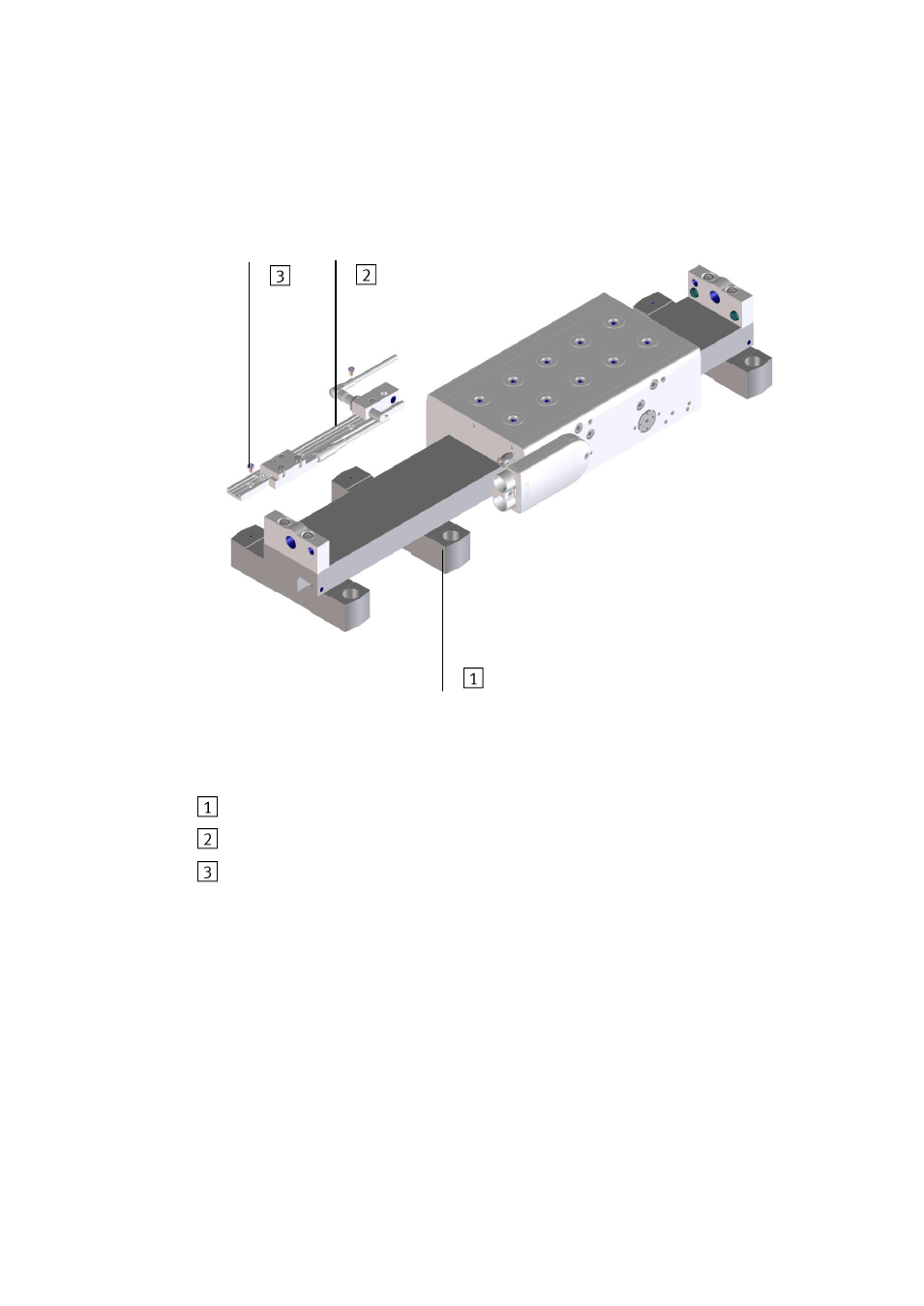

Fig. 27
Foot mounting EAHF-…
Sensor retainer EAPR-…
Mounting screws
(max. tightening torque M3= 1.2 Nm)
An EAPR sensor retainer kit is available for mounting the limit and reference
switches. Using the included mounting material, the sensor retainer can be
mounted on the various foot mountings for the ELGL drives.
The sensor retainer is designed for using inductive Festo proximity sensors
(see Accessories) and enables the sensor elements to be easily adjusted by
implementing the adjustable clamping components.
