44 FESTO ELGL-en 0904NH

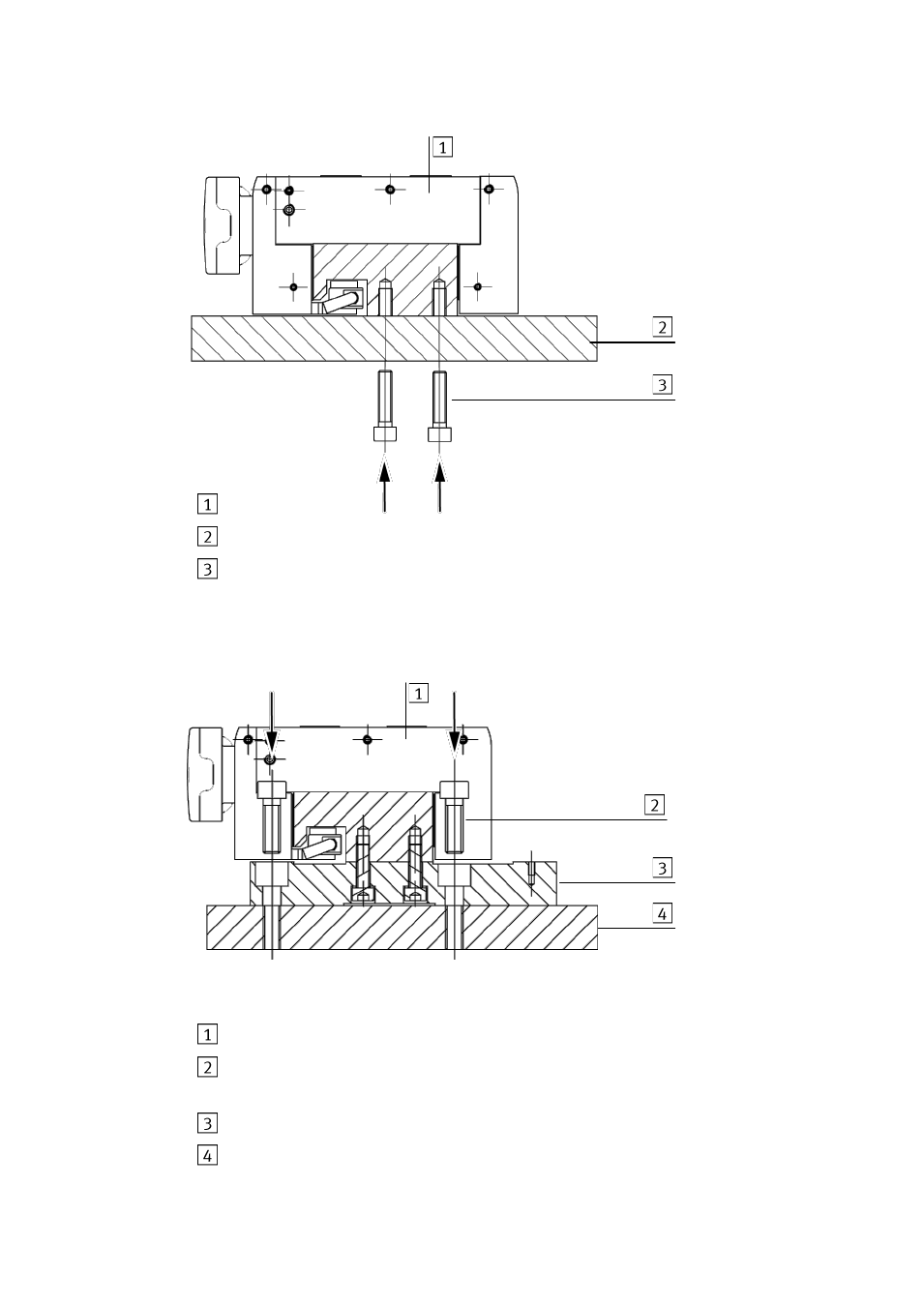

Direct mounting
Fig. 19
Linear axis
Base
Socket head screw M6 (M4), max. screw-in depth 12 mm (not in scope of
delivery; max. tightening torque M6=9 Nm , M4=2.9 Nm )
Foot mounting
Fig. 20
Linear axis
Socket head screw M8 (not in scope of delivery; max. tightening torque
M8=24 Nm)
Foot mounting EAHF-L1-…-P
Base
