46 FESTO ELGL-en 0904NH
6.2 Mounting of objects on the slide
Objects are mounted directly on the top of the slide or via an adapter plate.
The slide must not be distorted or bent.
Objects are normally fastened symmetrically on the slide using 4 screws. How-
ever, a 3-point support is more favourable for fastening the objects without
distortion if the design allows it and it is practical.
For easier handling, the slides are equipped with screw terminals. These are
uniformly surface-ground to provide an even and punctiform support.
Note
The mounting threads on the slide have a maximum screw-in depth of 9 mm.
The maximum screw-in depth must be observed. Exceeding the maximum
screw-in depth results in the slide being inoperable and/or severely damaged.
For fault-free functioning and lasting freedom from wear, observe the forces
and torques specified in the technical data.

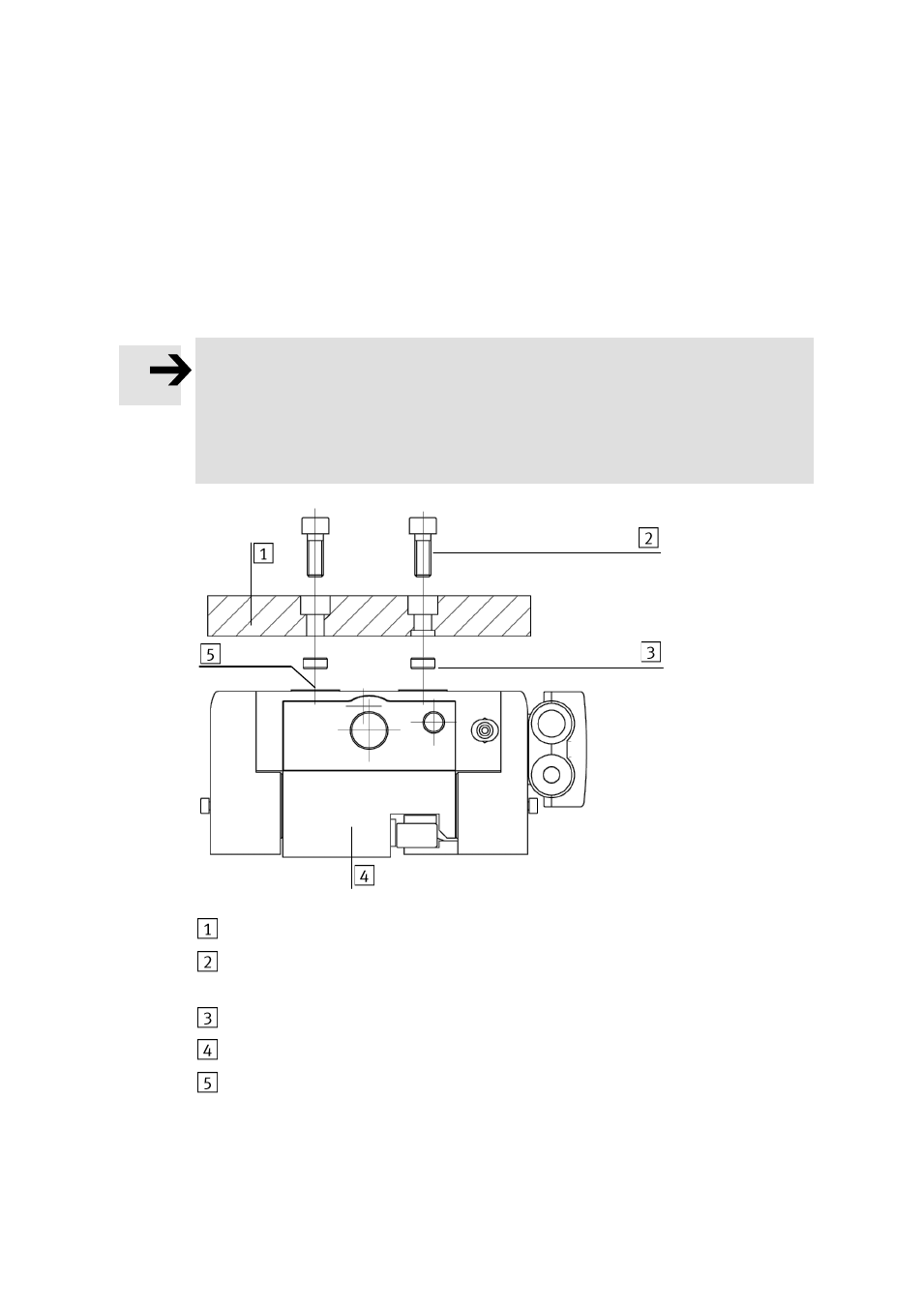

Fig. 23
Mounting piece
Socket head screw M6, maximum screw-in depth 9mm (not in scope of de-
livery; max. tightening torque M6=9 Nm)
Centring sleeve ZBH-9 (150927)
Linear axis
Mounting thread M6x9 (max. tightening torque M6=9 Nm)
