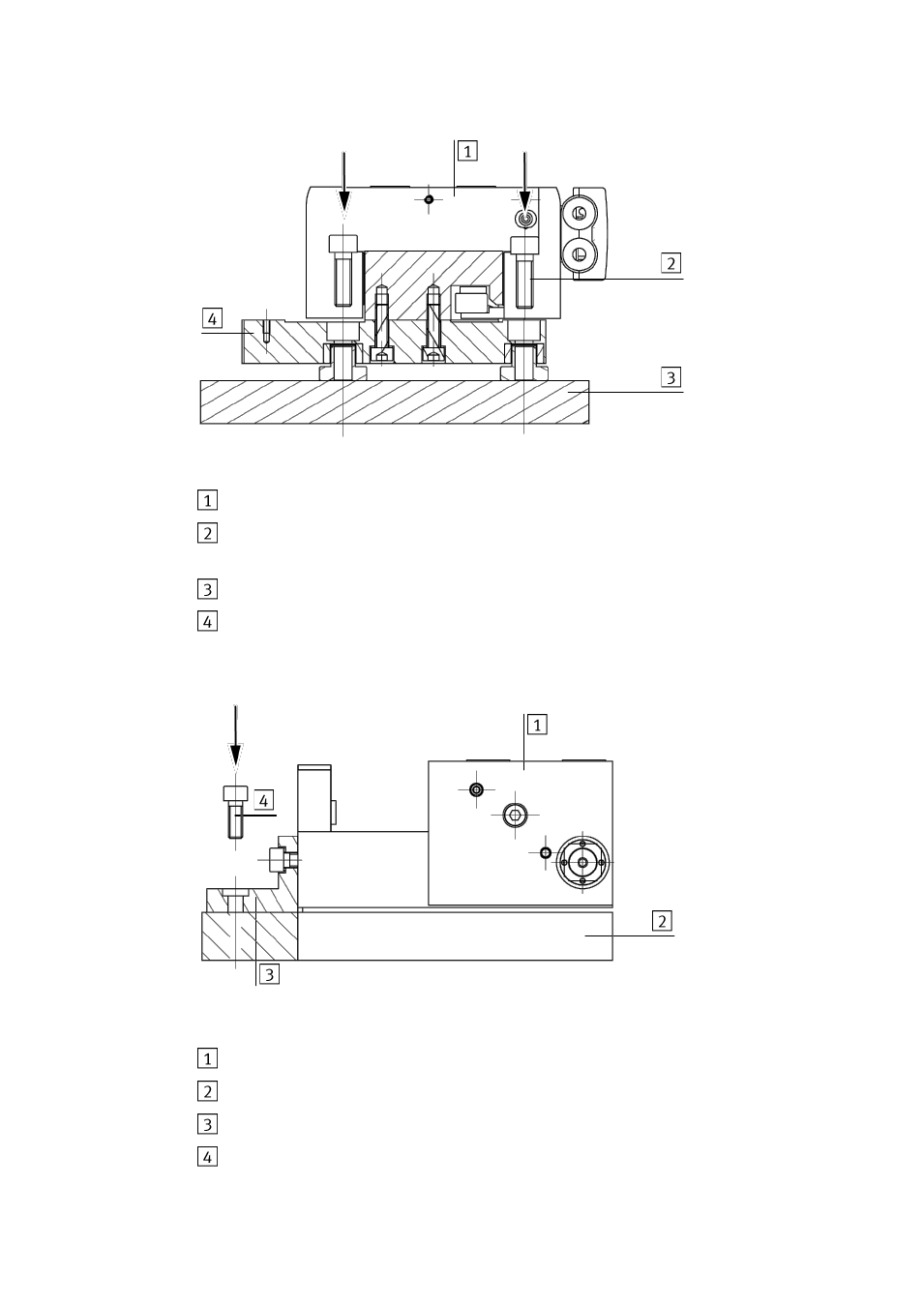

Foot mounting, adjustable
Fig. 21
Linear axis
Socket head screw M8 (not in scope of delivery; max. tightening torque
M8=24 Nm)
Base
Adjustable foot mounting EAHF-L1-…-PJ
Angled foot mounting
Fig. 22
Linear axis
Base
Foot mounting EAHF-L1-…
Socket head screw M6 (not in scope of delivery; max. tightening torque
M6=9 Nm)
