XL7 User Manual

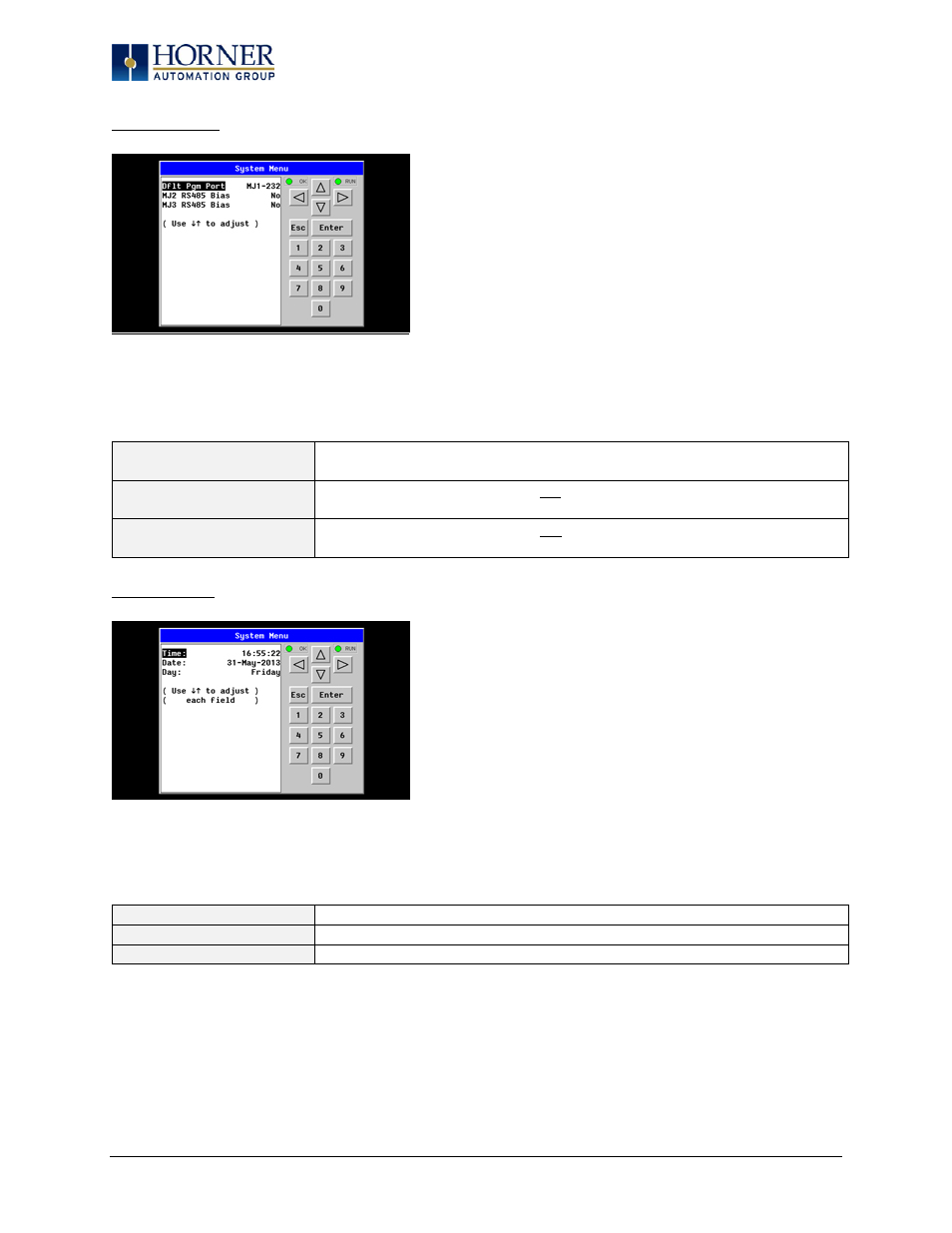

Set Serial Ports
The Set Serial Ports Sub-Menu displays three System Settings, all of which may be edited, and one
optional item. For the Dflt Pgm Port System setting, only MJ1-232 can be selected, unless a Modem
(XMC) COM module is installed.
Dflt Pgm Port
MJ1-232= MJ1 RS232 port is the default programming port
Modem= Modem COM module is the default programming port
MJ2 RS485 Bias
No = MJ2 RS485 bias resistors are not switched in
Yes = MJ2 RS485 bias resistors are switched in
MJ3 RS485 Bias
No = MJ3 R5485 bias resistors are not switched in
Yes = MJ3 R5485 bias resistors are switched in
Set Time/Date
The Set Time/Date Sub-Menu displays three System Settings. Time and Date may be edited, and Day is
automatically calculated from the Date setting. Note that Time and Date are split into three fields each,
all of which may be edited. Use ← or → to select a field and then use ↓ or ↑ to edit the field.
Time 16:09:49 = Current time (hours:minutes:seconds in 24-hour format)
Date 10-Jun-2013 = Current date (day-month-year)
Day Monday = Current day of week calculated from the Date setting
Page 58 of 110
