3.3 Mounting Orientation
3.3.1 XL7 OCS Mounting Clip

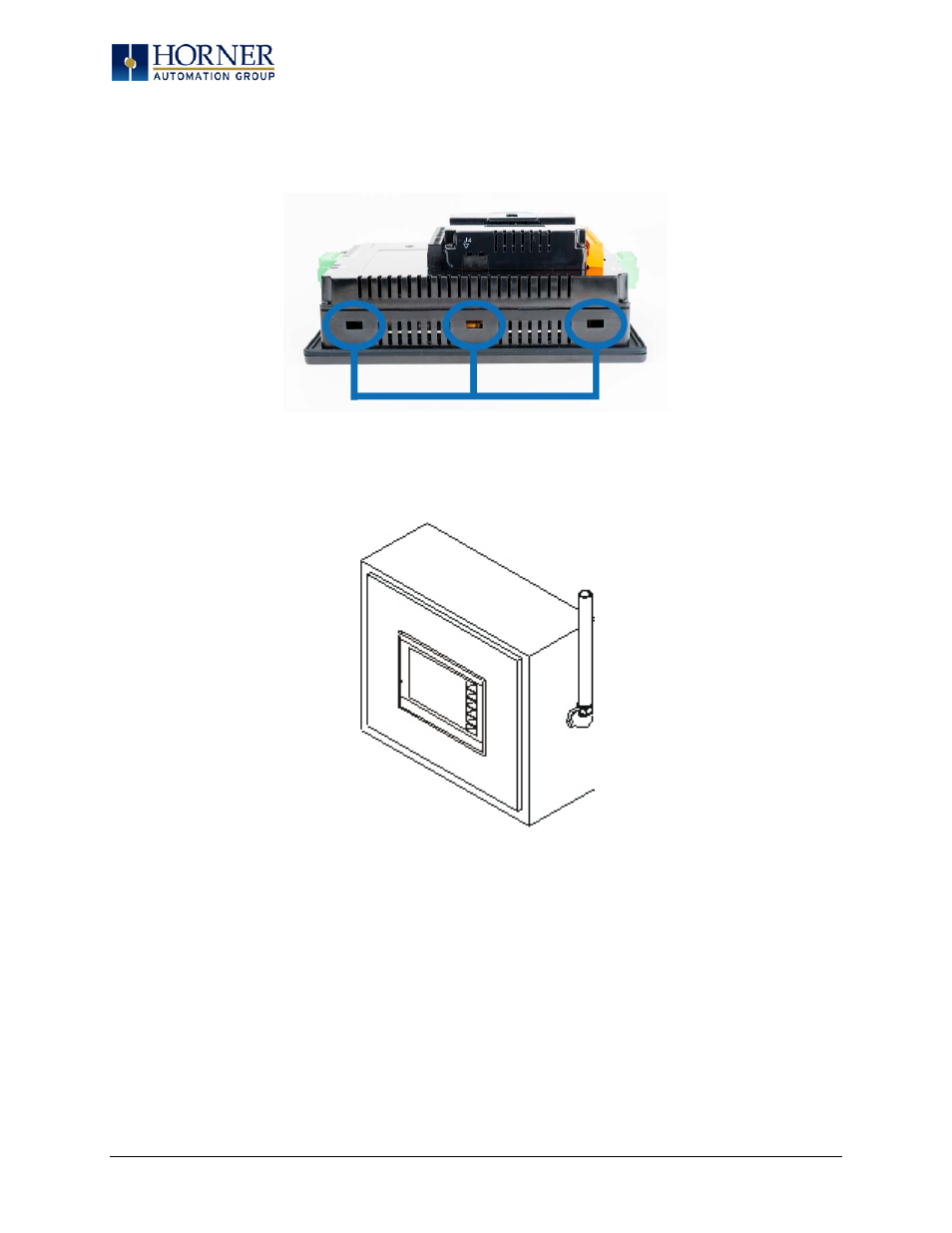

Figure 3.2 – XL7 OCS with Mounting Clips
3.3.2 XL7 OCS Mounting Orientation
Figure 3.3 – Orientation of XL7 OCS
NOTE: There are no orientation restrictions on the XL7 OCS. However, the above orientation provides for
optimum readability of the screen and ease of use of the keypad.
Slots for mounting clips
