XL7 User Manual
CHAPTER 12: SYSTEM SETTINGS AND ADJUSTMENTS
12.1 System Menu - Overview
The XL7 has a built-in System Menu, which lets the user view System Settings and makes adjustments.
To start the System Menu, press the SYSTEM key (or set %SR3 to 1), which will display the Main Menu.
Then use the ↓ and ↑ (Up Arrow or Down Arrow) keys to select a Main Menu item and press Enter
(Return Arrow) to display the item’s Sub-Menu.

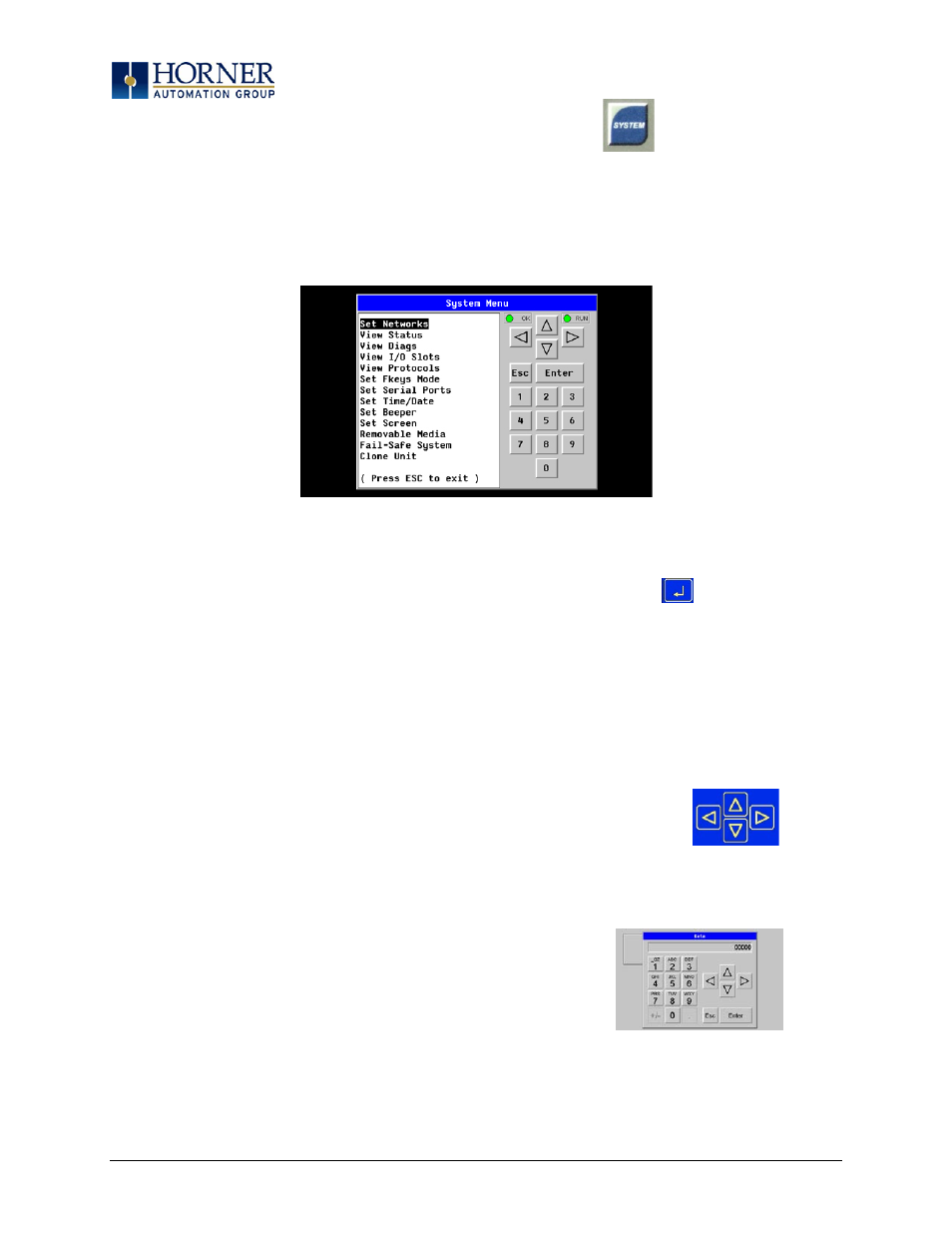

Figure 12.1 – System Menu (XL7) Screenshot
12.2 System Menu – Navigation and Editing
As mentioned above, the System Menu is started by pressing the System key on the XL7. Next press ESC
to exit the System Menu, or use ↓ and ↑ to select an item and press Enter to display the item’s
Sub-Menu.
A Sub-Menu generally shows a list of System Settings and their values. After opening a Sub-Menu, if any
of its System Settings are editable, the first System Setting that can be edited is highlighted. If desired,
the ↓ and ↑ keys can be used to select a different System Setting to be edited.
At this point, either press ESC to exit the Sub-Menu (returning to the Main Menu) or press Enter to edit
the highlighted System Setting. If Enter is pressed, the System Setting’s value will be highlighted,
indicating that it is ready to be modified.
When modifying a System Setting’s value, use either the arrow keys (← → ↓ ↑) or the
numeric keys, or the appropriate touch screen icons to select a new value.
The arrow keys are used to edit System Settings that have just a few possible values. Each time the
arrow key is pressed, a new possible value is displayed. When the desired value appears, press the
Enter key to save it; otherwise press the ESC key to cancel the edit.
The numeric keys are normally used to enter numeric System Settings.
In addition, to edit a single numeric digit, use the ← or → key to select the digit and then either press a
numeric key or use ↓ or ↑ to modify the digit. In any case, after entering the new desired value, press
the Enter key to save it; otherwise press the ESC key to cancel the edit.
