June 2004 DelphMap™ User's Manual
Settings for Pipe & Span Tracking
You use the Pipe Span Tracking tab of the DelphMap Settings dialog box
to choose the color scheme for three parameters affecting pipeline objects
found in imagery: Exposed, Half-Buried, or Buried. From the Pipe Span
Tracking
tab, click a Browse button (
) next to a parameter to get a
table of colors from which you can choose a color to be associated with that
parameter; then click OK to set the color. Figure 9 shows the dialog box.

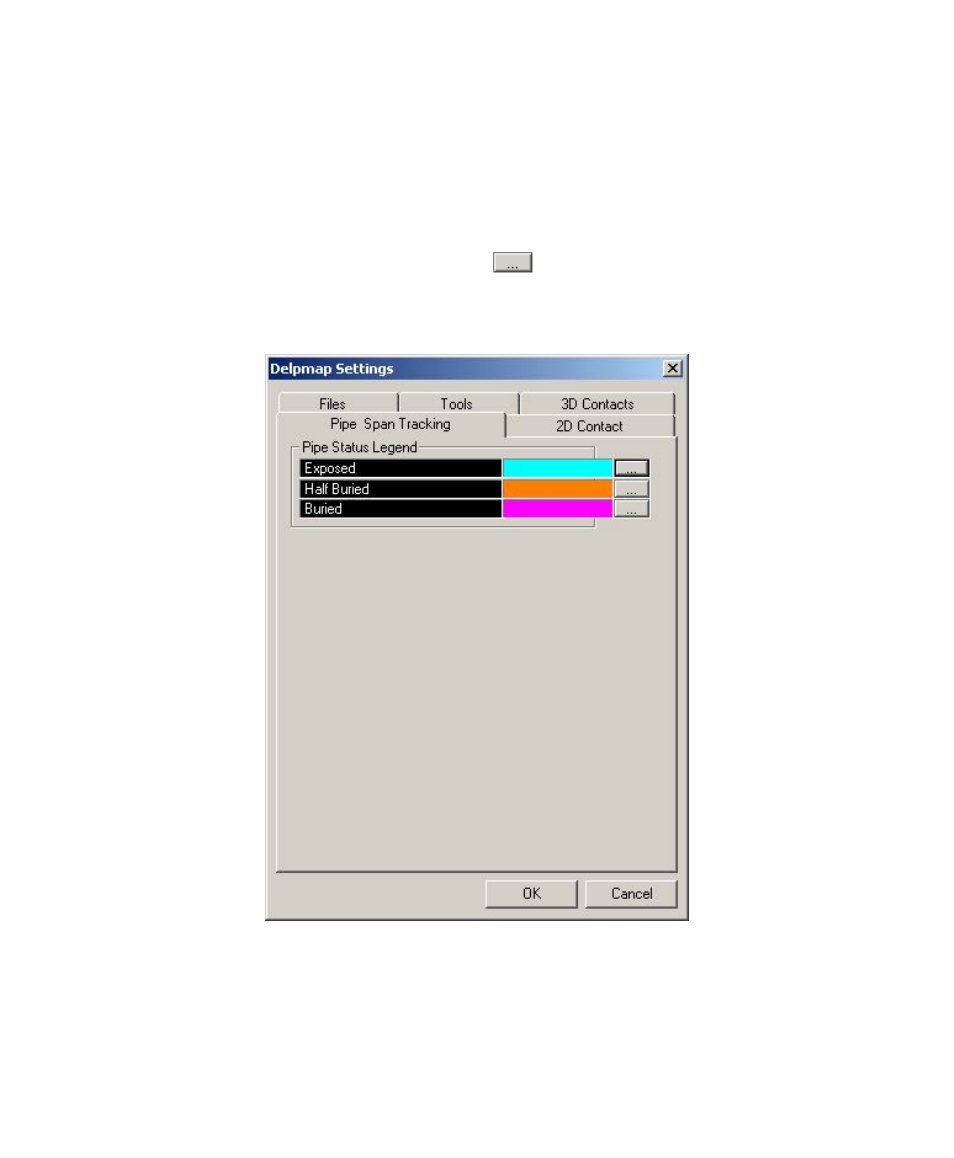

FIGURE 9. Pipe Span Tracking tab in DelphMap Settings dialog box
Chapter 2: Icons and Display Tools
32
