Alarm Reset (rSt1, rSt2)
Each alarm reset action may be independently configured.
LAtC - Latching
Auto - Automatic
Latched alarms require operator acknowledgment to reset the alarm
condition. The front panel buttons can be used to reset an alarm when the
controller is in the hidden mode (see hidden function mode). An Alarm
condition may also be reset via the RS-485 serial interface or by the user input.
Automatic (Auto) reset alarms are reset by the controller when the alarm
condition clears. The alarm reset figure depicts the reset types.

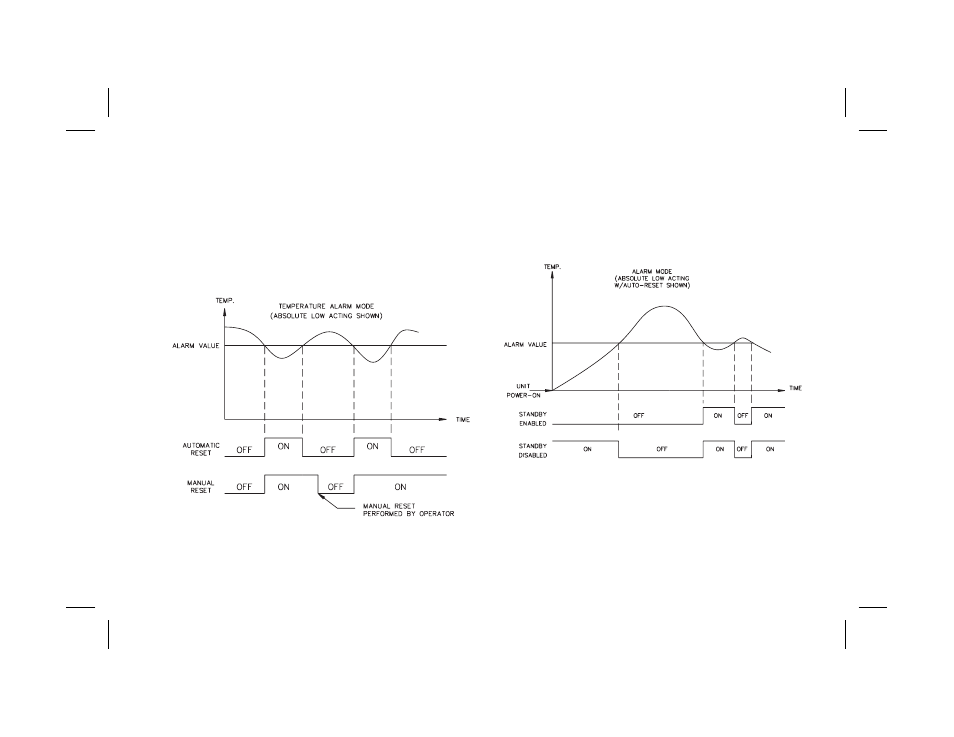

ALARM RESET SEQUENCE
Alarm Standby Delay (Stb1, Stb2)
The alarm(s) may be independently configured to exhibit a power-on,
standby delay which suppresses the alarm output from turning “ON” until the
temperature first stabilizes outside the alarm region. After this condition is
satisfied, the alarm standby delay is canceled and the alarm triggers normally,
until the next controller power-on. The alarm standby delay figure depicts a
typical operation sequence.
ALARM STANDBY DELAY SEQUENCE
Alarm Value (AL-1, AL-2)
The alarm values are either absolute (absolute alarms) or relative to the
setpoint value (deviation and band alarms). An absolute alarm value is the value
that is entered. A relative alarm value is offset from the temperature setpoint
value by the amount entered and tracks the setpoint value as it changes.
AL-1 and AL-2 - -999 to 9999
If the alarm action is set as a Band Alarm, then only a positive value can be
entered. AL-1 and AL-2 - 0 to 9999
