CONFIGURATION OF PARAMETERS
As supplied from the factory, the controller parameters have been
programmed to the values listed in the Quick Reference Tables. The user must
modify the values, if necessary, to suit the application.

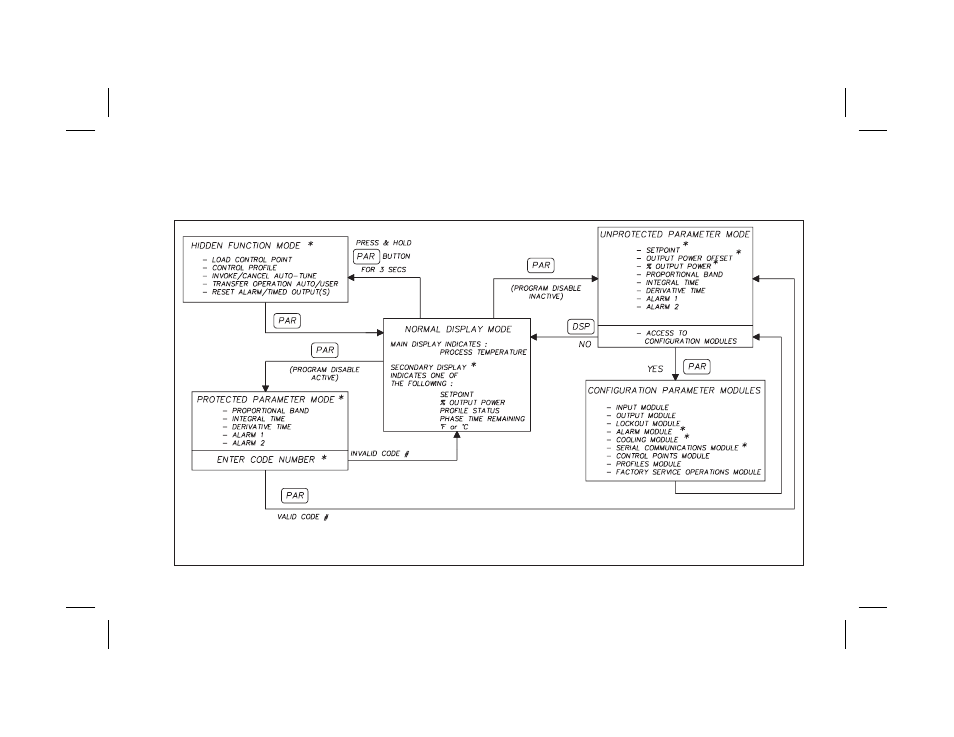

Operation and configuration of the controller is divided into five distinct
operational/programming modes to simplify the operation of the controller:
Normal Display Mode, Unprotected Parameter Mode, Protected Parameter
Mode, Hidden Function Mode, and Configuration Parameter Modules.
-22-
S These parameters may not appear due to
Note: In any mode or module, DSP returns
unit configuration or programming set-ups.
the controller to the normal display mode.
