Profile Stop Operation
Stopping a profile places the controller into the off mode.
When a profile is stopped, the active setpoint value is the old profile
setpoint value.
Stop Operation From The Profile Control Status Display
1. Verify the profile control status display (P-CS) is enabled in lockout
programming.
2. Press and hold the “up/down” buttons simultaneously for three seconds.
3. “OFF” appears in the secondary display and the profile is placed in the
off mode.
Stop Operation From The Hidden Mode
1. Verify profile access (PrAC) in the hidden mode is enabled in
lockout programming.
2. Press and hold the “PAR” button for three seconds to enter the
hidden mode.
3. Scroll to “Prun” (if necessary) by pressing the “PAR” button.
4. When “Prun” is displayed, use the “up/down” buttons to select stop (off).
5. Press the “PAR” button to stop the profile. The unit displays “End” in
the secondary display and stops the profile. If a selection is not made
within ten seconds, no action is taken.
Stop Operation On Power-Up
If power is interrupted or removed to the unit, the profile can be
programmed to automatically stop when power is restored. In the Setpoint
Profiles Module (8-Pr), each profile must be selected for the “Stop” option
(see power cycle status parameter for details).
Stop Operation Via The RS-485 Serial Option
A running profile can be stopped via the serial communications option.
Transmit the unit address, command letter, with the value identifier and
number via the serial port (see serial communication section for details).
Shown below is a typical command string.
Stop the currently running profile of TSC unit 6.
N6CU5*
Profile Advance Operation
Advancing a profile ends the currently active phase and begins the next
phase of the profile. The total run time of the profile is shortened by using
the advance operation. Profiles in the pause mode must have a continue
operation performed before an advance operation. The profile can be
advanced from the delay mode.
Advance Operation From The Profile Control Status Display
1. Verify the profile control status display (P-CS) is enabled in lockout
programming.
2. Press and hold the “up” button for three seconds.
3. “Adnc” appears in the secondary display and the profile advances to
the next phase.
-19-

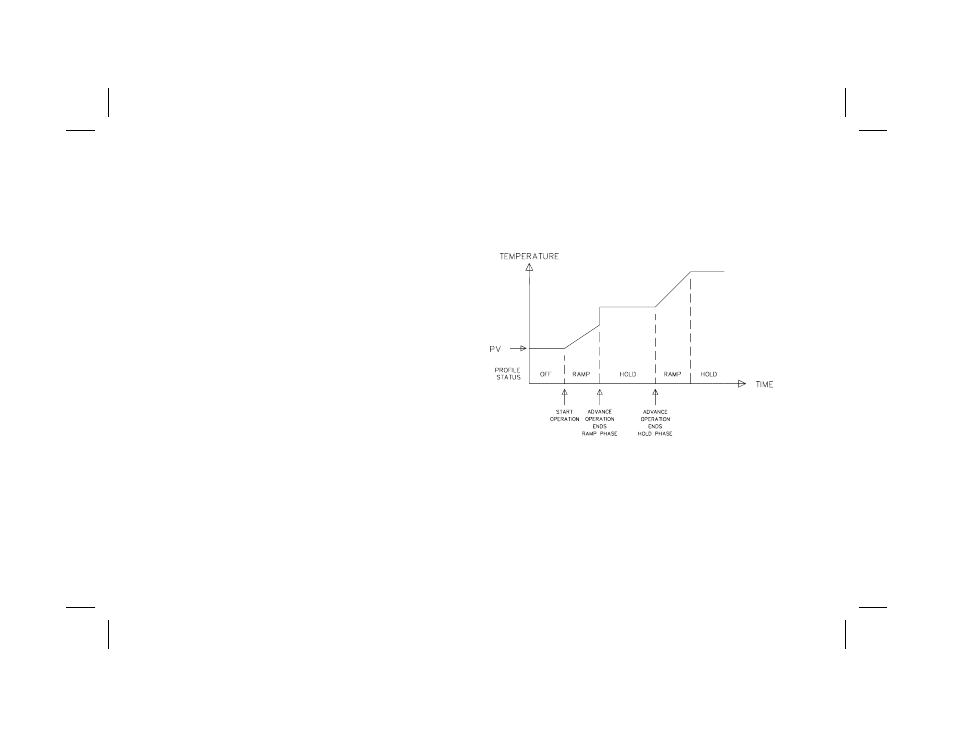

PROFILE ADVANCE FUNCTION
