User's Guide _______________________________________________________________________
66 ___________________________________________________________________ M210796EN-G
Display/Keypad (Optional)
The optional display and keypad combination enables shortcuts for
viewing current settings and status of the device, current measurement
values, and graph of the recent measurement history. Additionally the
device has user friendly, visible menu system for adjusting settings and
turning functions on or off.
Basic Display
Display shows you the measurement values of the selected quantities in
the selected units. You can select 1 ... 4 quantities for the basic display
(see section Changing Quantities and Units on page 101).

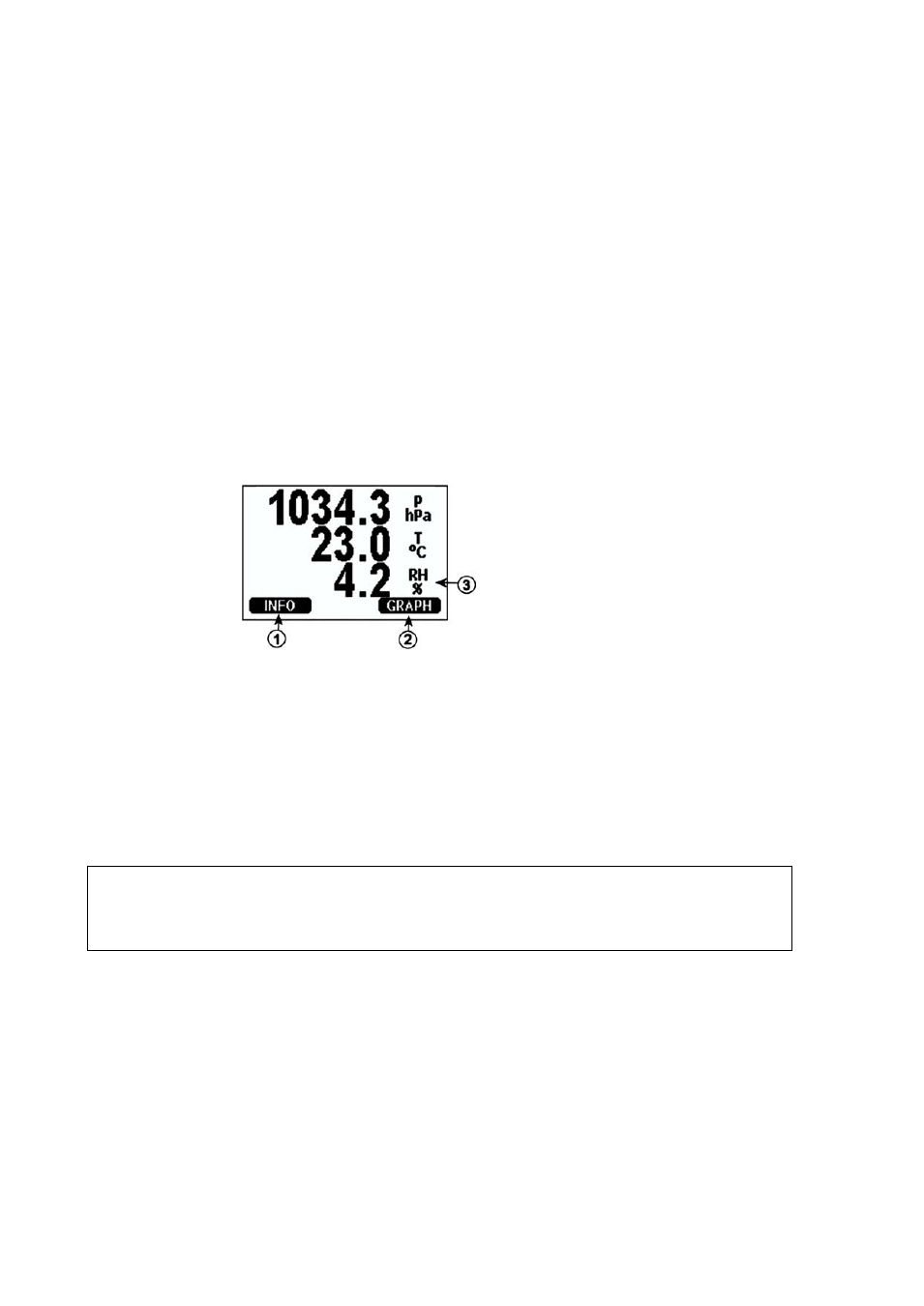

0601-014
Figure 38 Basic Display
The following numbers refer to Figure 38 above:
1 = INFO shortcut key; see section Information Display on
page 72.
2 = GRAPH shortcut key; see section Graphic History on page 70.
3 = Quantities selected for display
NOTE From any view, even in the absence of an EXIT button, a four-second
press on the right-hand function button takes you directly to the basic
display.
