Figure 25, Horizontal mounting of probe, Figure 26 – Vaisala PTU300 User Manual

Page 47: Vertical mounting of probe

Chapter 3 ________________________________________________________________ Installation

VAISALA ________________________________________________________________________ 45

0507-024

Figure 25

Horizontal Mounting of Probe

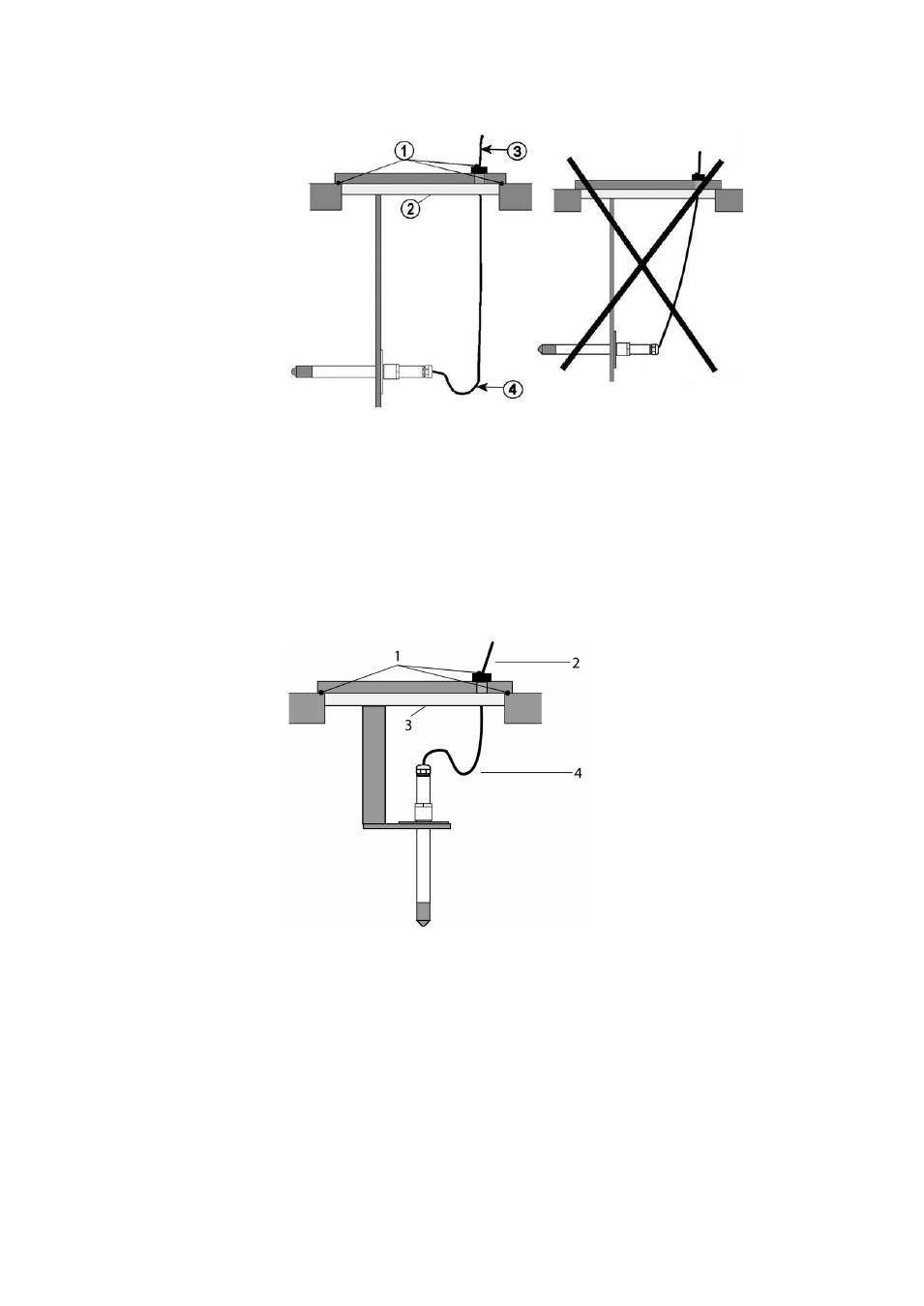

The following numbers refer to Figure 25 above:

1 =

To be sealed

2 =

To be insulated

3 =

Insulate the cable

4 =

Let the cable hang loosely. This prevents condensed water
running to the sensor along the cable.

0507-022

Figure 26

Vertical Mounting of Probe

The following numbers refer to Figure 26 above:

1 =

To be sealed

2 =

Insulate the cable

3 =

To be insulated

4 =

Let the cable hang loosely. This prevents condensed water
running to the sensor along the cable.
