Figure 9, Dimensions of the probe holder plate (mm/inch) – Vaisala PTU300 User Manual
Page 33
Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 31
The PTU301 short cable probe is designed to be wall mounted with the
probe holder plate (Vaisala order code 226252). The probe holder plate is
similar to the standard mounting plate, except for the probe holder at the
bottom.
0911-061

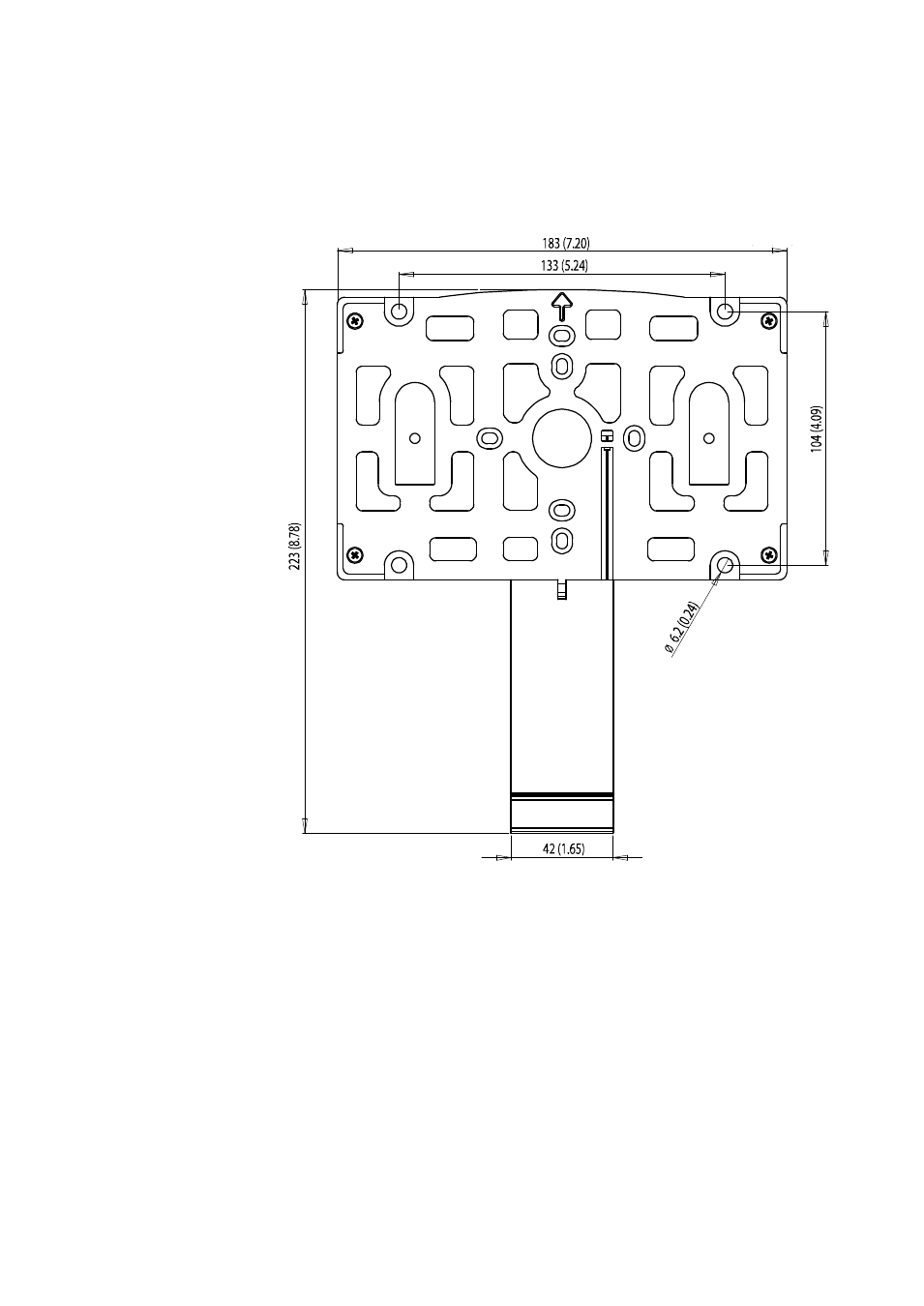

Figure 9
Dimensions of the Probe Holder Plate (mm/inch)
