User's Guide _______________________________________________________________________

26 ___________________________________________________________________ M210796EN-G

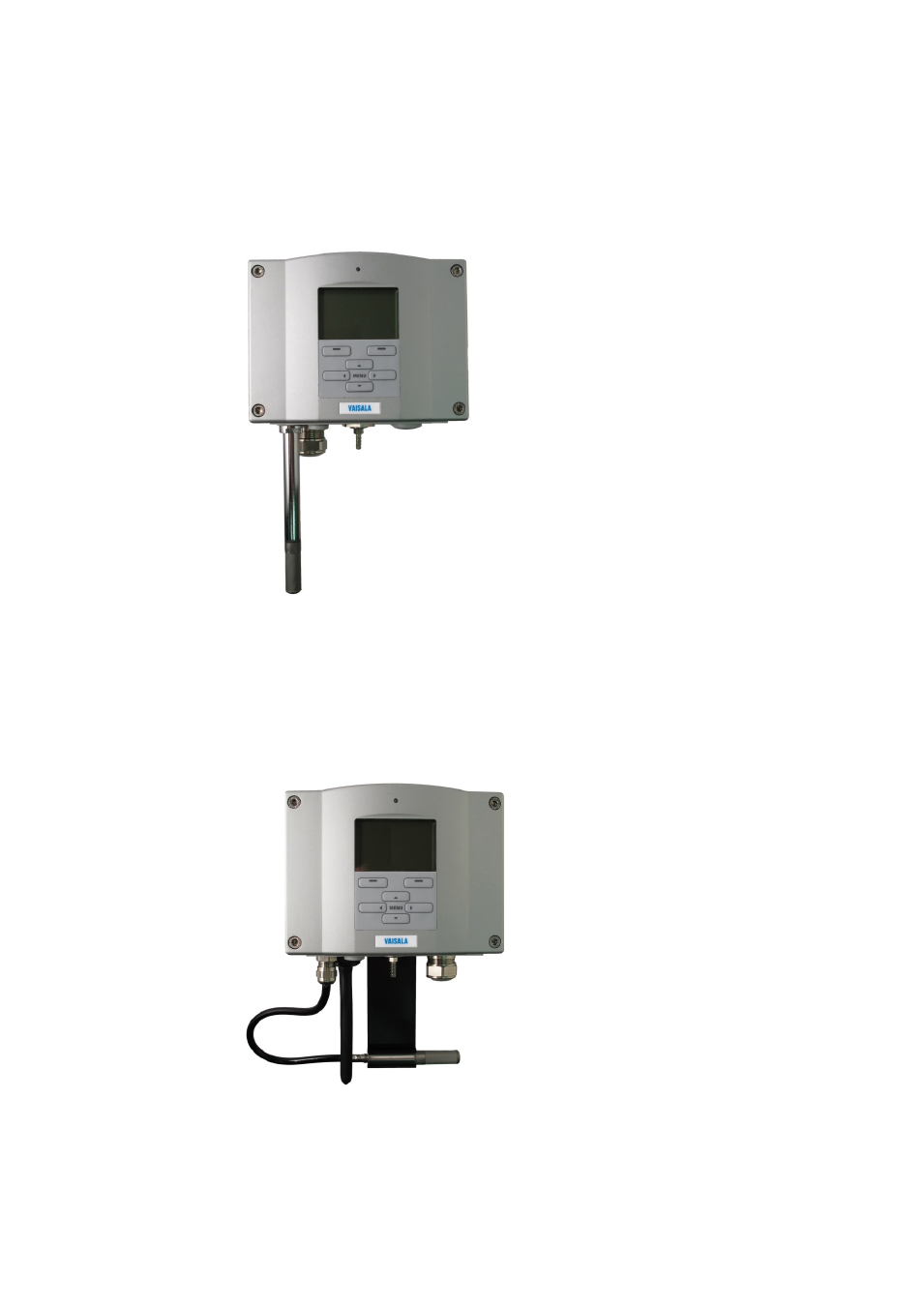

Probe Options

The PTU301 is intended for wall-mounted applications. The standard
version has a fixed probe.

1104-079

Figure 3

PTU301 Fixed Probe

The PTU301 short cable probe is a special version for use with the
WLAN module, and when LAN module and power supply module are
simultaneously installed. It has the general use PTU303 probe on a short
cable (21 cm), and a mounting plate with a probe holder.

1104-080

Figure 4

PTU301 Short Cable Probe
