Structure of the transmitter, Figure 1, Transmitter body – Vaisala PTU300 User Manual
Page 26
User's Guide _______________________________________________________________________
24 ___________________________________________________________________ M210796EN-G
Structure of the Transmitter
1104-078
Figure 1

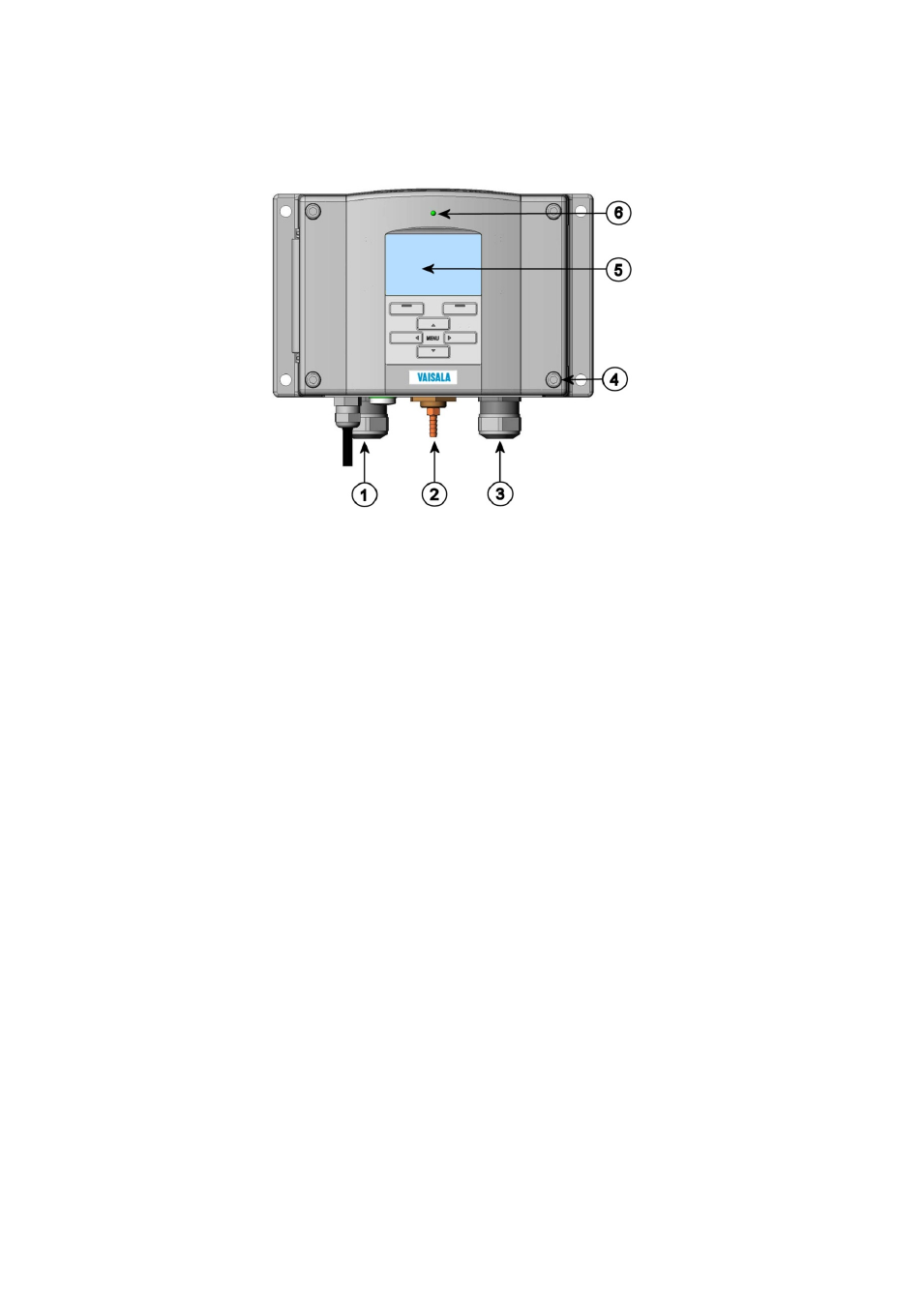

Transmitter Body
The numbers refer to Figure 1 above:
1
=
Signal + powering cable gland, or WLAN antenna connector
2
=
Pressure port
3
=
Cable gland for optional module or AC mains cable
4
=
Cover screw (4 pcs)
5
=
Display with keypad (optional)
6
=
Cover LED
