User's Guide _______________________________________________________________________
32 ___________________________________________________________________ M210796EN-G
Mounting with DIN Rail Installation Kit
DIN rail installation kit includes a wall mounting kit, 2 clip-fasteners and
2 screws M4 x 10 DIN 7985 (Vaisala order code 215094).
1.
Attach two spring holders to the plastic mounting plate by using the
screws provided in the installation kit.
2.
Fasten PTU300 to the plastic mounting plate with 4 screws
(provided).
3.
Press the transmitter onto the DIN rail so that the clip-fasteners
snap into the rail.
0503-002

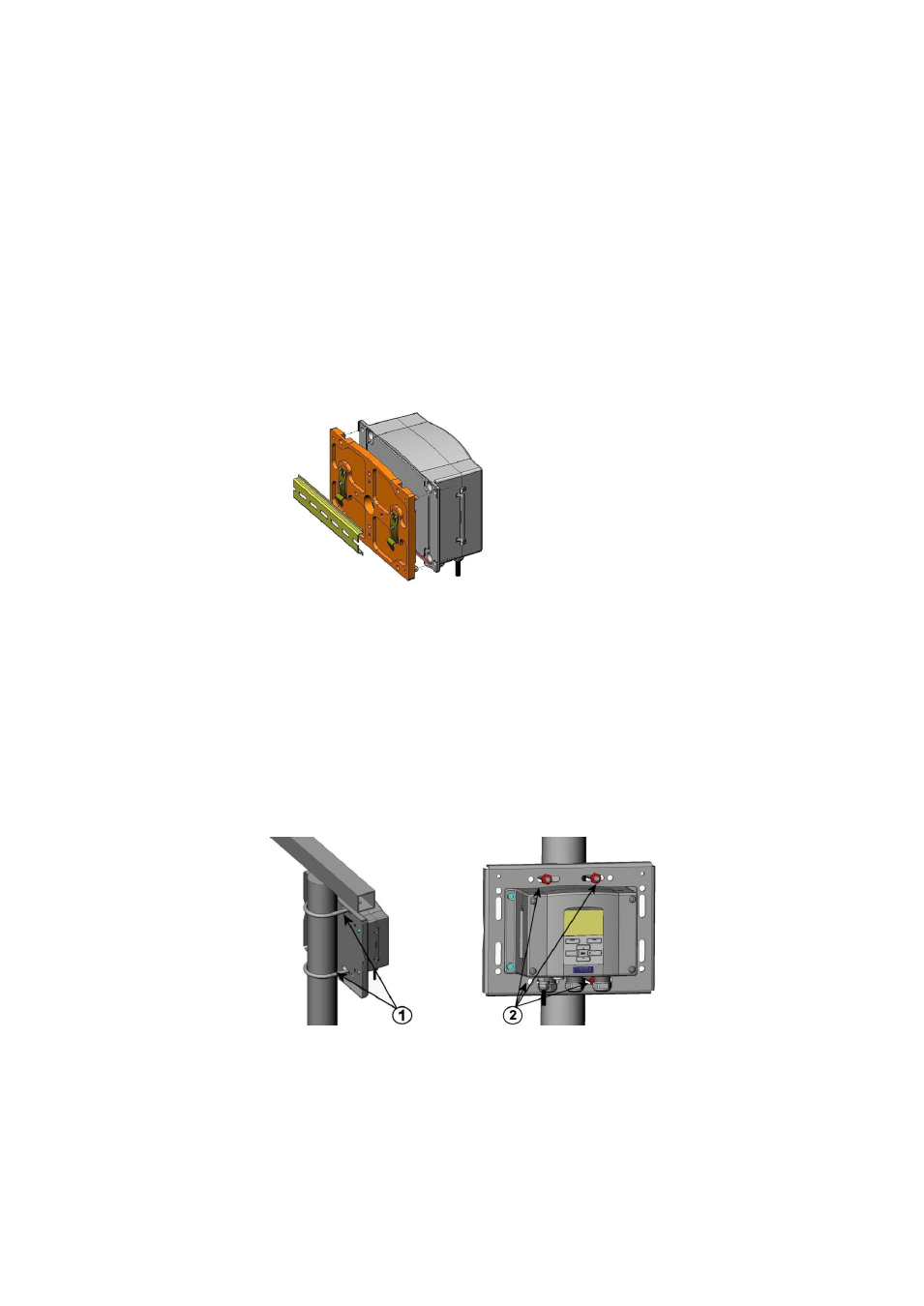

Figure 10
Mounting with DIN Rail Installation Kit
Pole Installation with Installation Kit for
Pole or Pipeline
Installation kit for pole or pipeline (Vaisala order code: 215108) includes
the metal mounting plate and 4 mounting nuts for pole mounting. When
mounting, the arrow in the metal mounting plate must point upward;
see Figure 13 on page 33.
0503-006
Figure 11
Vertical Pole
The following numbers refer to Figure 11 above:
1
=
U-bolts (2 pcs) M8 (provided) for 30 ... 102 mm poles
2
=
Mounting nuts M8 (4 pcs)
