User's Guide _______________________________________________________________________

42 ___________________________________________________________________ M210796EN-G

D-9 Connector

0605-123

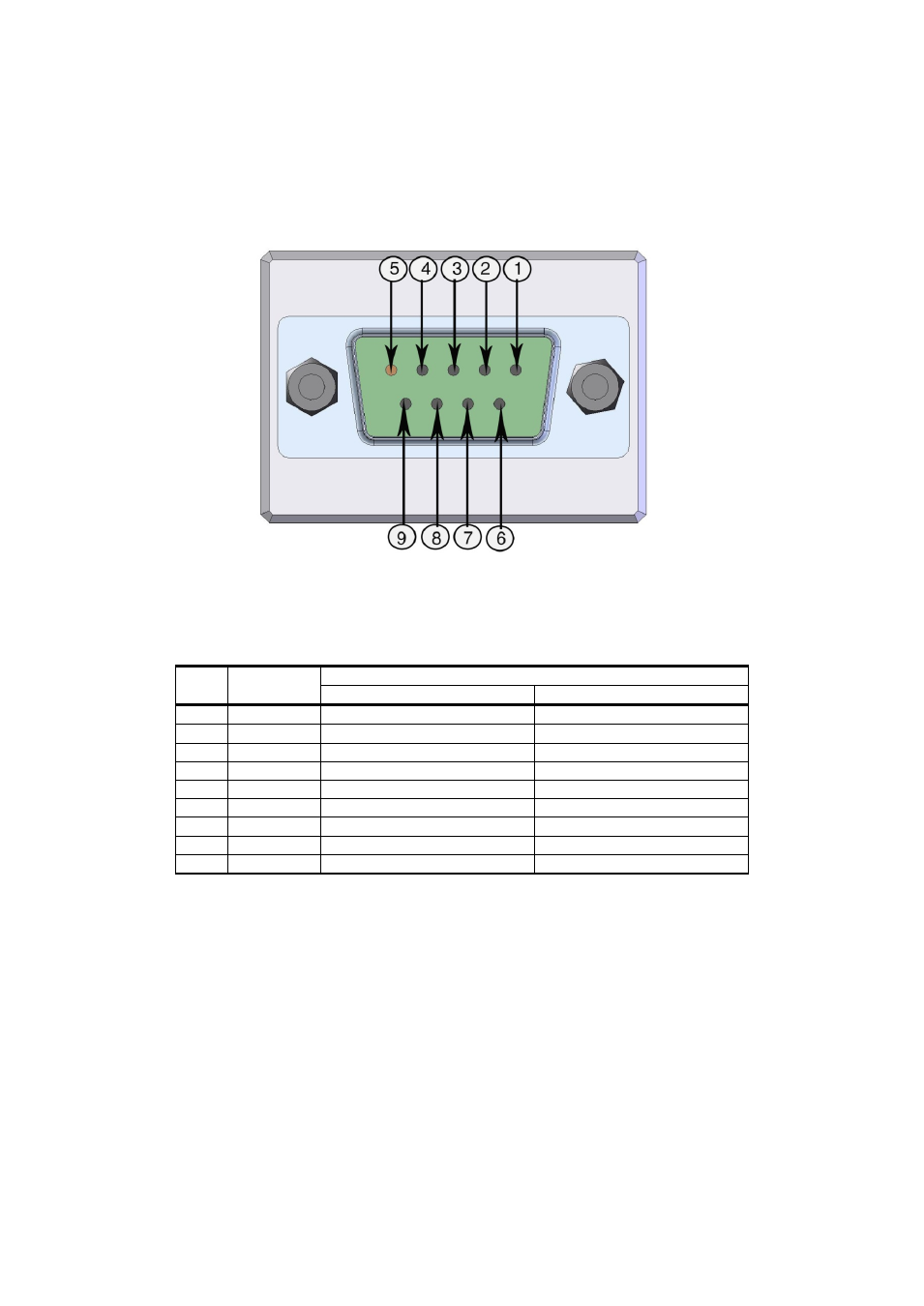

Figure 22

Wiring of Optional D-9 Connector

Table 8

Pin Assignments to RS-232/485 Serial Output

Pin

Wire Color Serial Signal

RS-232 C

RS-485

1

Red

2

White

TX

3

Black

RX

4

Yellow

5

Brown

Ground

6

Green

D0-

7

Blue

Ground for supply voltage

Ground for supply voltage

8

Grey

D1+

9

Orange

Supply voltage

Supply voltage
