Meteorological Installation Kit (for PTU307)
The Vaisala Meteorological Installation Kit HMT330MIK with a static
pressure head enables the PTU307 to be installed outdoors to obtain
reliable measurements for meteorological purposes. For more
information, see HMT330MIK brochure and order form.
0601-044

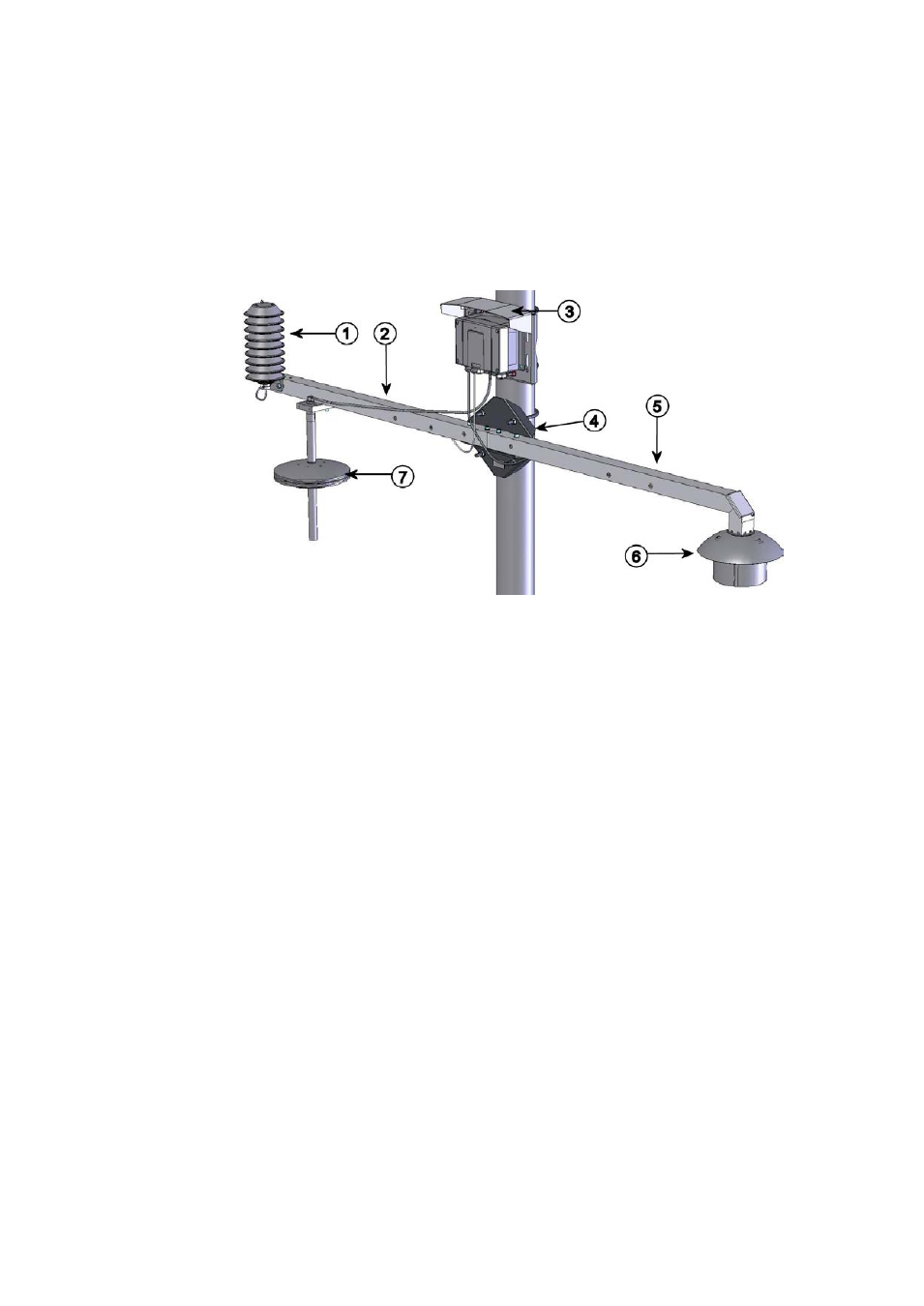

Figure 94
Meteorological Installation Kit for Outdoor
Installation
The following numbers refer to Figure 94 above:
1
=
Radiation shield for the additional T-probe or humidity probe
2
=
T support bar
3
=
Transmitter mounting plate
4
=
Pole mounting plate for support bars
5
=
Td support bar
6
=
Radiation shield for the warmed humidity probe
7
=
Static pressure head
