User's Guide _______________________________________________________________________
196 __________________________________________________________________ M210796EN-G
Duct Installation Kit for Temperature Probe (for
PTU307)
Vaisala duct installation kit for the T-probe includes flange, supporting
bar, probe attaching part, sealing ring and the fixing screws (4 pcs).
Vaisala order code: 215003.
0507-019

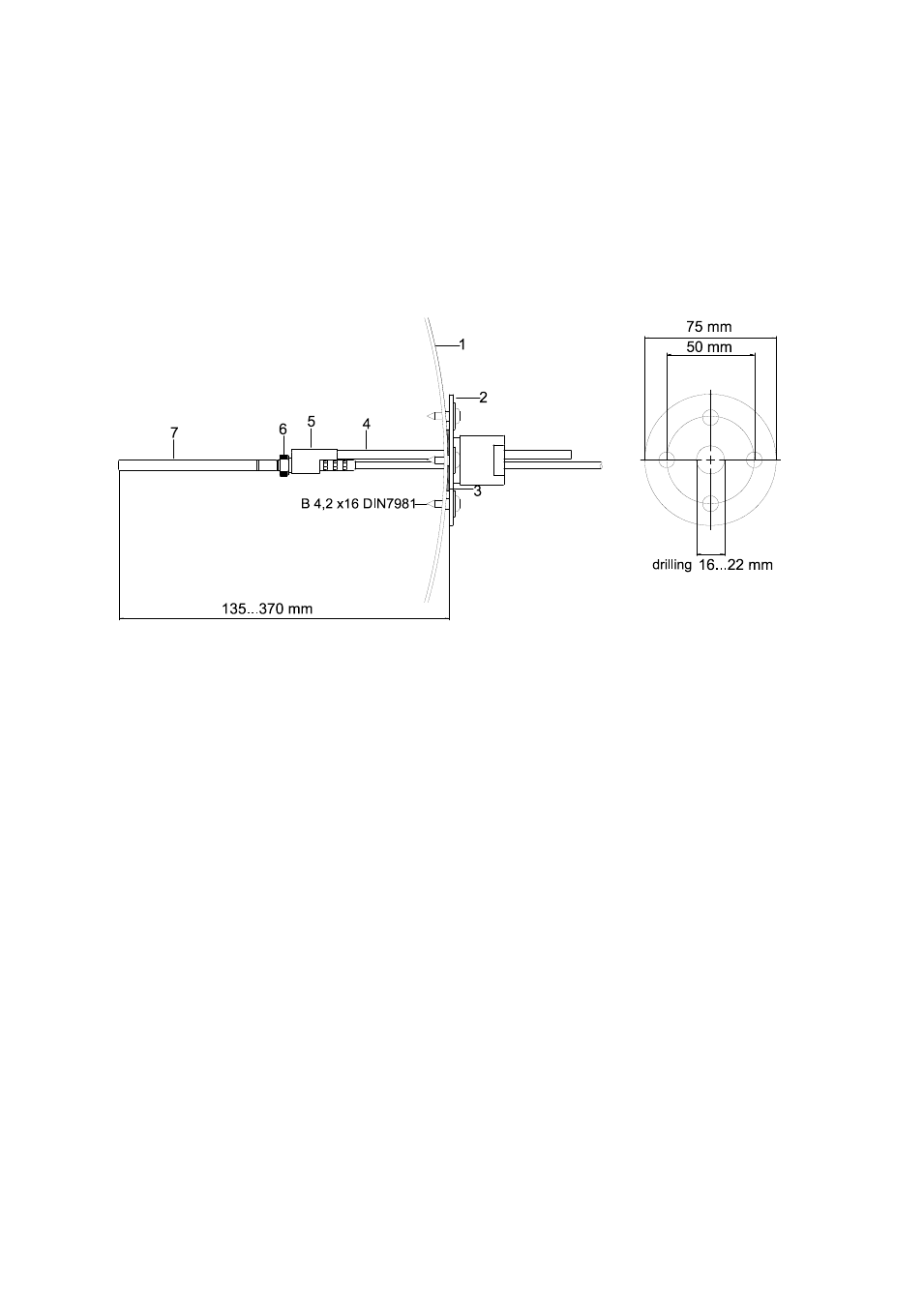

Figure 87
Duct Mounting Installation Kit for T-Probe
The following numbers refer to Figure 87 above
1
=
Duct wall
2
=
Flange
3
=
Sealing ring
4
=
Supporting bar
5
=
Probe support (to be fixed to the supporting bar)
6
=
Retainer bushing (to be fixed to the probe support)
7
=
Temperature probe (to be fixed to the retainer bushing)
Pressure Tight Swagelok Installation Kits (For
PTU307)
RH Probe Installation
Swagelok installation kit for the relative humidity probe includes
Swagelok connector with ISO3/8" or NPT1/2" thread. Vaisala order
codes: SWG12ISO38 or SWG12NPT12.
