Temperature Probe Installation
Swagelok installation kit for T-probe includes Swagelok connector with
either ISO1/8" or NPT1/8" thread. Vaisala order codes: SWG6ISO18 or
SWG6NPT18.
0508-016

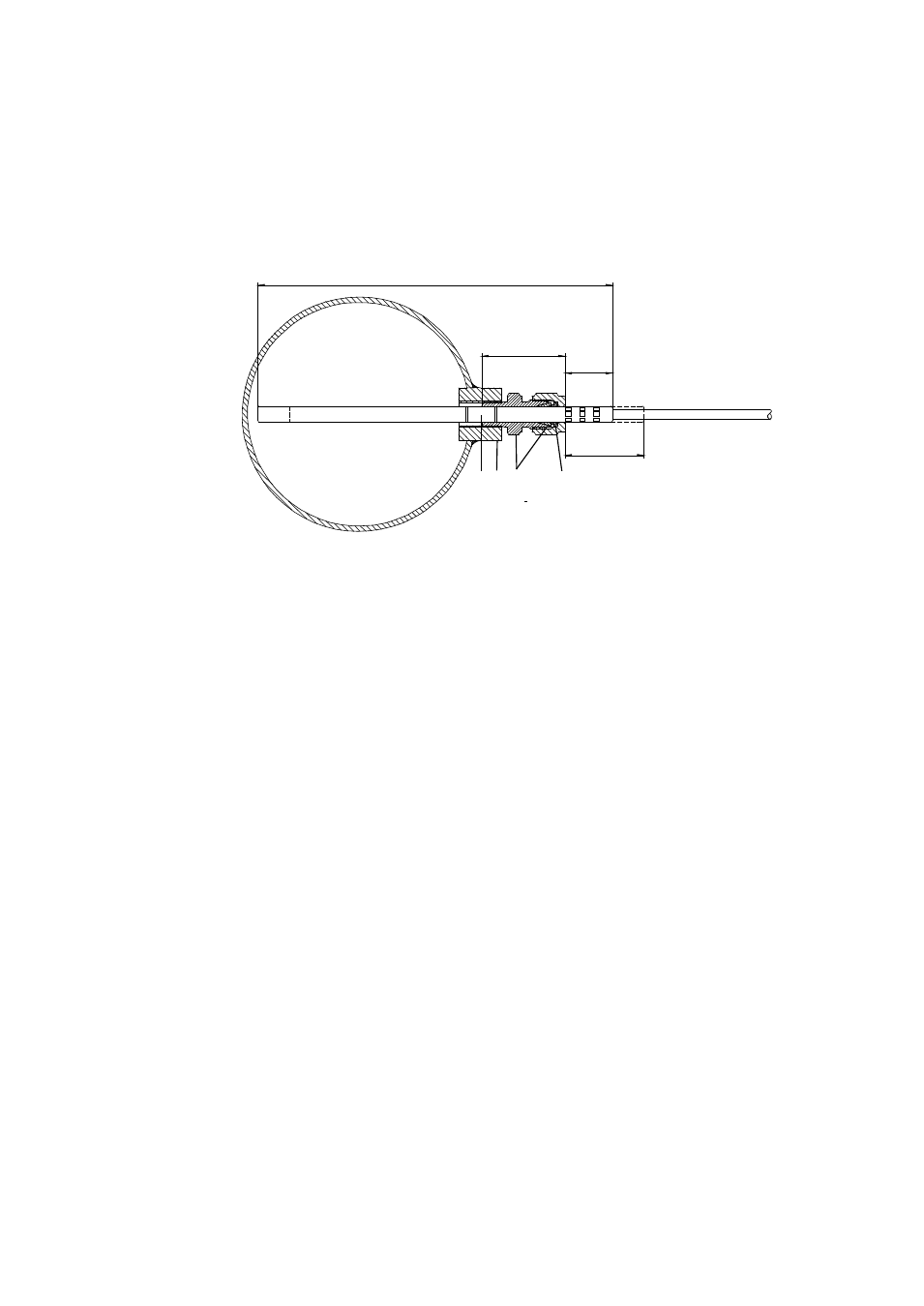

Figure 89 Swagelok Installation Kit for T-Probe
The following numbers refer to Figure 89 above
1
= T-probe
2 = Duct connector
3 = Swagelok connector
4 = Ferrules
135 mm
33 mm
18 mm min
max 30 mm
1 2 3 4
P = max 10 bar
T = max 180 ºC
