Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 29
CHAPTER 3
INSTALLATION
This chapter provides you with information that is intended to help you
install the product.
Mounting the Housing
The housing can be mounted either without the mounting plate or with
optional mounting plates.
Standard Mounting without Mounting
Plate
Mount the housing by fastening the transmitter to the wall with 4 screws,
for example, M6 (not provided).
0601-011

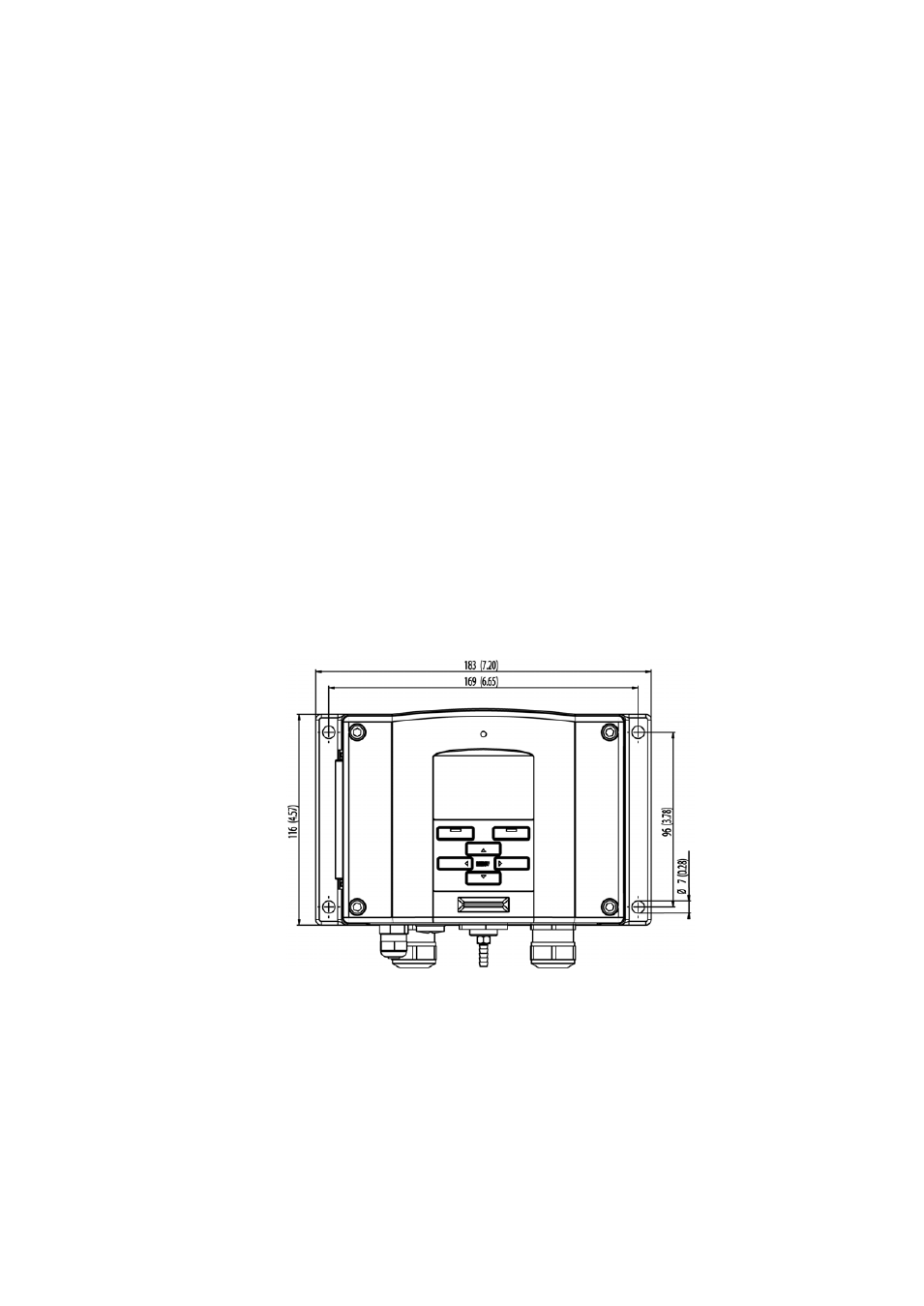

Figure 6
Standard Mounting
