PF3000 Pro Cotton Yield Monitor
Calibrating Stop Height Ag Leader Technology
July 2003 3-18

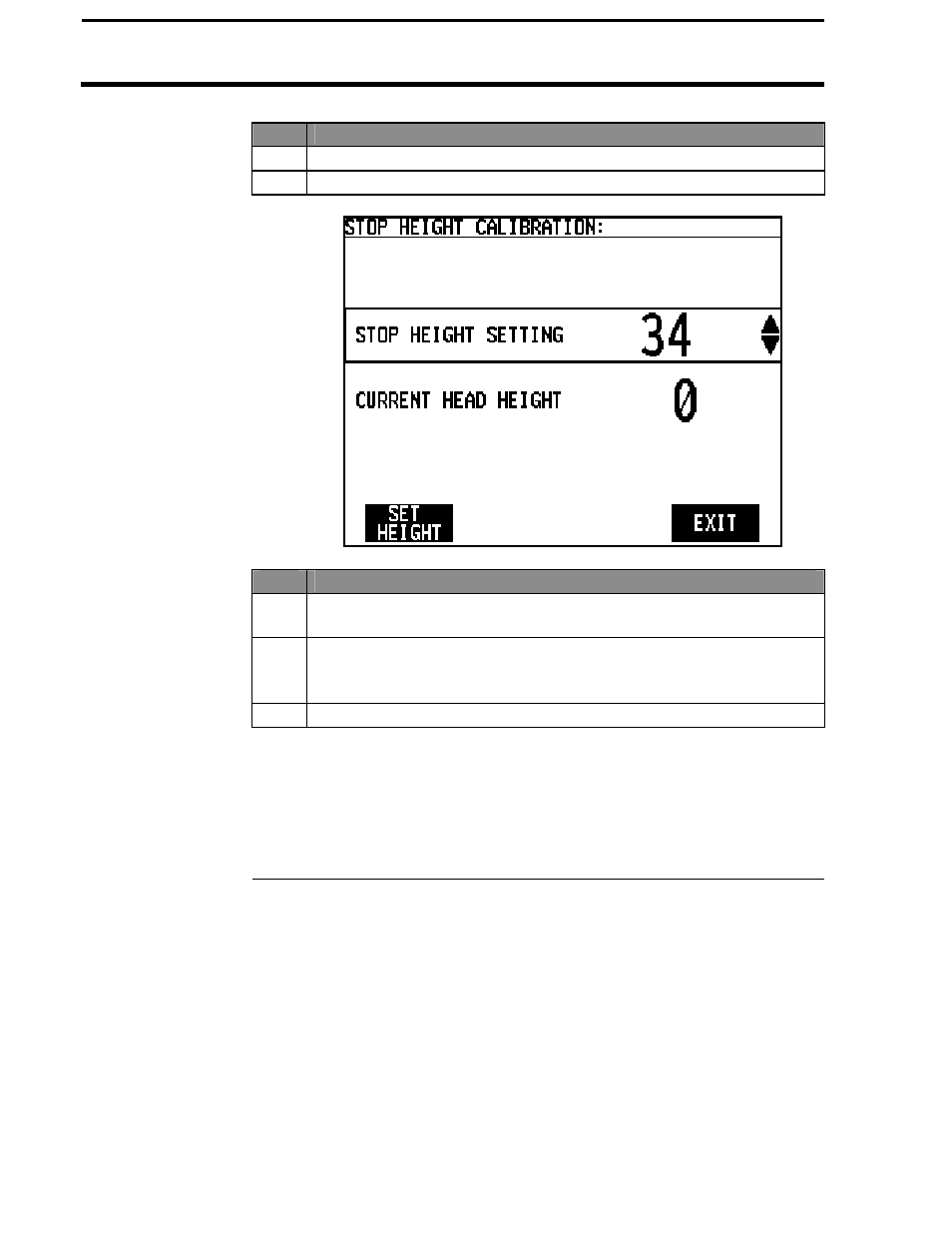

Step Action
1 Use the UP or DOWN ARROW keys to select stop height setting.
2 Press the SET HEIGHT key.
Step Action
3 Move the picker head to the height at which you want the monitor to
stop counting area.
4 Press the SET HEIGHT key. The monitor will automatically set the
stop height setting equal to the current stop height. Press the
ACCEPT key.
5 Press the EXIT key twice to return to the main operating screen.
NOTE: You can manually adjust the stop height number by pressing the
UP or DOWN ARROW key when the screen above is displayed. Adjustment
of the sensor maybe needed to gain more range of motion. Adjust the point
at which the chain attaches to the threaded rod and/or adjust the location
that the chain is attached to the head.
* * *
