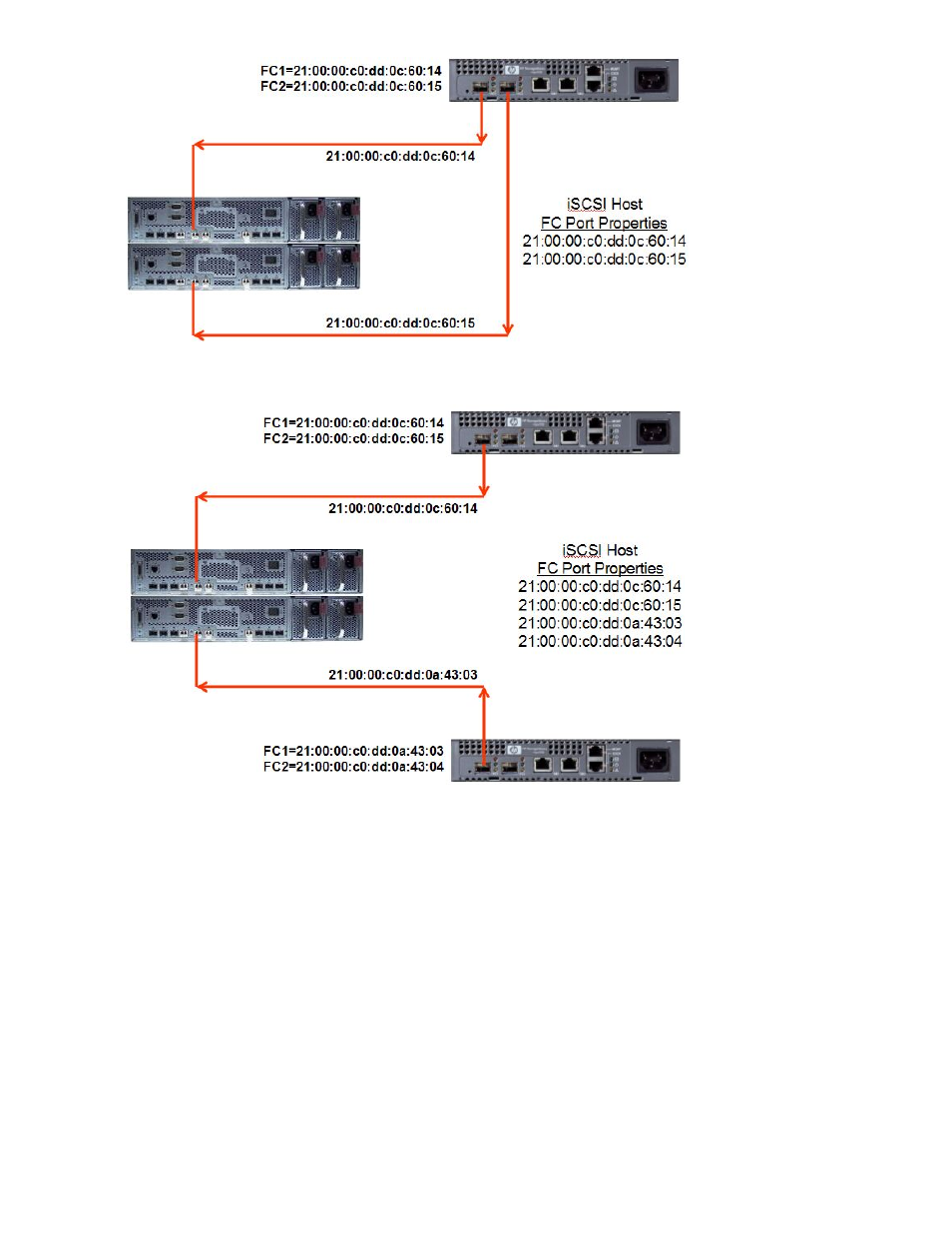

Figure 42 Example: Single mpx100 multipath—WWPN configuration
Figure 43 Example: Dual mpx100 multipath—WWPN configuration
The mpx100/100b perspective
When an EVA storage system FC port connects to the mpx100/100b, the mpx100/100b creates in its
database a unique iSCSI target name that includes the WWPN of the EVA storage controller port. This
iSCSI target name is used by the iSCSI Initiator to connect to the EVA storage system.
Each EVA FC port must be connected to the mpx100/100b in order for the mpx100/100b to create
an iSCSI target entry (see Figure 44 ).
