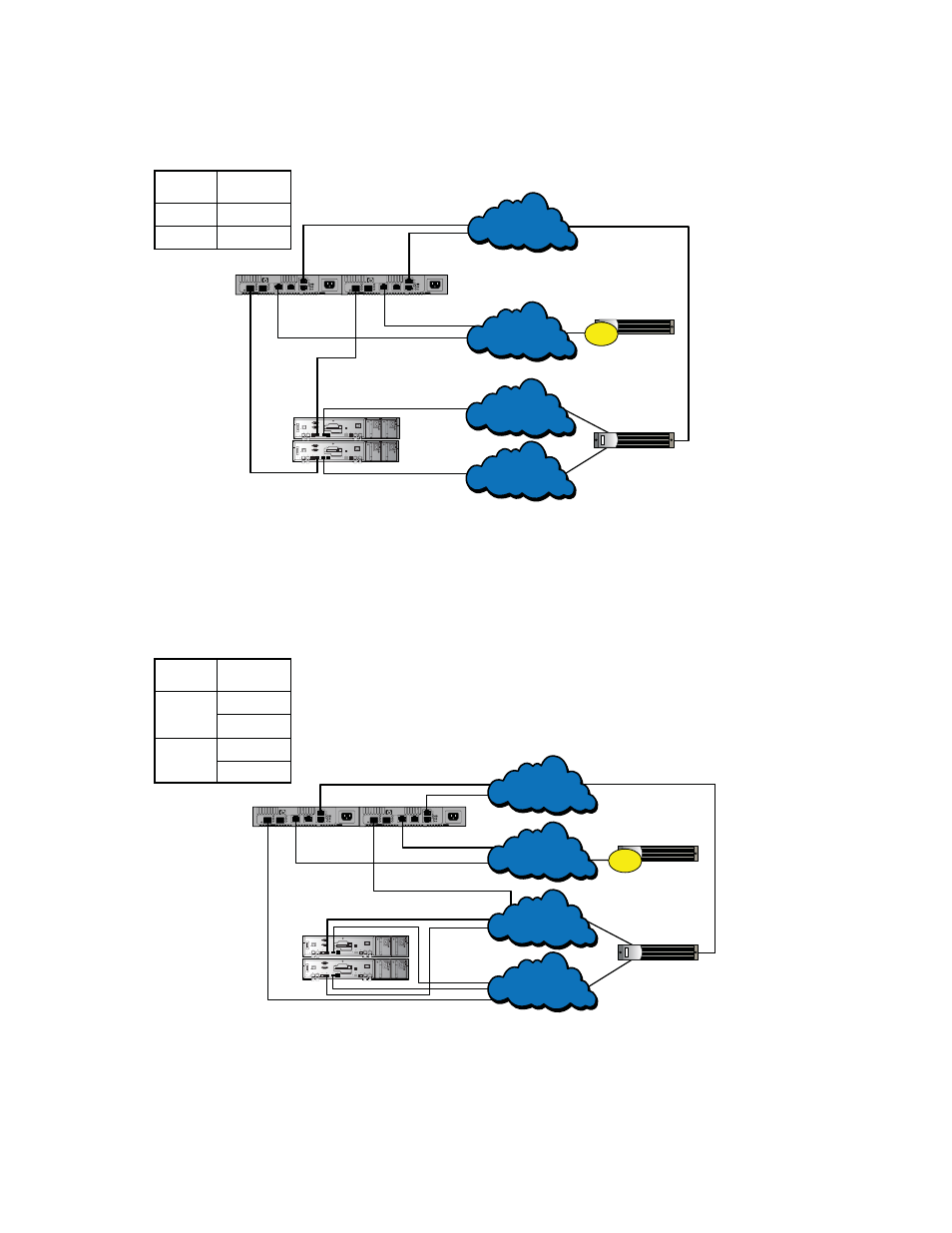

Figure 7 illustrates the high-availability multipath direct connect iSCSI–Fibre Channel attachment mode
configuration. This configuration is used with the EVA4000/4100/6x00/8x00 using the mpx100's and
with the EVA4400 using the mpx100b's.
FC1 FC2 GE1 GE2
MGMT HP StorageWorks mpx100 IOIOI
! FC1 FC2 GE1 GE2
MGMT HP StorageWorks mpx100 IOIOI
!
B
A
FP1 FP2
FP2 FP1
GE1
MGMT
FC1 FC2 GE1
MGMT
FC1 FC2 GE2 GE2
25165b
D1
D2
IP Network
management
(WAN/LAN)
iSCSI
NIC
IP Network
iSCSI data
(LAN/VLAN)
Discovery
IP Address
Presented
iSCSI Targets
D1 FP1A
FP1B D2
Command
View EVA
Existing
Fibre Channel
HA fabric 1
Existing
Fibre Channel
HA fabric 2
EVA
Storage System
mpx100/100b 1* mpx100/100b 2
*mpx100b supported on EVA4400 only
Figure 7 Multipath direct connect iSCSI-Fibre Channel attachment mode configuration
Figure 8 illustrates the high-availability multipath fabric iSCSI–Fibre Channel attachment mode
configuration. This configuration is used with EVA4000/4100/6x00/8x00, with the mpx100s and with
the EVA4400 using the mpx100b's.
FC1 FC2 GE1 GE2
MGMT HP StorageWorks mpx100 IOIOI
!
EVA
Storage System
25166b
D1
GE1
MGMT
iSCSI
B
Command
View EVA
A
FC1 FC2
FP1 FP2
FP2 FP1
NIC
Existing
Fibre Channel
HA fabric 2
Discovery
IP Address
Presented
iSCSI Targets
D1 FP1A
FP1B
FP2B
FP2A
D2
FC1 FC2 GE1 GE2
MGMT HP StorageWorks mpx100 IOIOI
!
GE1
MGMT
FC1 FC2
D2
Existing
Fibre Channel
HA fabric 1
IP Network
iSCSI data
(LAN/VLAN)
IP Network
management
(WAN/LAN) mpx100/100b 1* mpx100/100b 2
*mpx100b supported on EVA4400 only
Figure 8 Multipath Fabric-iSCSI-Fibre Channel attachment mode configuration
EVA iSCSI connectivity user guide 27
