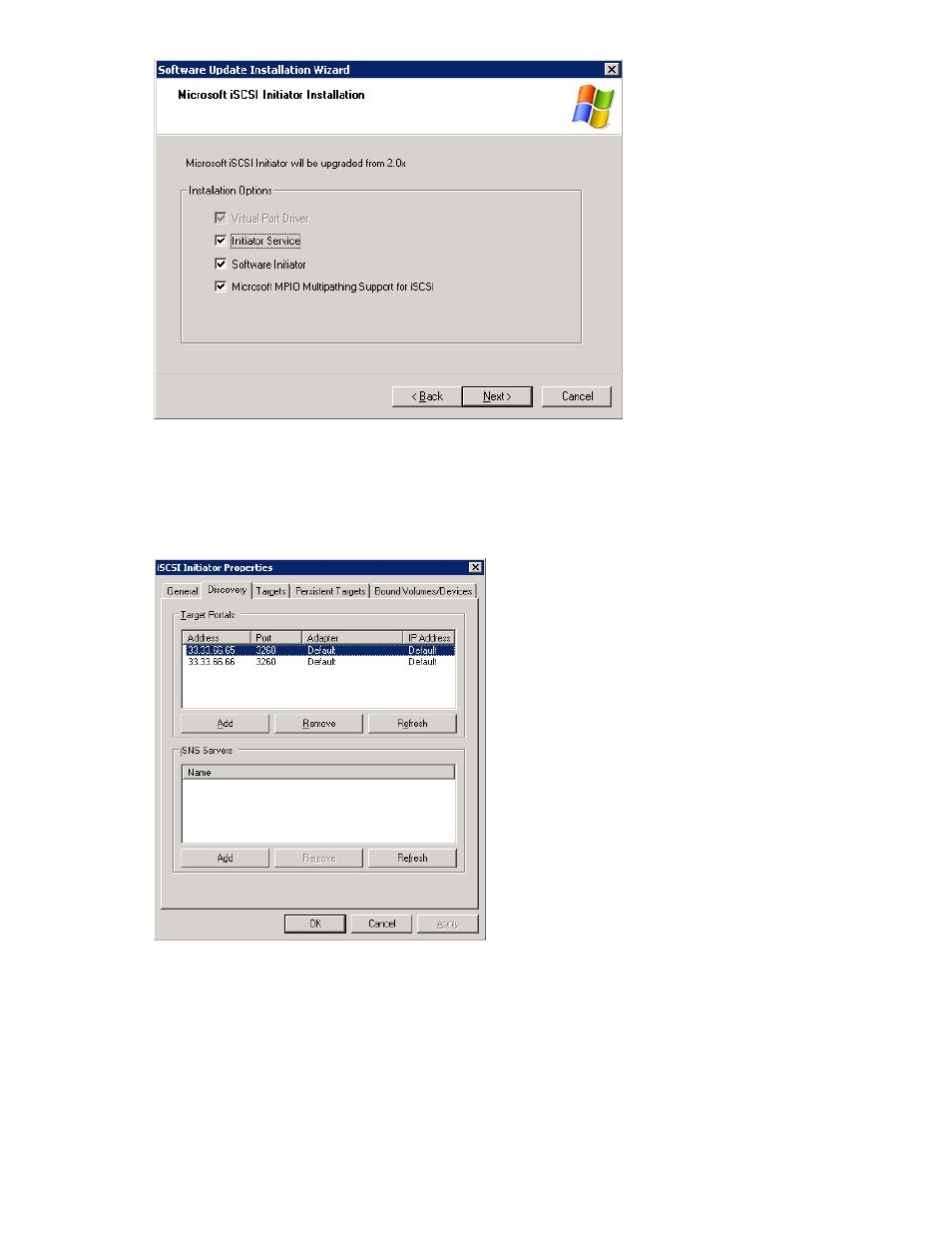

Figure 51 Software update installation wizard
Start the iSCSI Initiator from the Start > All Programs menu. At the Discovery tab, add the mpx100/100b
iSCSI port IP addresses that will serve storage to this server. Note that depending on the Fibre Channel
and IP connections to and from the mpx100/100b and to the iSCSI Initiator, the mpx100/100b iSCSI
port may have more than one target (see Figure 52 ). Click Next to display the Targets tab.
Figure 52 Properties screen for iSCSI Initiator
The Targets tab ( Figure 52 ) displays all iSCSI targets presented by all discovered mpx100/100b iSCSI
ports in the previous step. Double-click a target name to open the Log On to Target window, and select
the Automatically restore this connection when system boots and Enable multi-path check boxes (see
Figure 53 ).
The Auto Restore check box adds the target name under the Persistent Targets list.
EVA iSCSI connectivity user guide 103
