4.12 "Clear" Control Setup Screen

Setup the operation to clear the status with the "CLEAR" button, or to combine with other commands to clear
the Signal Tower status.

Clear All :

A function to clear both the Signal Tower and buzzer status and return to its normal
mode of operation.

Depress twice to clear all : One press of the "CLEAR" button to stop the buzzer sound.

Pressing the "CLEAR" button a second time returns it to its normal mode of
operation.

[Setup Method]
1. When using the "CLEAR" button to return to its normal mode after an E-mail Sending and TRAP

transmission are received, select the "Active" radio button.

2. When using the "CLEAR" command from an SNMP clear execution to return to its normal mode after an

E-mail Sending and TRAP transmission are received, select the "Active" radio button.

3. When using the "CLEAR" from an RSH command execution to return to its normal mode after an E-mail

Sending and TRAP transmission are received, select the "Active" radio button.

When selecting "Active" for E-mail Sending

Select the preferred E-mail subject title and text.
Select the Receiver for the E-mail to be sent to.
4. Select the clear switch setup for either "Clear All" or "Depress twice to clear all".
5. Click the "Set" button to save the settings.

"TRAP Command" received when a TRAP condition occurs

OID:

1.3.6.1.4.1.20440.4.1.6.4

Name: trapPatliteClearExecuted

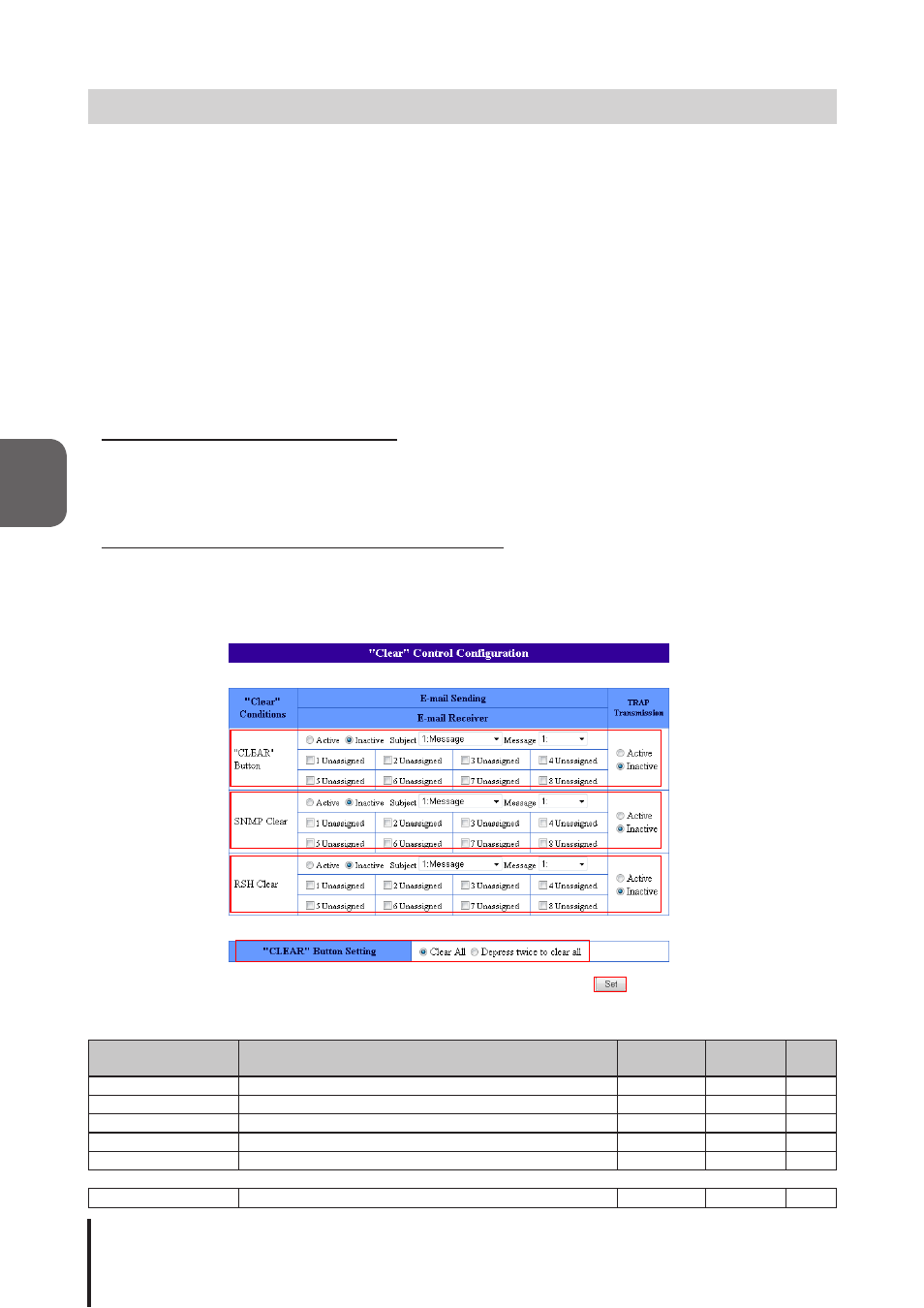

Fig. 4.12.1 "Clear" Control Setup Screen

Table 4.12.1 "Clear" Control Setup Parameters

Item

Contents

Default

Value

Input

Parameter

Setting

Option

E-mail Sending

Select the Active/Inactive condition for the E-mail Sending. Inactive

―

Subject

Select the E-mail subject title

1. Message

―

Message

Select the E-mail message to text

―

Unassigned 1 to 8

Select from 1 to 8 Addresses to send E-mail to.

Unassigned

―

TRAP Transmission Select the Active/Inactive condition for the TRAP Transmission. Inactive

―

“CLEAR” Button Setting Select the setup conditions for when the “CLEAR” button is pressed. Clear All

―
