Table 4.4.1 SNMP Setup Parameters
Item Contents
Default
Value
Input
Parameter
Setting
Option
SNMP Function
Setup to Activate/Inactivate the
SNMP function.
Active — —
SET Community
Name
Setup the name to use when reading
an SNMP setup value.
private
Half-width alphanumeric character
and underscore “_”
Maximum 32 Characters
—
GET Community
Name
Setup the name to use when writing
an SNMP setup value.
public
Half-width alphanumeric character
and underscore “_”
Maximum 32 Characters
—
TRAP Transmission
Function
Setup to Activate/Inactivate the trap
transmission function.
Inactive — —
TRAP Transmission
Community Name
Setup the community name for the
trap which is transmitting.
public
Half-width alphanumeric character
and underscore “_”
Maximum 32 Characters
—
TRAP Transmission
Frequency
Setup for the number of times a trap
can be transmitted
1 Half-width numbers from 1 to 10 —
TRAP IP Address
to Receiver
IP address format for the destination
of sending a TRAP transmission to.
Blank
Characters which can be used for a
server address
Maximum 63 Characters
O
4.5 Socket Communication Setup Screen
Set up for the use of the PHN Command and PNS Command with Socket Communication.
[Setup Method]
1. Select either "TCP" or "UDP" in the "Protocol" field for the communication method.
2. Enter the port to be used in the "Port Number" field.
3. Click the "Set" button to save all entries.

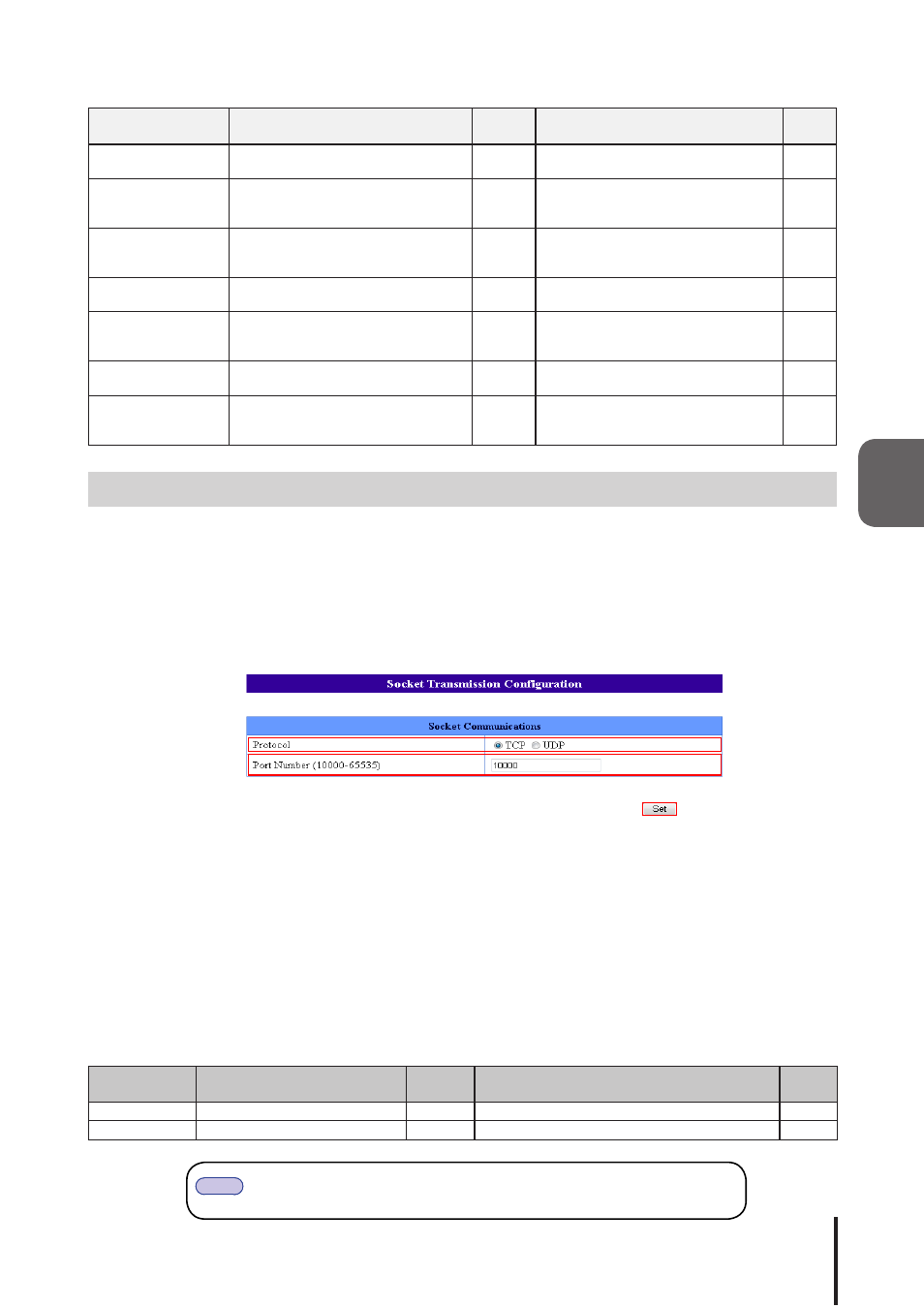

Fig. 4.5.1 Socket Communication Setup Screen
Table 4.5.1 Socket Communication Setup Parameters
Item Contents
Default
Value
Input
Parameter
Setting
Option
Protocol Select from TCP or UDP TCP — —
Port Number Set the reception port number 10000 Half-width numbers from 10000 to 65535 —
Note
①
②
③
Refer to 3.5 “PHN Command Reception Function” for PHN Commands.
Refer to 3.6 "PNS Command Reception Function" for PNS Commands.
