CONFIGURATION
81
Expansion
Point
Horizontal scale
Trigger
Point
Expansion
Point
Horizontal scale
Trigger
Point
Delay Off

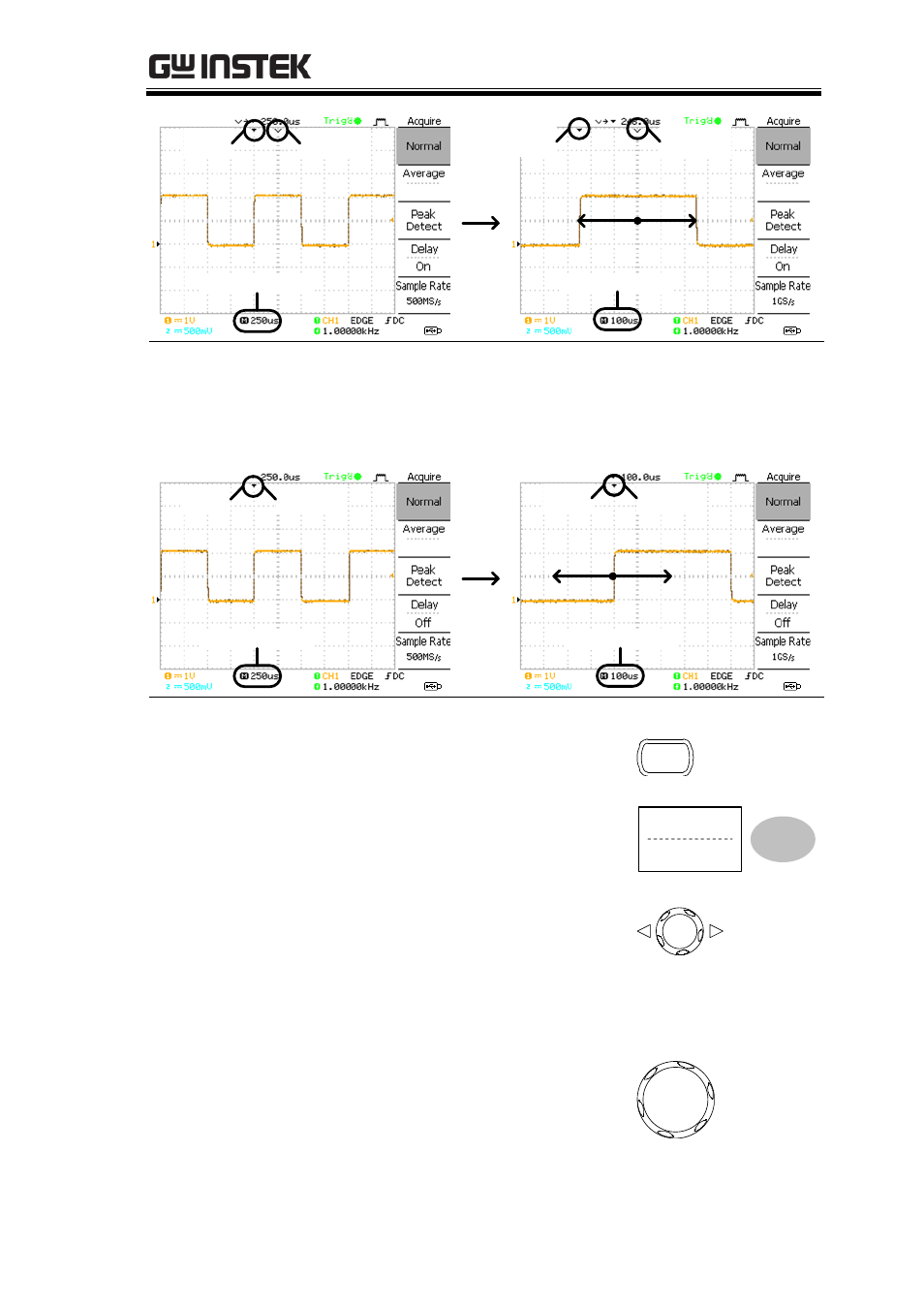

With Delay Off the expansion point and trigger
point are always in the same position. Thus when
the horizontal scale is adjusted, the waveform
expands from the trigger point.
Expansion
Point
Horizontal scale
Trigger
Point
Horizontal scale
Expansion
Point
Trigger
Point
Procedure 1. Press the Acquire key. Acquire
2. Press Delay On/Off to
toggle Delay On/Off.
Delay
On
3. Use the Horizontal Position
knob to increase or decrease
the delay time when Delay
is set to On.
4. Adjust the horizontal scale
to zoom into the waveform.
TIME/DIV
