Run go-nogo tests – GW Instek GDS-1000A-U Series User Manual User Manual
Page 73
MEASUREMENT
73
Div
0.04 Div ~ 4.0 Div

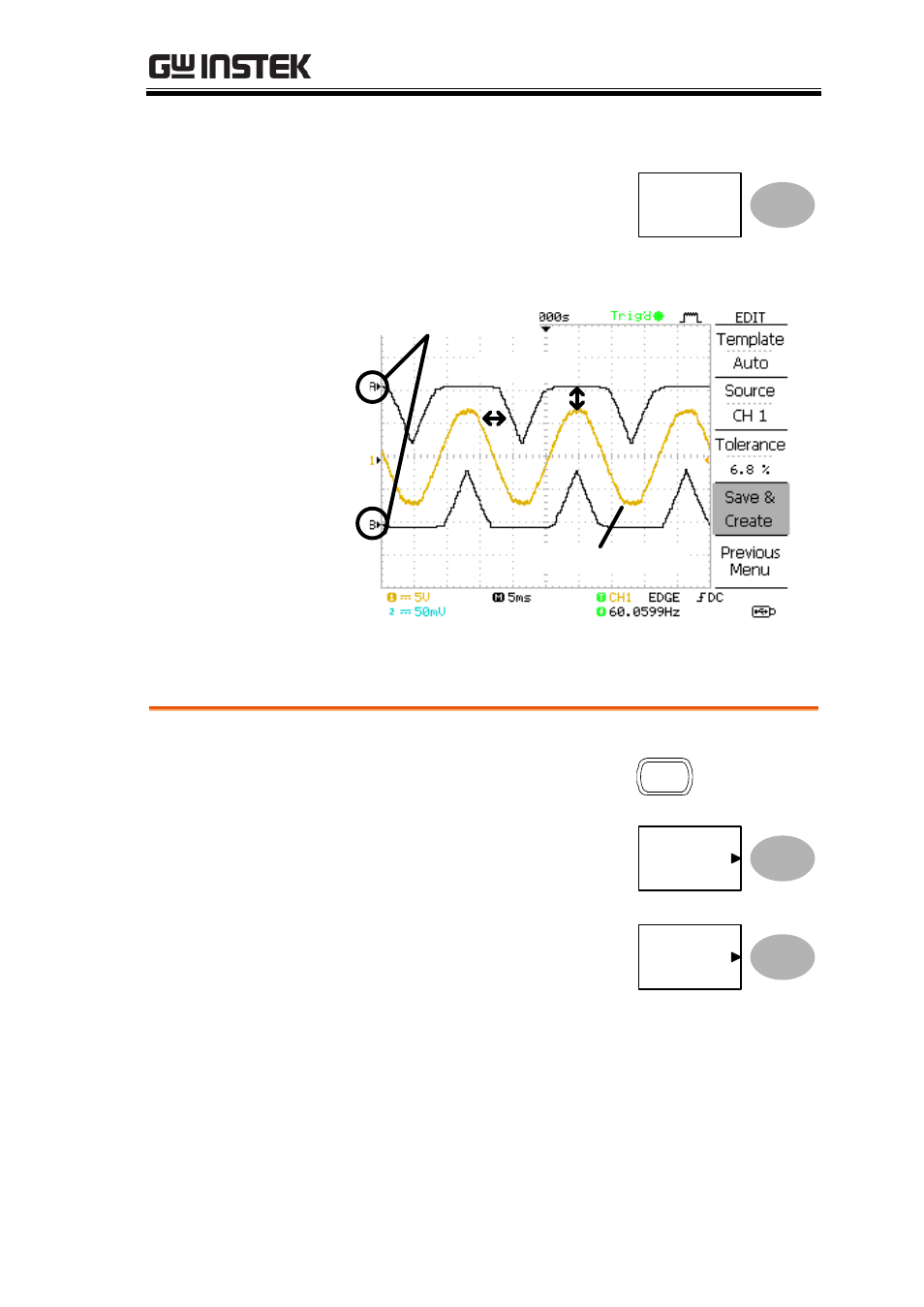

9. When the Auto template has
been configured, press Save
& Create to save the
template.
Save &
Create
Auto template
Source waveform
Tolerance
Run Go-NoGo Tests
Procedure
1. Press the Utility key.
Utility
2. Press the More key.
More
3. Press the Go-NoGo Menu
key.
Go-NoGo
Menu
Ensure the source signal and boundary templates
appear on the screen.
