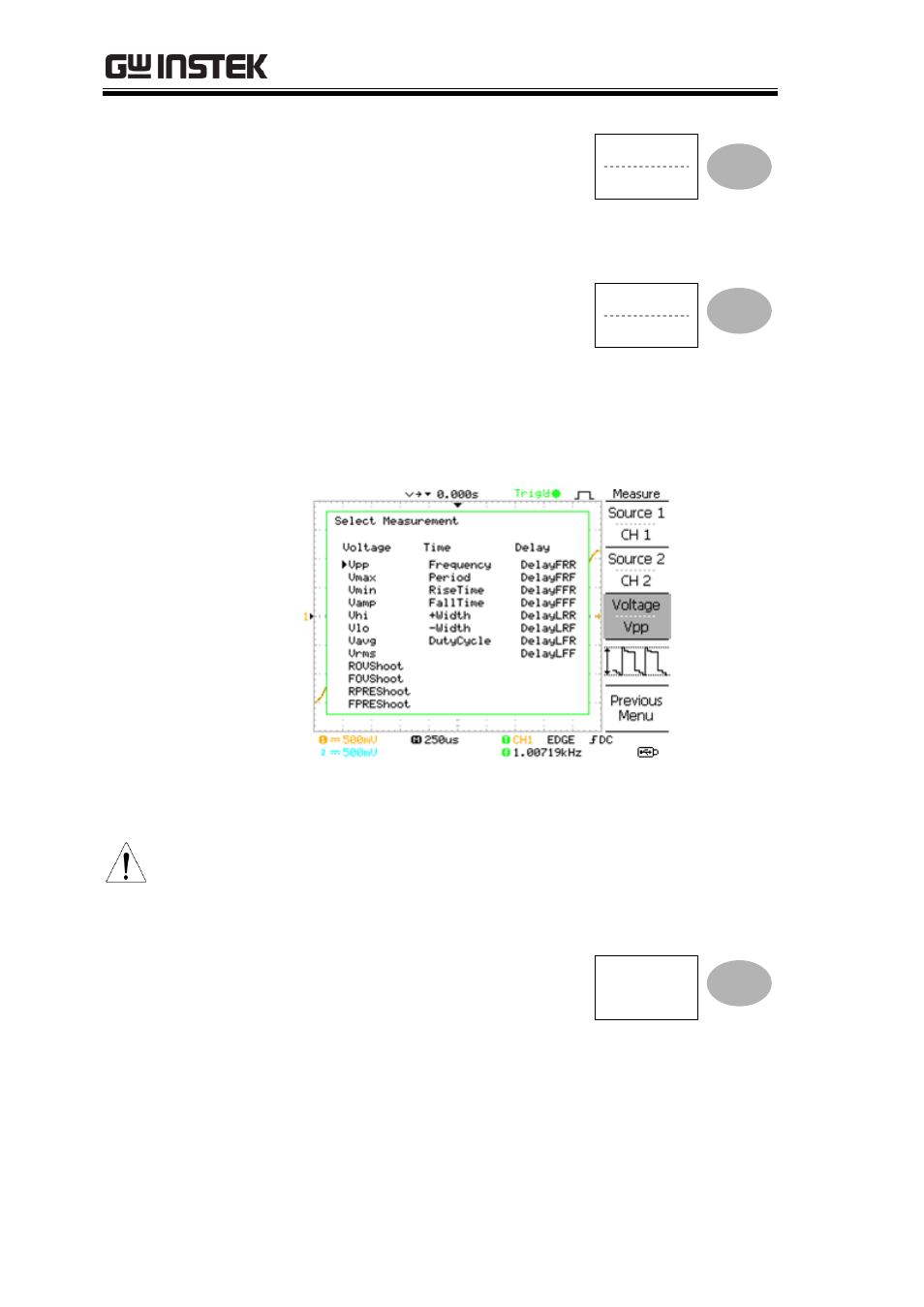

GDS-1000A-U Series User Manual

60

7. Press Source 2 repeatedly to

change the channel for
Source2.

Source 2

CH2

Range

CH1, 2, Math

View all
measurements

8. Press F3 to view all

measurement items.

Voltage

Vpp

9. All the measurements

appear in the center of the
screen.

10. Press F3 again to return.

Note: All the editing operations can still be
performed when viewing all the measurement
items.

11. Press Previous Menu to

confirm the item selection
and to go back to the
measurement results view.

Previous

Menu
