GDS-1000A-U Series User Manual

80

7. Press Normal.

Normal

8. Press Peak-Detect and see

that a spike noise is
captured.

Peak

Detect

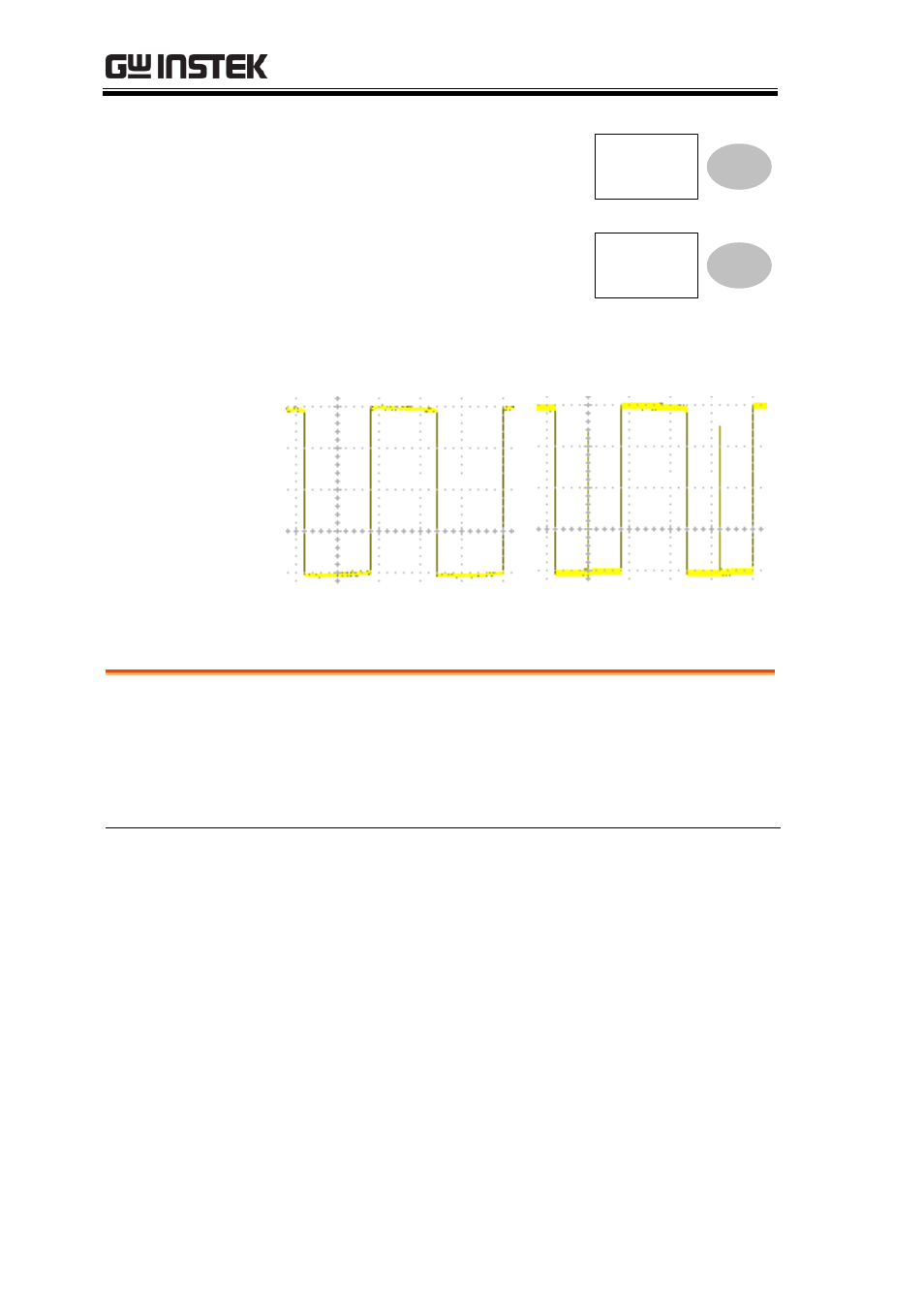

Example

The peak detect mode reveals the occasional glitch.

Normal mode

Peak detect mode

Selecting Delay mode

Background

When delay time is ON, the displayed output is
delayed for a defined amount of time from the
trigger point. Using the delay function is useful
for observing an area of the waveform that occurs
some time after the trigger point.

Delay On

With Delay On the expansion point and trigger
point become separated by the amount of delay
time. As the delay time is increased the trigger
point moves left from the expansion point. When
the horizontal scale is adjusted, the waveform
expands from the expansion point, not the trigger
point.
