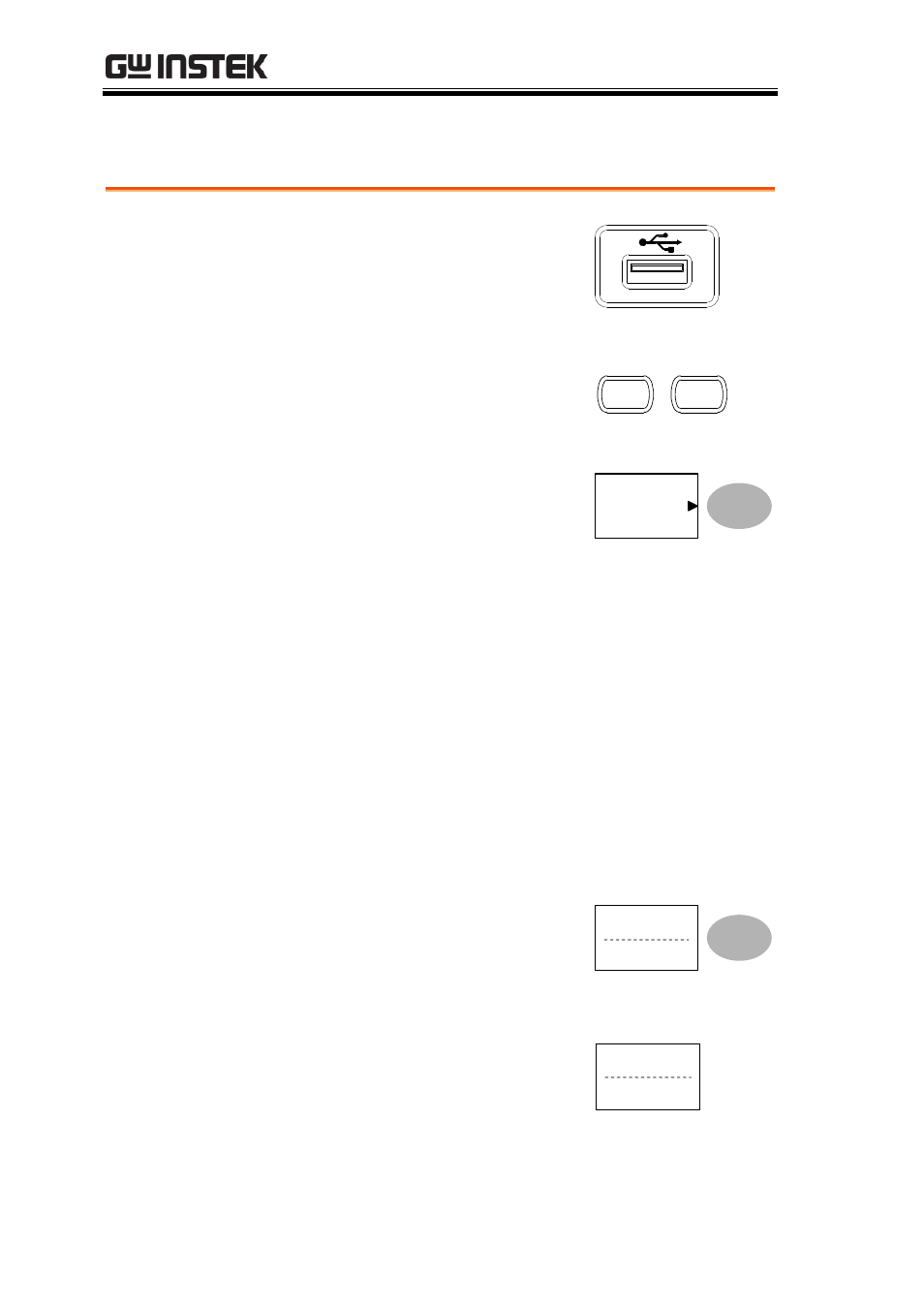

background image

GDS-1000A-U Series User Manual

122

Saving all (panel settings, display image, waveform)

Procedure

1. (For saving to USB flash

drive) Insert the USB flash
drive into the front panel
USB port.

2. Press the Save/Recall key

twice to access the Save
menu.

Save/Recall

Save/Recall

3. Press Save All. The following

information will be saved.

Save

All

Setup file
(Axxxx.set)

Two types of setups are saved:
the current panel setting and
the last internally saved
settings (one of S1 ~ S15).

Display image
(Axxxx.bmp)

The current display image in
bitmap format.

Waveform data
(Axxxx.csv)

Two types of waveform data
are saved: the currently active
channel data and the last
internally saved data (one of
W1 ~ W15).

4. Press Ink Saver repeatedly to

invert the background color
(on) or not (off) for the
display image.

Ink Saver

Off

5. Press Destination.

Destination

USB 1M

USB
Normal

Save to the USB flash drive with a
4k waveform memory length.
