MEASUREMENT

53

Using the probe compensation signal

Background

This section introduces how to use
the probe compensation signal for
general usage, in case the DUT
signal is not available or to get a
second signal for comparison. For
probe compensation details, see
page 132.

Note: The frequency accuracy and duty factor are
not guaranteed. Therefore the signal should not be
used for reference purposes.

Waveform type

Square waveform used for probe
compensation. 1k ~ 100kHz, 5% ~
95%.

Demonstration signal for showing
the effects of peak detection. See page
78 for peak detection mode details.

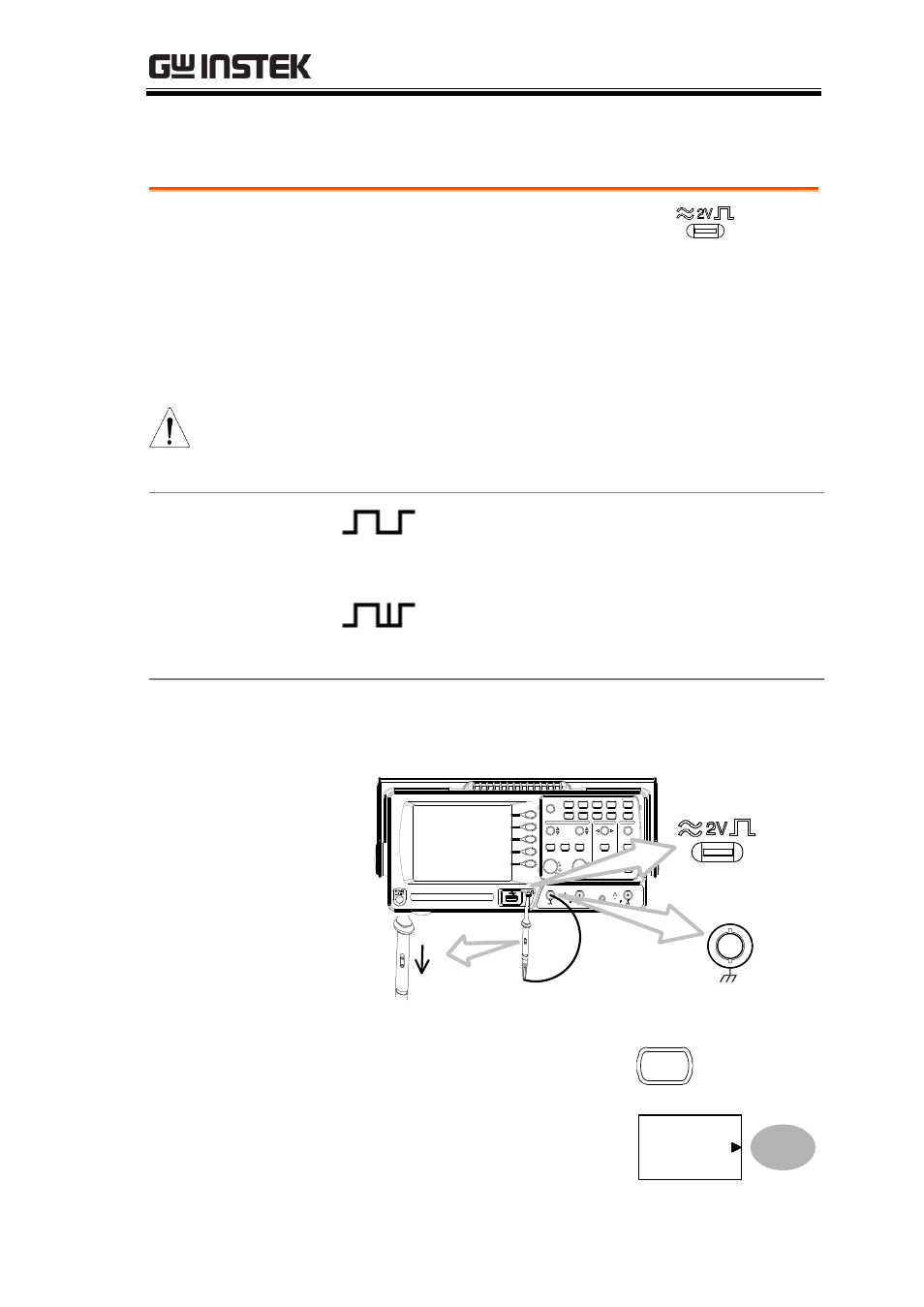

View the probe
compensation
waveform

1. Connect the probe between the compensation

signal output and Channel input.

VOLTS/DIV

VOLTS/DIV

TIME/DIV

CH 1

MATH

CH 2

MENU

MENU

Acquire

Display

Utility

Help

Run/Stop

VARIABLE

FORCE

Autoset

Cursor

SINGLE

Hardcopy

Measure

Save/Recall

LEVEL

VERTICAL

HORIZONTAL

TRIGGER

CH1

CAT

300V

M

W

15pF

MAX. 300Vpk

1

CH2

EXT TRIG

CAT

300V

M

W

15pF

MAX. 300Vpk

1

X

Y

X

1

0

X

1

CH1

x1

x10

2. Press the Utility key.

Utility

3. Press ProbeComp.

ProbeComp

Menu
