MEASUREMENT
55

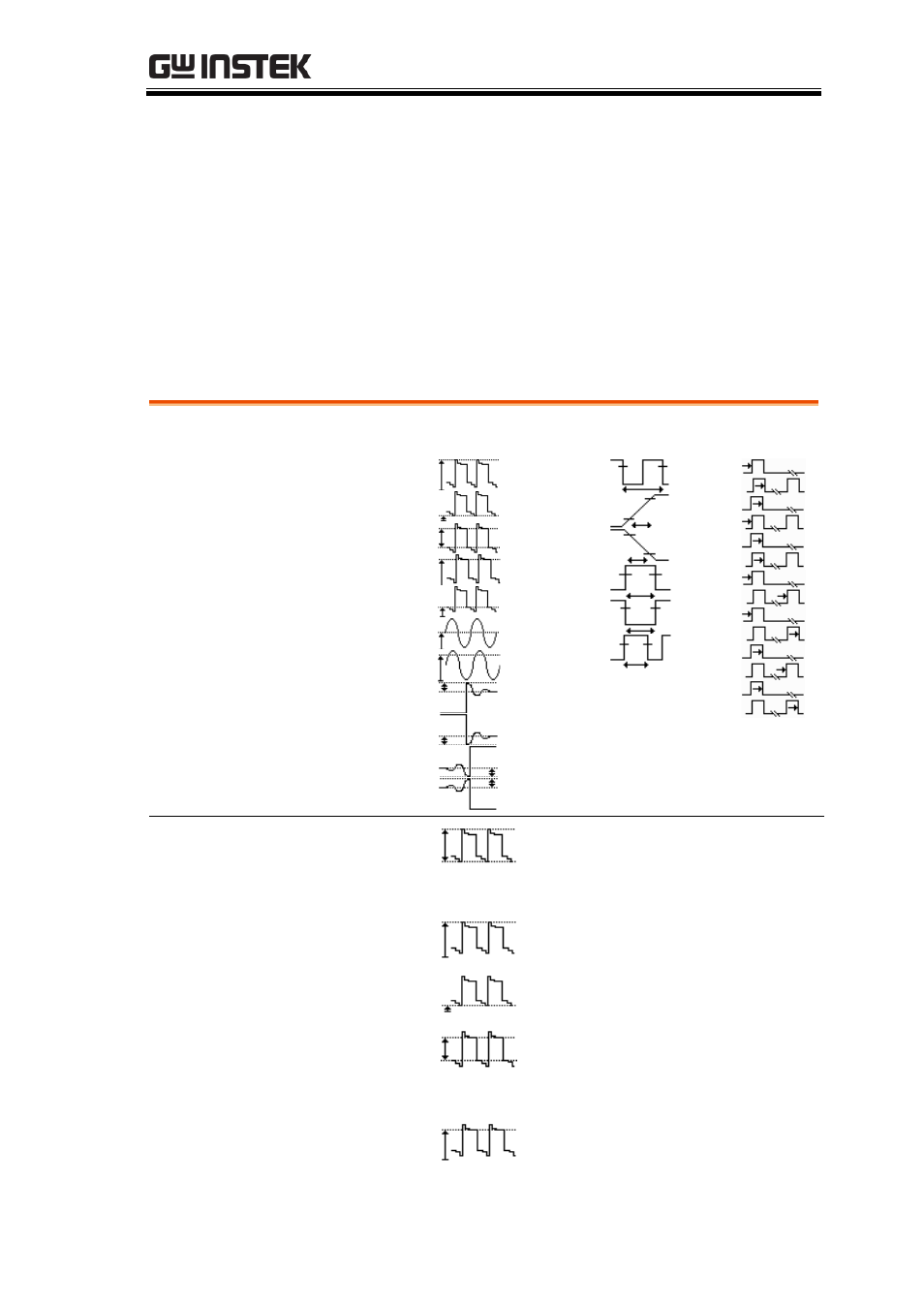

Automatic Measurements
The automatic measurement function measures input signal
attributes and updates them in the display. Up to 5 automatic
measurement items can be updated at any one time on the side
menus. All automatic measurement types can be displayed on
screen if necessary.
Measurement items
Overview Voltage type Time type Delay type
Vpp
Vmax
Vmin
Vamp
Vhi
Vlo
Vavg
Vrms
ROVShoot
FOVShoot
RPREShoot
FPREShoot
Frequency
Period
RiseTime
FallTime
+Width
-Width
Dutycycle
FRR
FRF
FFR
FFF
LRR
LRF
LFR
LFF
Voltage
measurement
items Vpp Difference between positive
and negative peak voltage
(=Vmax − Vmin)
Vmax Positive peak voltage.
Vmin Negative peak voltage.
Vamp Difference between global
high and global low voltage
(=Vhi − Vlo)
Vhi Global high voltage.
