GDS-1000A-U Series User Manual
48

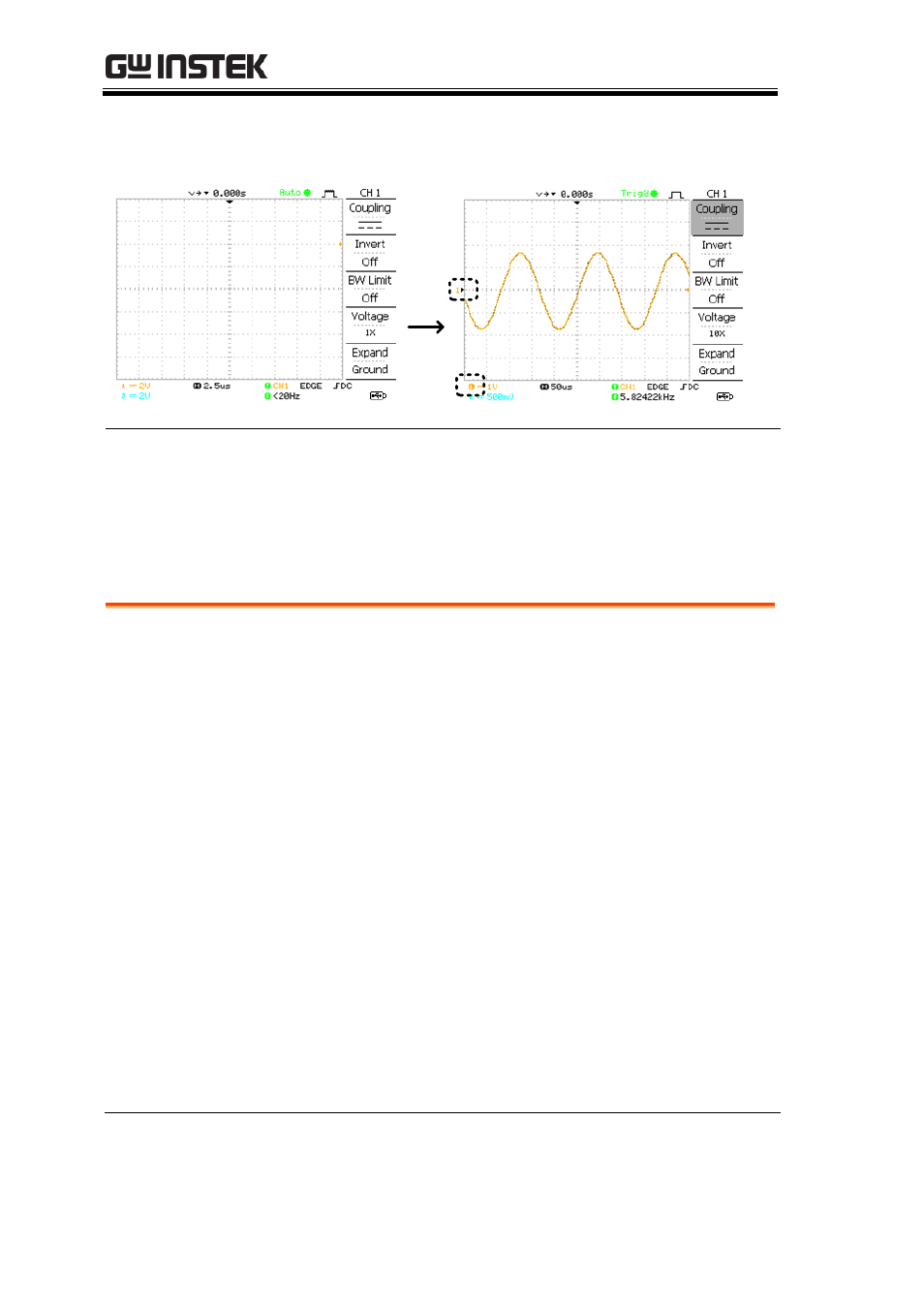

Channel icon
Channel
indicator
Channel 1 off Channel 1 on
De-activating a
channel To de-activate the channel, press the Channel key
twice (once if the channel menu is already
selected).
Using Autoset
Background The Autoset function automatically configures the
panel settings to the best viewing conditions, in the
following way.
 Selecting the horizontal scale
 Positioning the waveform horizontally
 Selecting the vertical scale
 Positioning the waveform vertically
 Selecting the trigger source channel
 Activating the channels
Autoset can be configured into two types of
modes, AC Priority Mode or Fit Screen Mode.
AC Priority mode will scale the waveform to the
screen removing any DC component.
Fit Screen Mode will fit the waveform to the best
scale, including any DC components (offset).
