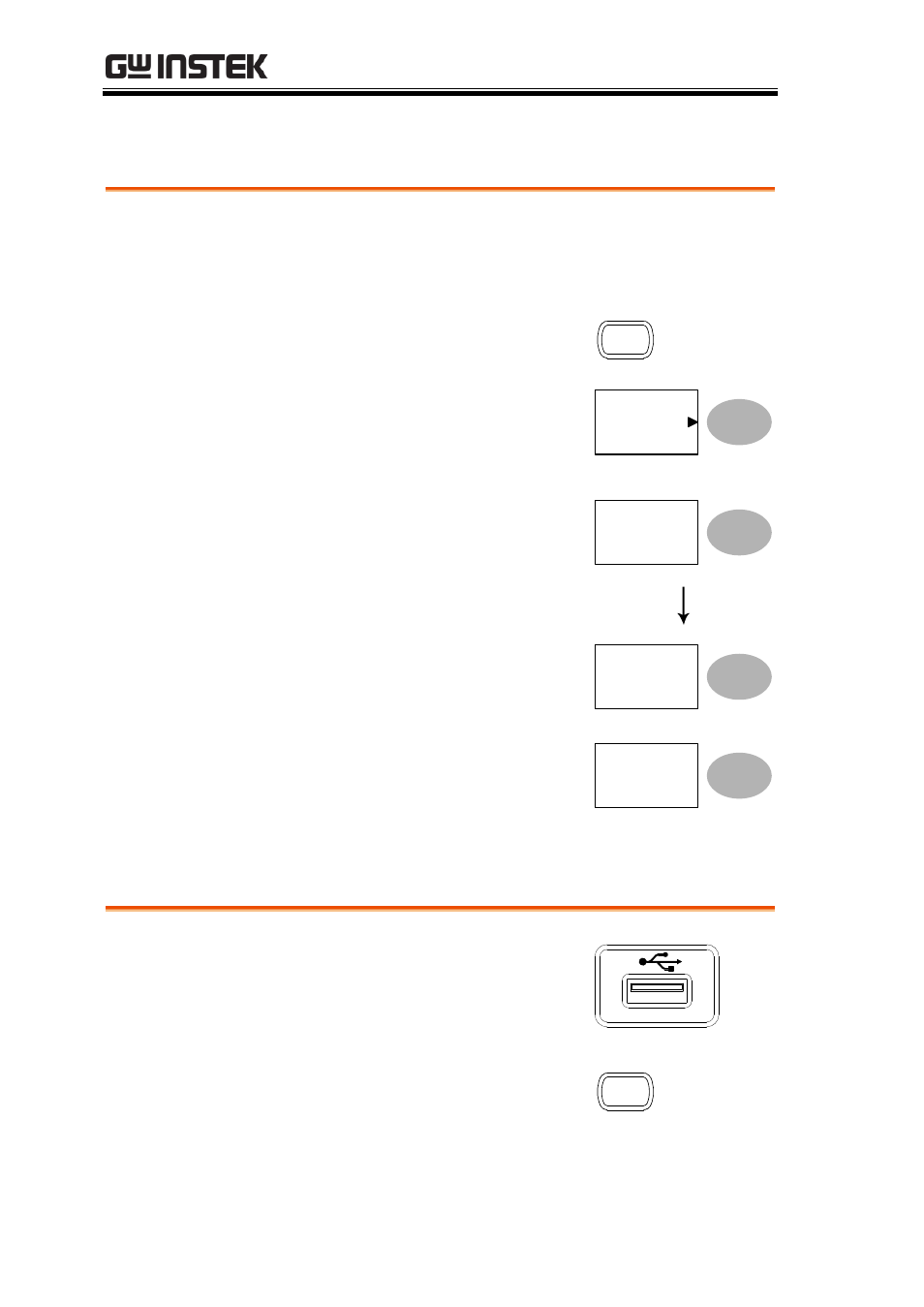

Recalling a reference waveform to the display
Procedure 1. The reference waveform must be stored in
advance. See page 119 for details.
2. Press the Save/Recall key. Save/Recall
3. Press Display Refs. The
reference waveform display
menu appears.
Display
Refs.
4. Select the reference
waveform, Ref A or Ref B,
and press it. The waveform
appears on the display and
the period and amplitude of
the waveform appears in the
menu.
Ref.A Off
Ref.A On
200mV
250uS
5. To clear the waveform from
the display, press RefA/B
again.
Ref.A Off
Recalling panel settings
Procedure 1. (For recalling to USB) Insert
the USB flash drive into the
front panel USB port.
2. Press the Save/Recall key. Save/Recall
