GDS-1000A-U Series User Manual
58

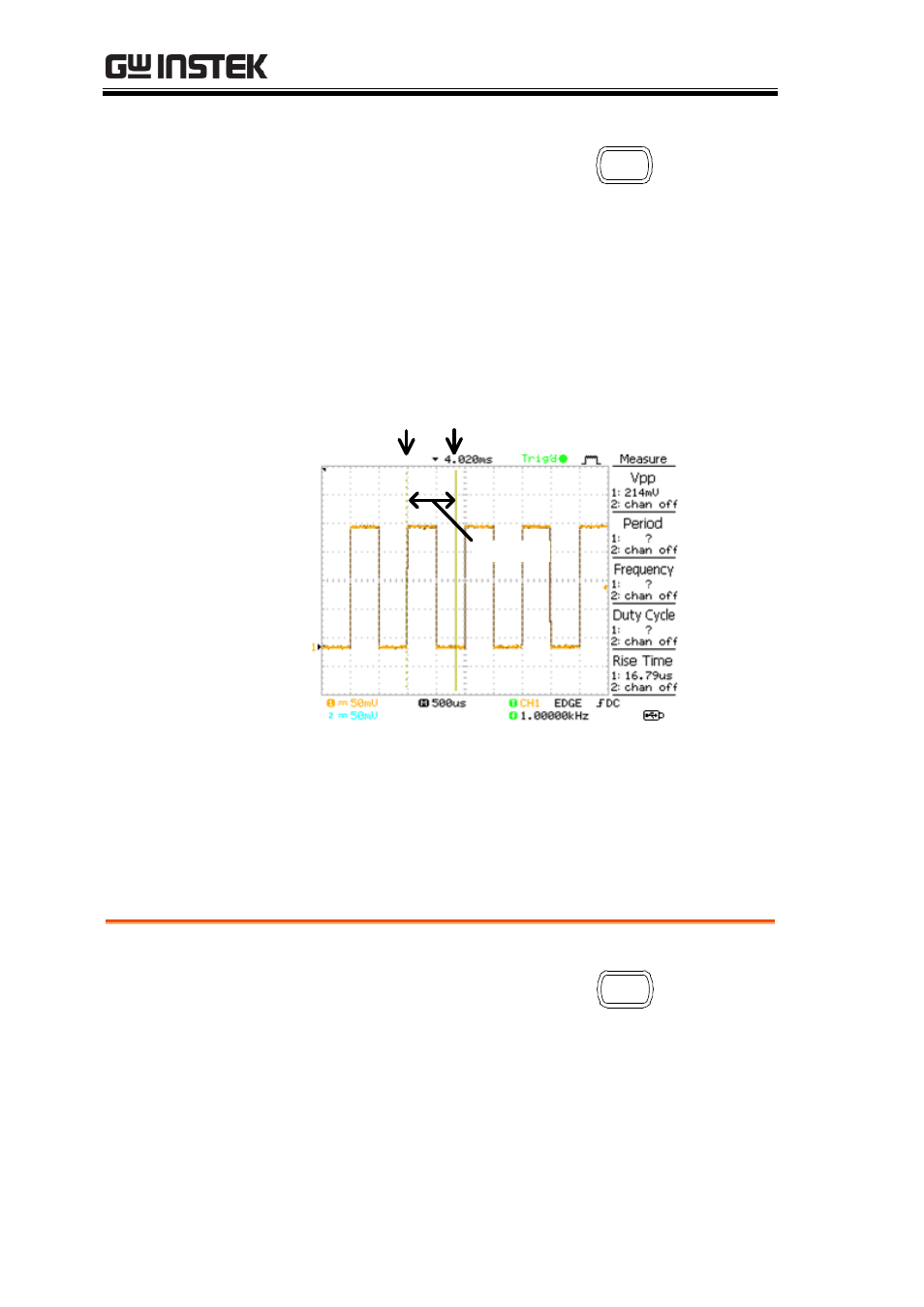

2. Press the Measure key. Measure
3. The measurement results appear on the menu
bar, constantly updated. All measurements are
derived from the cursor positions. See
Automatically measuring the input signals for
more details (page 58).
X
1
X
2
Horizontal Cursor
Gating
Turn gating off 4. Turn off cursors to turn off
gated automatic
measurements.
page 61
Automatically measuring the input signals
Viewing the
measurement
result 1. Press the Measure key. Measure
2. The measurement results appear on the menu
bar, constantly updated. 5 measurement slots
(F1 to F5) can be customized.
