GETTING STARTED

17

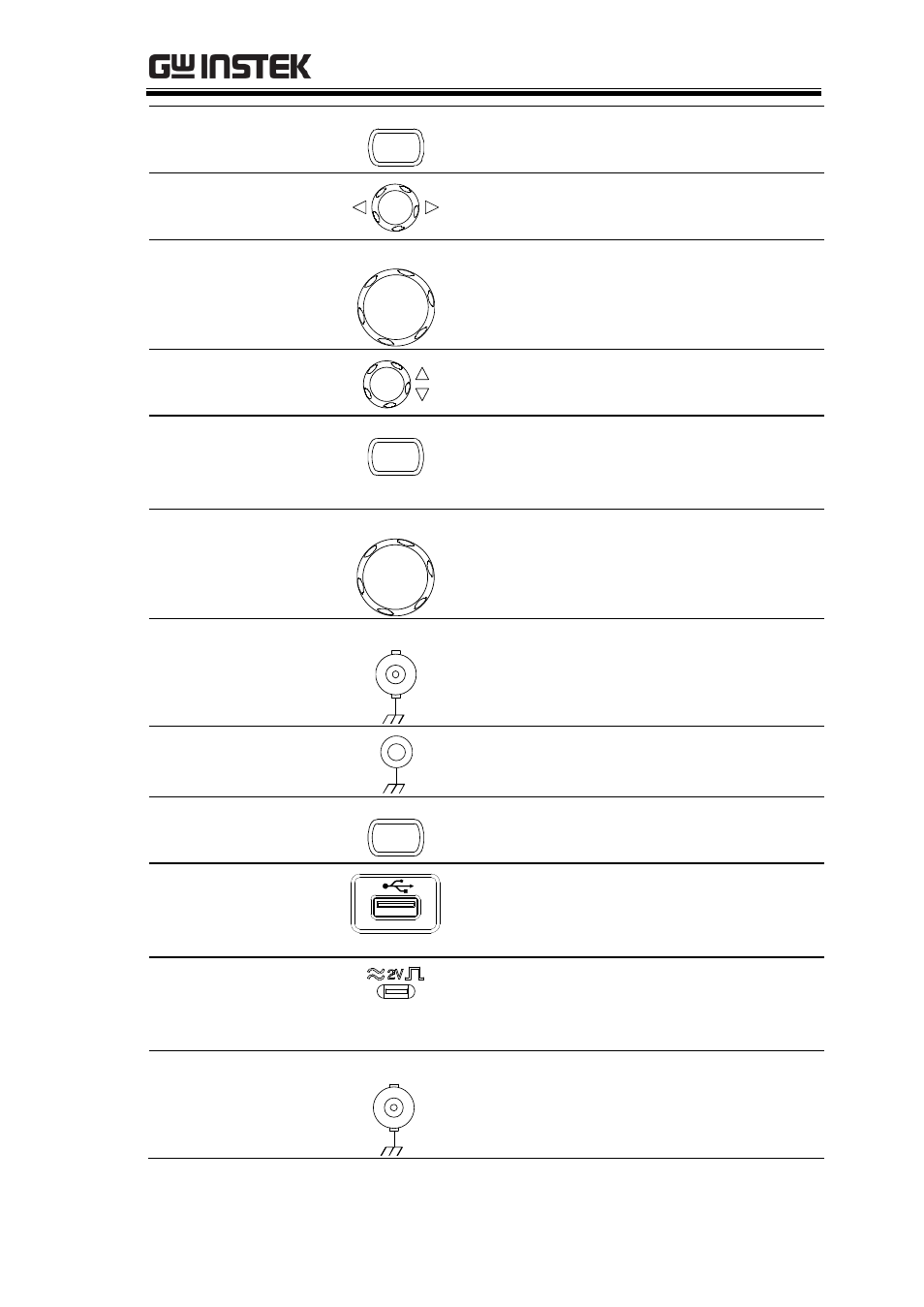

Horizontal menu
key

MENU

Configures the horizontal view
(page 85).

Horizontal
position knob

Moves the waveform horizontally
(page 85).

TIME/DIV knob

TIME/DIV

Selects the horizontal scale (page
85).

Vertical position
knob

Moves the waveform vertically
(page 91).

CH1/CH2 key

CH 1

Configures the vertical scale and
coupling mode for each channel
(page 91).

VOLTS/DIV knob

VOLTS/DIV

Selects the vertical scale (page 91).

Input terminal

CH1

Accepts input signals: 1MΩ±2%
input impedance, BNC terminal.

Ground terminal

Accepts the DUT ground lead to
achieve a common ground.

MATH key

MATH

Performs math operations (page
63).

USB port

Facilitates transferring waveform
data, display images, and panel
settings (page 109).

Probe
compensation
output

Outputs a 2Vp-p, square signal for
compensating the probe (page
132) or demonstration.

External trigger
input

EXT TRIG

Accepts an external trigger signal
(page 96).
