13.1 Introduction
Each of the optical filters available for use with the Monitor, have a
“UA” number printed on them. The “UA” numbers run from UA 0968
– UA 0989 and UA 0936. The Monitor has a carousel wheel on which
relevant optical filters are mounted. There are six mounting holes in
the carousel. Each mounting hole is labelled with one of the following
letters: “A”, “B”, “C”, “D”, “E” and “W” (see Fig.13.1). Before leaving
the factory a special “water” filter is mounted in the position marked
“W” and user-chosen optical filters are mounted in the other
positions of the carousel. If less than 6 optical filters are installed in
the carousel, blank plates are mounted in those positions of the
carousel where no optical filter has been installed.

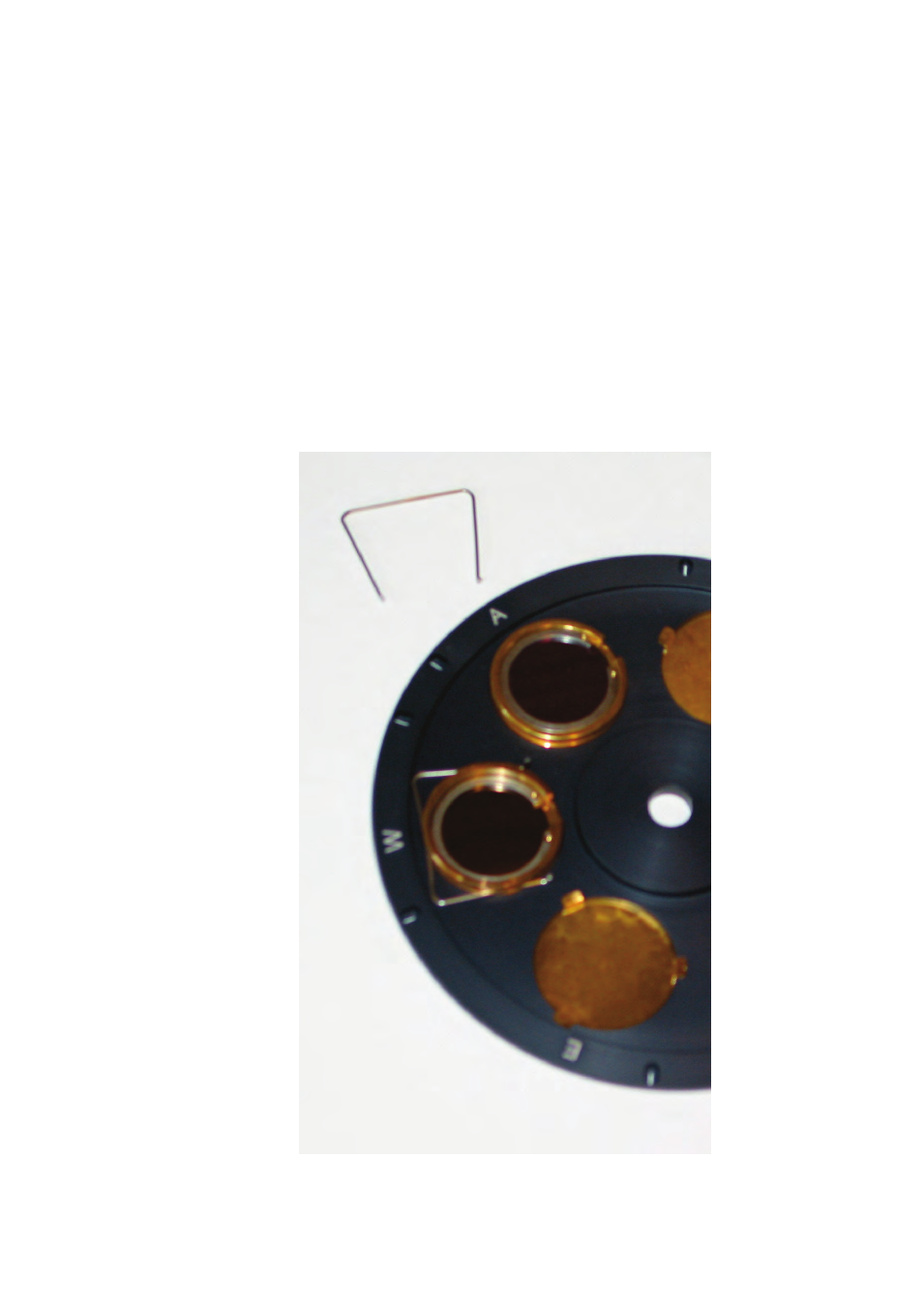

Fig.13.1 The filter carousel in the Monitor
